Application examples and
connection diagrams
7.5.1 Restart interlock and external device monitoring
S3000 Standard in conjunction with relays/contactors; Operating mode: with restart
interlock and external device monitoring.
7.5.2 Restart interlock and external device monitoring with UE10 series
S3000 Standard in combination with UE10-3OS; Operating mode: with restart interlock
and external device monitoring.

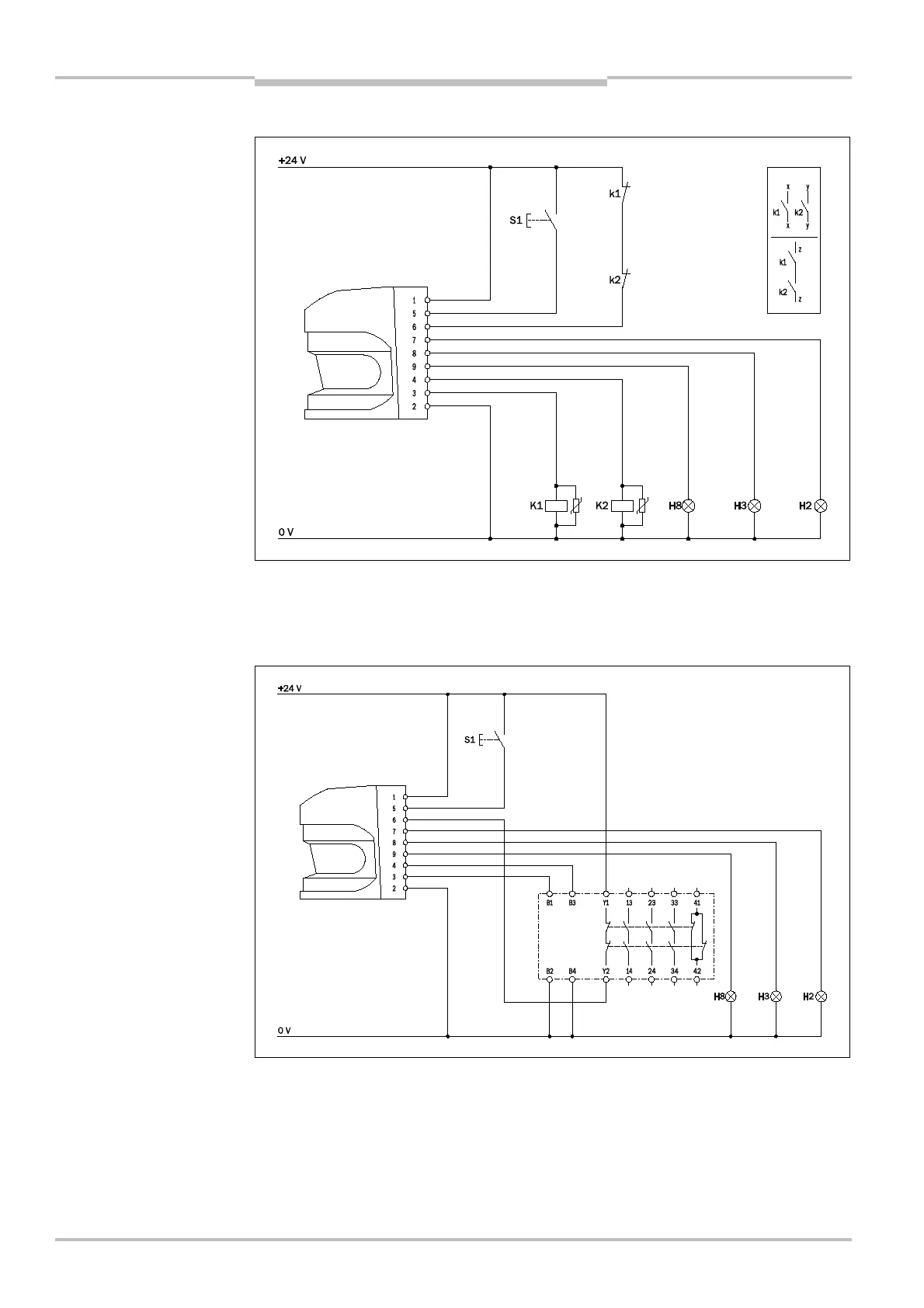

Fig.
76
:
Connection diagram
for restart interlock and
external device monitoring
Fig.
77
:
Connection diagram
for restart interlock and
external device monitoring
using UE10 series
S3000
Standard
S3000
Standard

UE10-3OS
