Electrical installation
6.4 Configuration connection M8× 4 (serial interface)
Pin S3000 PC-side RS-232-D-Sub
1 Reserved Not assigned
2 RxD Pin 3
3 0 V DC (voltage supply) Pin 5
4 TxD Pin 2
 After configuration always remove the connecting cable from the configuration
connection!
 After the configuration of the device has been completed, locate the attached protection
cap to cover the configuration connection.

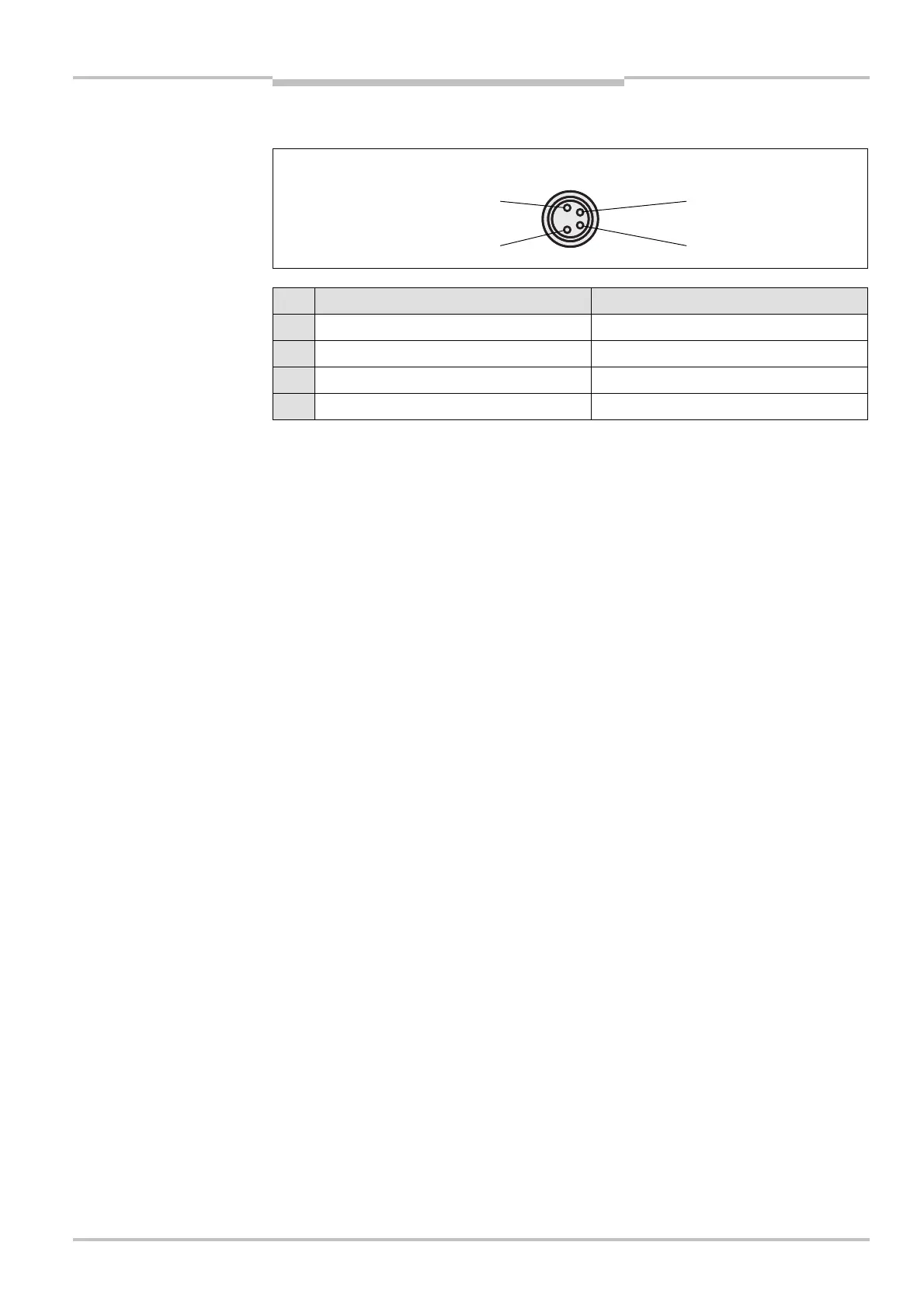

Fig.
64
:
Pin assignment
configuration connection
M8  × 4
Tab.
27
:
Pin assignment
configuration connection
M8  × 4
Notes
3
4
1
2
