Mounting
5.1 Stationary application in horizontal operation
T
his type of protective device is suitable for machines and systems on which, e.g. a
hazardous area is not completely enclosed by a guard.
For a horizontally mounted stationary application determine …
 the protective field size to observe the necessary minimum distance.
 the height of the scan plane.
 the restart behavior.
 measures to protect areas not covered by the S3000.
Once you have defined the protective field size, mark the boundaries of the protective field
on the floor. In this way you will make the protective field boundaries visible for the
operator and ease subsequent testing of the protective function.

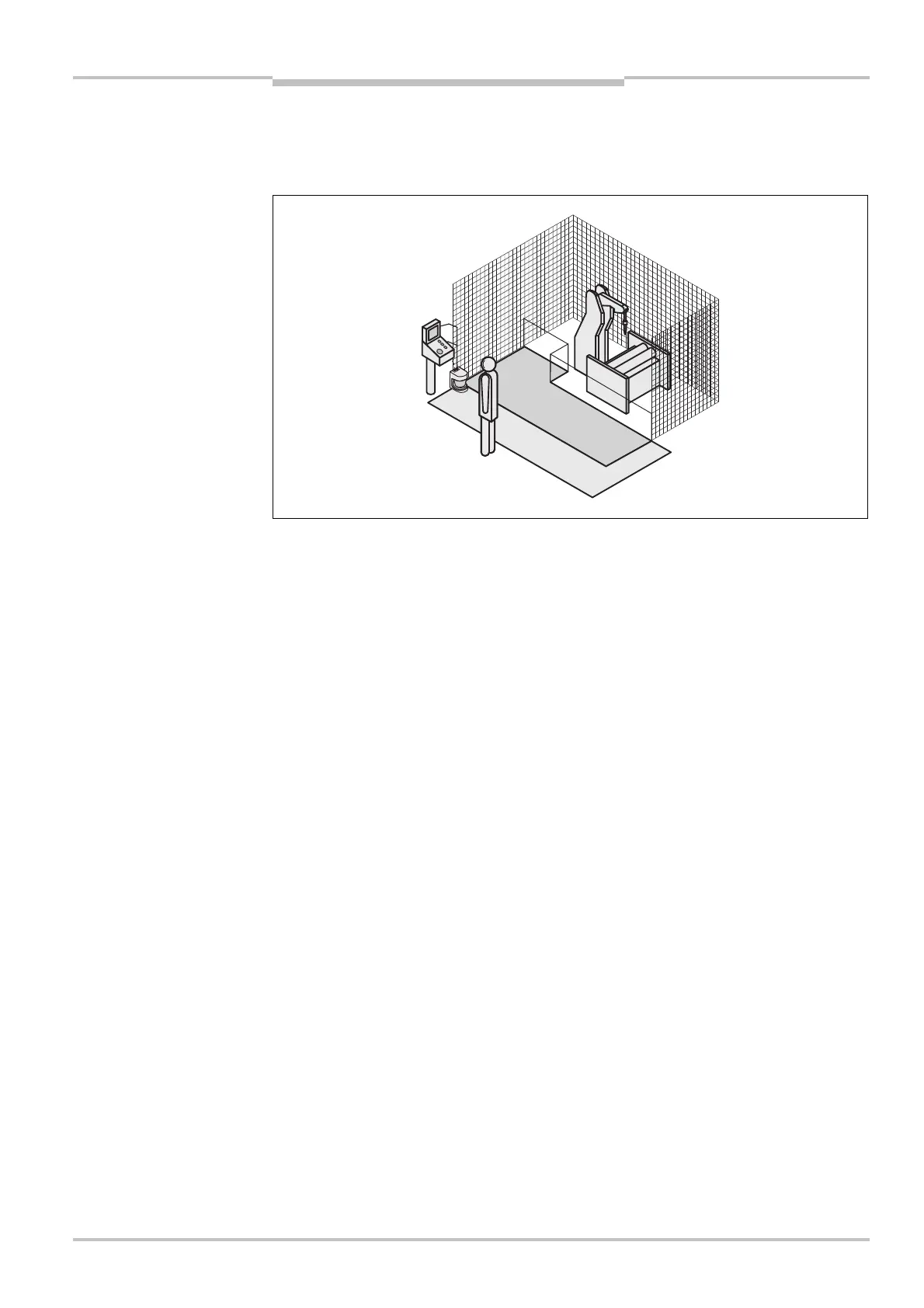

Fig.
30
:
Horizontally mounted
stationary application
