Application examples and
connection diagrams
7.5.5 Protective field switching with static and dynamic inputs
S3000 Professional in conjunction with relays/contactors; Operating mode: without restart
interlock with external device monitoring; static protective field switching using the control
inputs A and B as well as dynamic protective field switching using the incremental
encoders C and D.
7.5.6 Protective field switching between two safety laser scanners with static
inputs
Two S3000 Advanced in an EFI system with relays/contactors; Operating mode: without
restart interlock with external device monitoring; Protective field switching using control
inputs A and B on separate OSSD pairs (simultaneous monitoring).

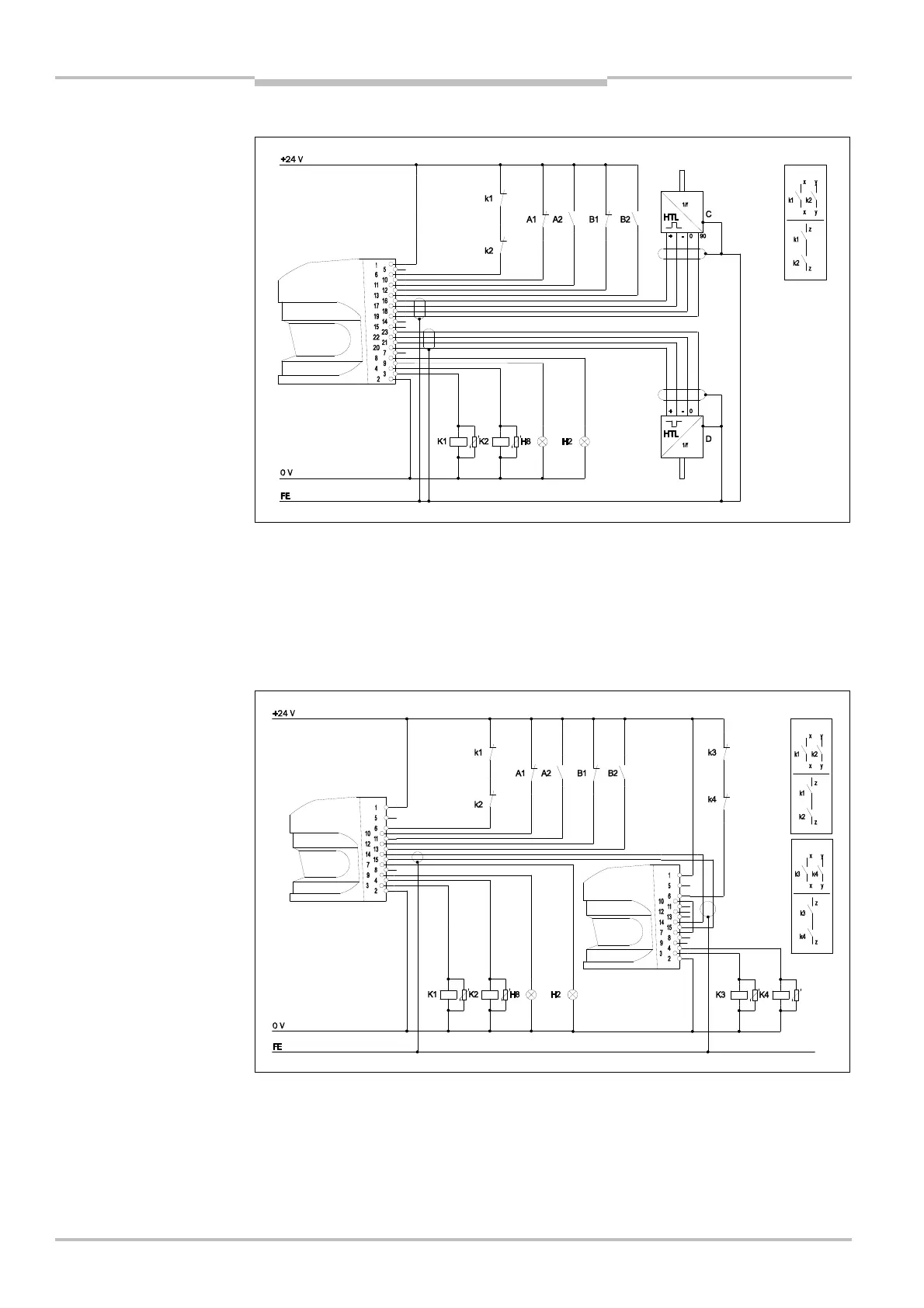

Fig.
80
:
Connection diagram
for protective field switching
using static and dynamic
inputs
Fig.
81
:
Connection diagram
for protective field switching
between two S3000 using
static inputs
S3000
Professional
S3000
Advanced
S3000
Advanced
