Application examples and
connection diagrams
7.3 Applications with the Flexi Soft safety controller
7.3.1 Vehicle monitoring with four safety laser scanners and dynamic protective
field switching using the Flexi Soft safety controller
In the triple field mode, two warning fields can be configured for the front and rear S3000
Expert. Incremental encoders are connected to the front S3000 Expert and supply velocity-
dependent input signals.
The velocity information is transferred to the safety laser scanner on the rear via the
Flexi Soft safety controller using the EFI status message and is used for monitoring case
switching.

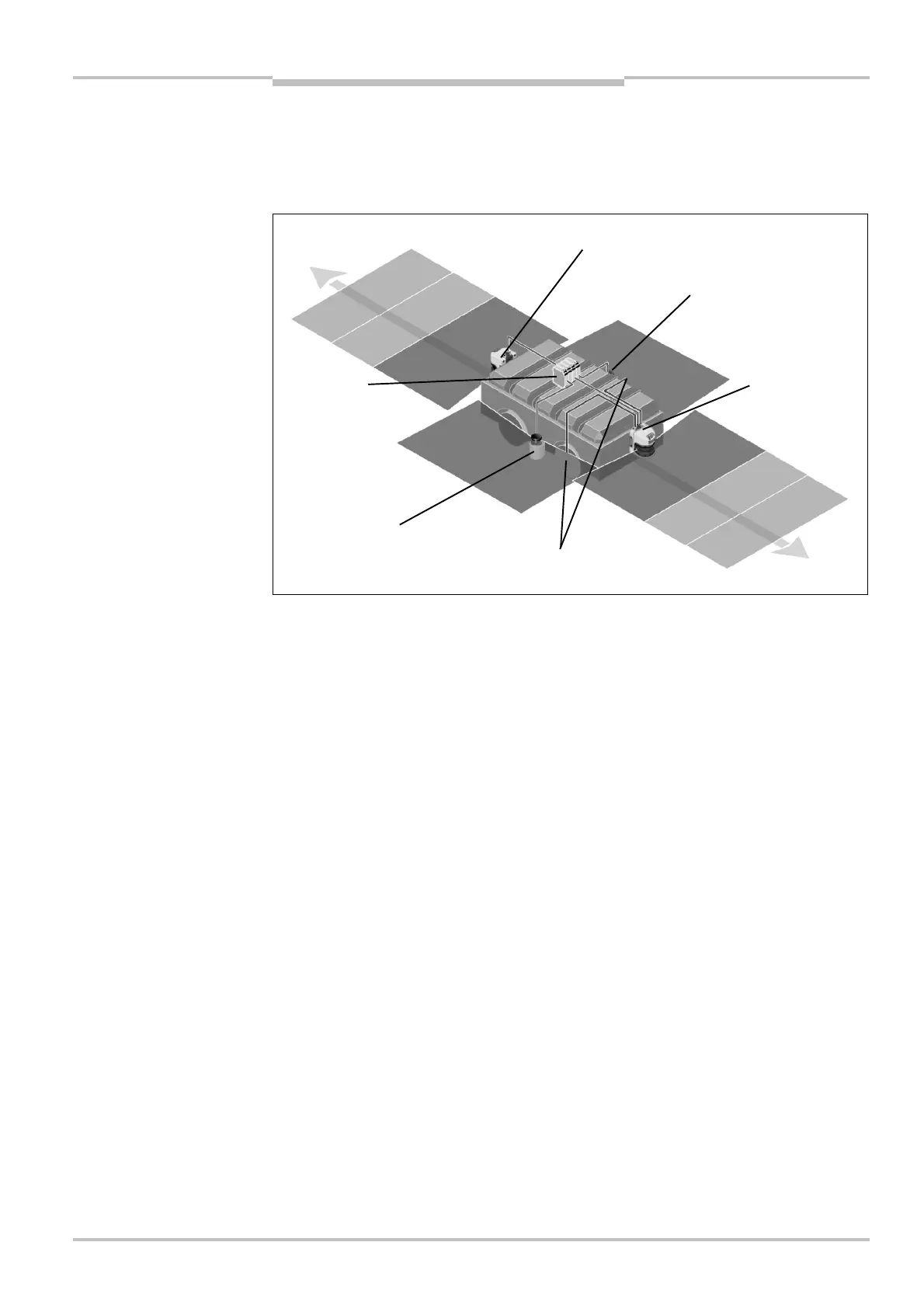

Fig.
73
:
Mobile application
with S3000 Expert and
S300 Professional
S3000
Expert
S300
Professional
S3000
Expert
S300 Professional
Flexi
Soft
Incremental encoder
