SICK S3000 User Manual

Operating instructions Chapter 7
S3000
8009942/WK81/2012-11-28 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 117
Subject to change without notice
Application examples and
connection diagrams
7.5.9 Protective field switching with a Flexi Soft safety controller
One S3000 Expert with one S3000 Remote in an EFI system; Protective field evaluation,
restart interlock and EDM via EFI using a Flexi Soft safety controller. Static protective field
switching using the control inputs S1 to S4 of the Flexi Soft safety controller.
One S3000 Professional with one S300 Professional in an EFI system; Protective field
evaluation, restart interlock and EDM via EFI using a Flexi Soft safety controller. Static
protective field switching via EFI using the control inputs S1 to S4 of the Flexi Soft safety
controller.

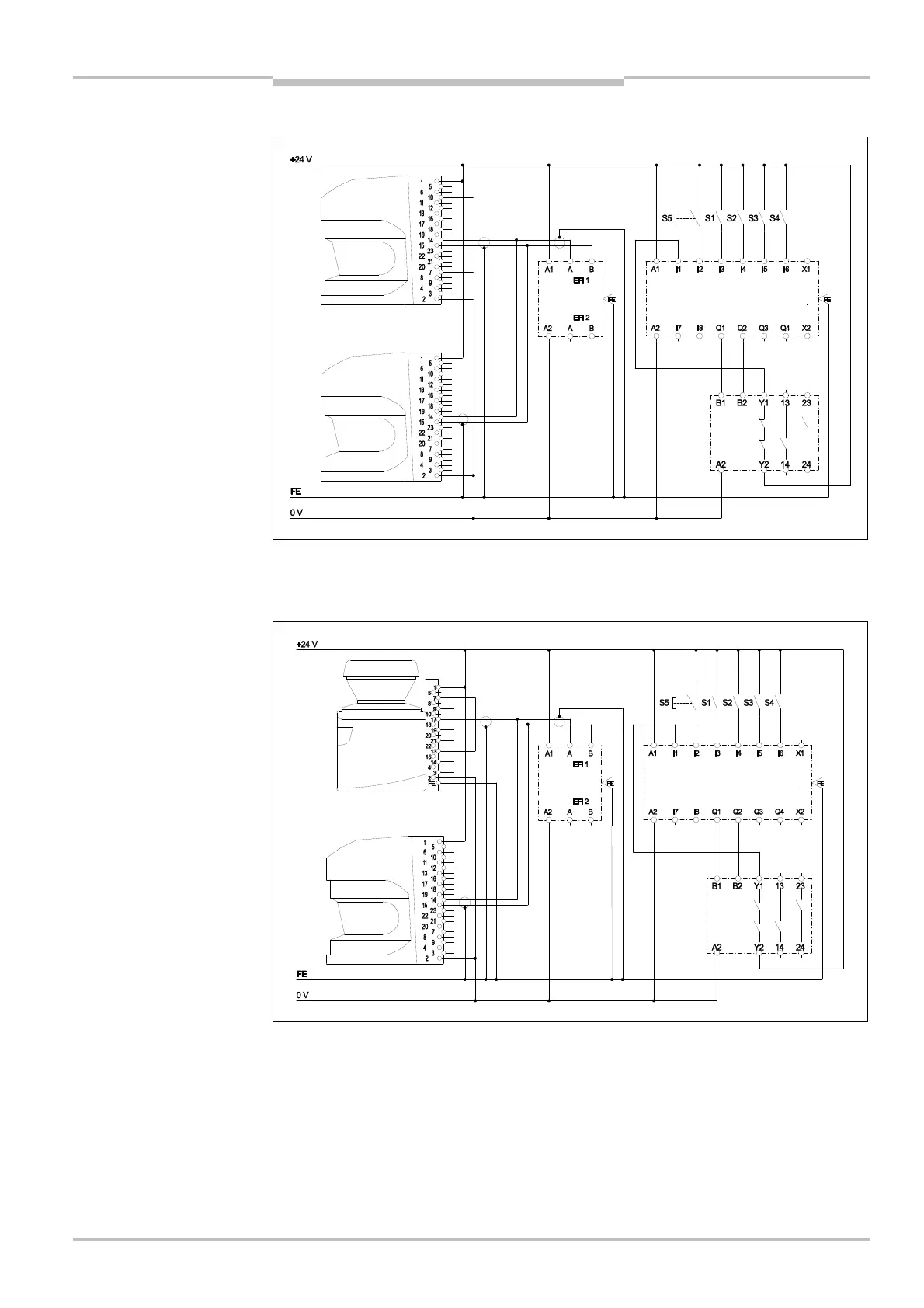

Fig.
86
:
Connection diagram
for protective field switching
between two S3000 using a
Flexi Soft safety controller
Fig.
87
:
Connection diagram:
protective field switching
between S3000 and S300
using a Flexi Soft safety
controller

FX3>XTIO
S3000
Professional
S300
Professional

FX3>CPU1

UE10-
2FG

FX3>XTIO
S3000
Expert
S3000
Remote

FX3>CPU1

UE10-
2FG
