Mounting
Mounting with cover plates
 Fit the cover plates such  that the areas not protected by the safety laser scanner are
completely protected against standing behind.
Mounting in a recess
 Design the recess  to be at least sufficiently deep that it completely covers the
hazardous area not protected by the safety laser scanner (Fig. 45) and such that
standing behind is impossible.
 Prevent crawling beneath the recess by limiting the height of the recess  such that
nobody can crawl beneath.

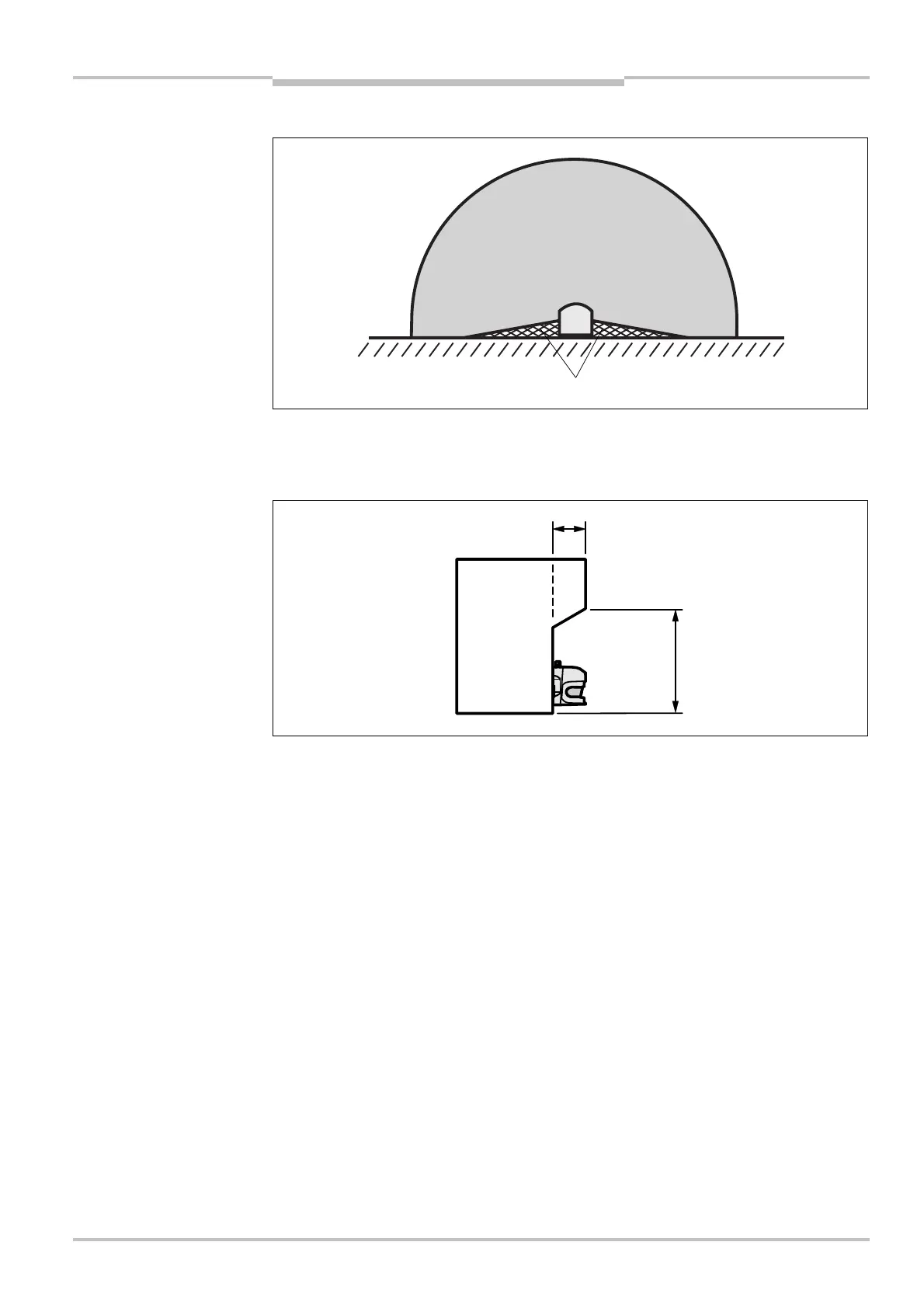

Fig.
45
:
Example of mounting
with cover plates
Fig.
46
:
Form of the recess
