Product description
Sensor heads
The sensor heads differ in the maximum scanning range and the resulting size of the
p
rotective field.
The protective field ranges are the maximum achievable radial distances from the safety
laser scanner. They are achieved in applications with a resolution of 70 mm and coarser. If
rectangular protective fields are configured, then the maximum protective field range is
reached in the corners of the protective field.
I/O modules
Five I/O modules are available for the S3000. With the aid of these I/O modules, the
S3000 covers the various applications.

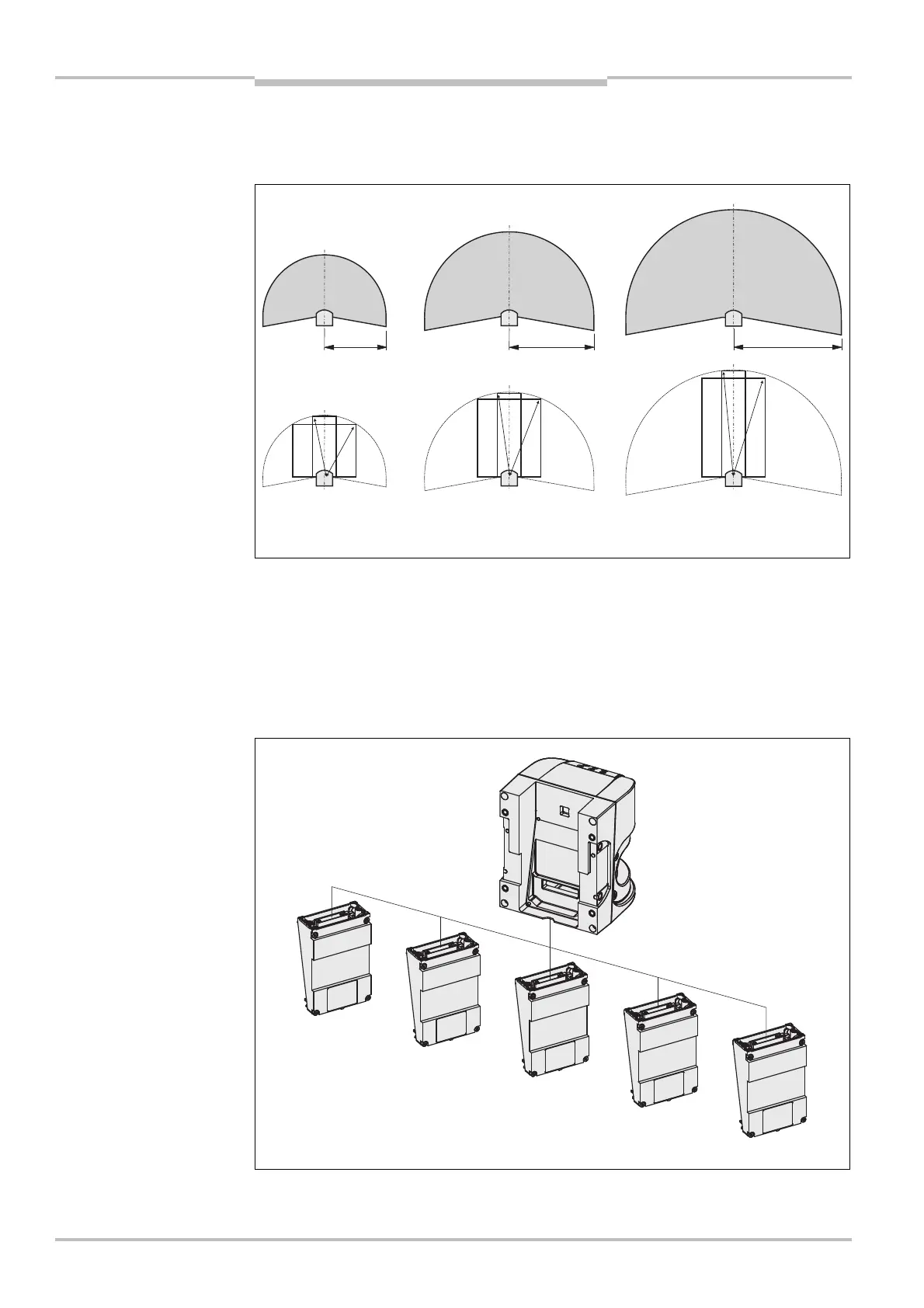

Fig.
8
:
Protective field ranges
of the sensor heads
Note
Fig.
9
:
Available I/O modules
Standard
Advanced
Professional
Remote
Expert
Long Range
sensor head
Medium Range
sensor head
Max. 7
m
Max. 5.5
m
Short Range
sensor head
Max. 4
m
