SICK S3000 User Manual

Chapter 4 Operating instructions
S3000
56 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/WK81/2012-11-28
Subject to change without notice
Configurable functions
Vertical operation
In vertical operation (for access protection and hazardous point protection) according to
C
LC/TS 61496<3 you must always configure the protective fields used with the contour as
reference function. In addition the total response time of the S3000 is not allowed to
exceed 90 ms.
Use lateral, vertical boundaries of the opening (e.g. door frame) and the floor as reference.
If in this case the position of the S3000 is changed in one or more planes, the distance to
the reference changes and the S3000 switches its OSSDs to the OFF state.

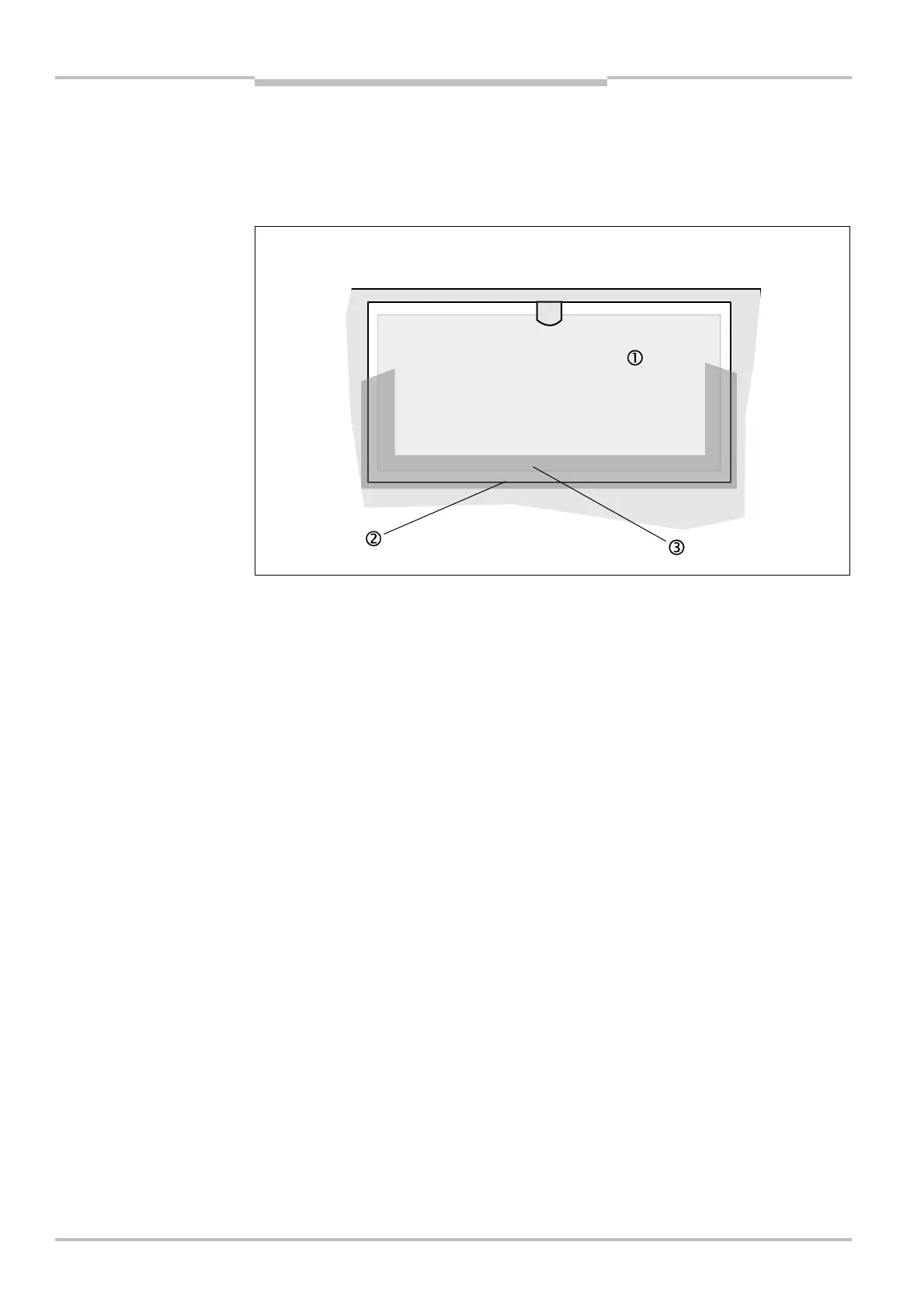

Fig.
25
:
Contour as reference
for vertical operation
 Protective field
 Contours of the machine
opening
 Contour segment
