[ausloese-rueckfall-kennli-amz-iec-norm-stark-170502-wlk, 1, en_US]

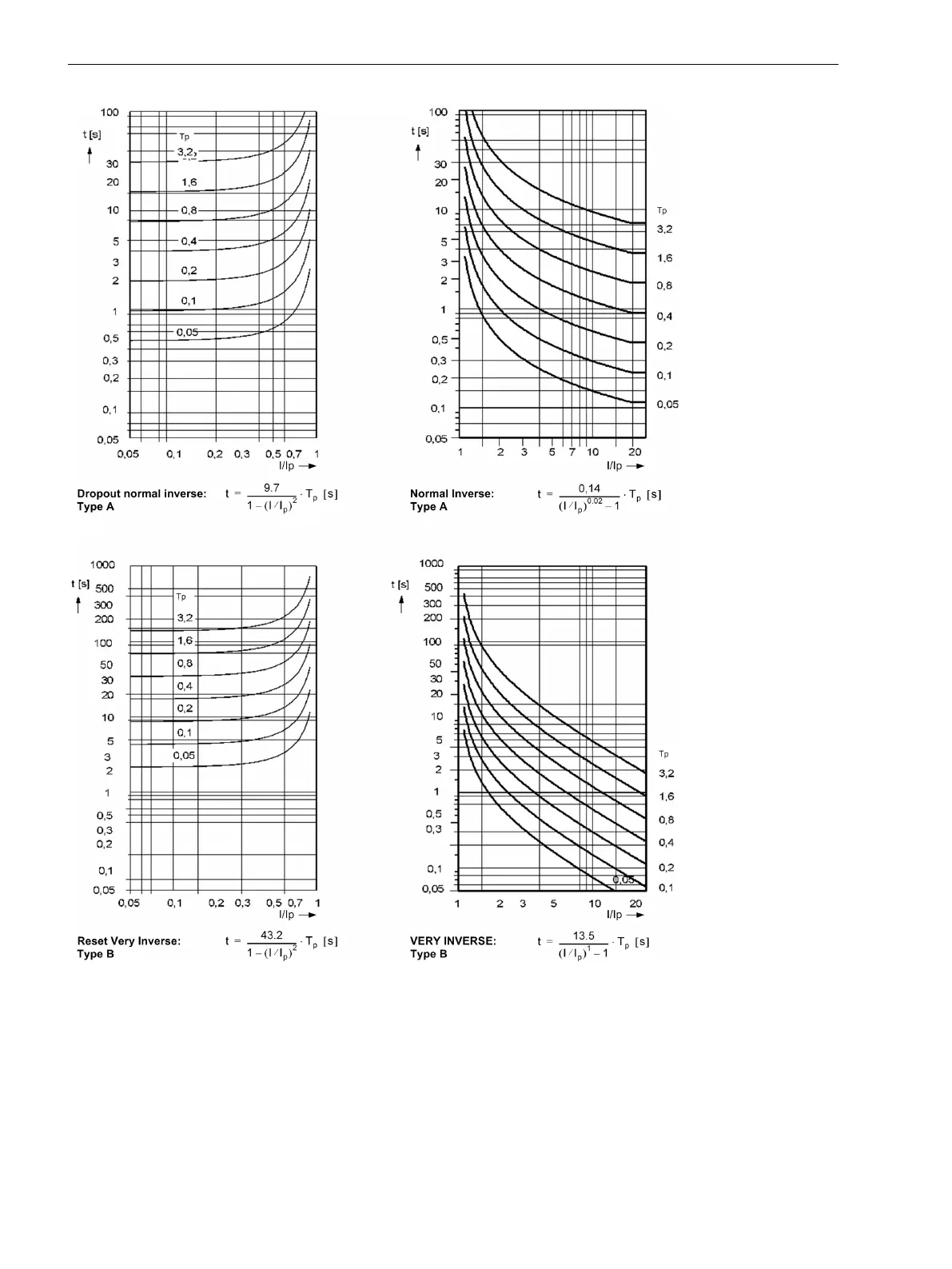

Figure 4-1
Dropout time and trip time curves of the inverse time overcurrent protection, acc. to IEC
Technical Data
4.3 Inverse-Time Overcurrent Protection
514 SIPROTEC Compact, 7SC80, Manual
E50417-G1140-C486-A8, Edition 07.2017
