[ausl-rueckfall-kennl-amz-iec-extrem-langzeit-170502-wlk, 1, en_US]

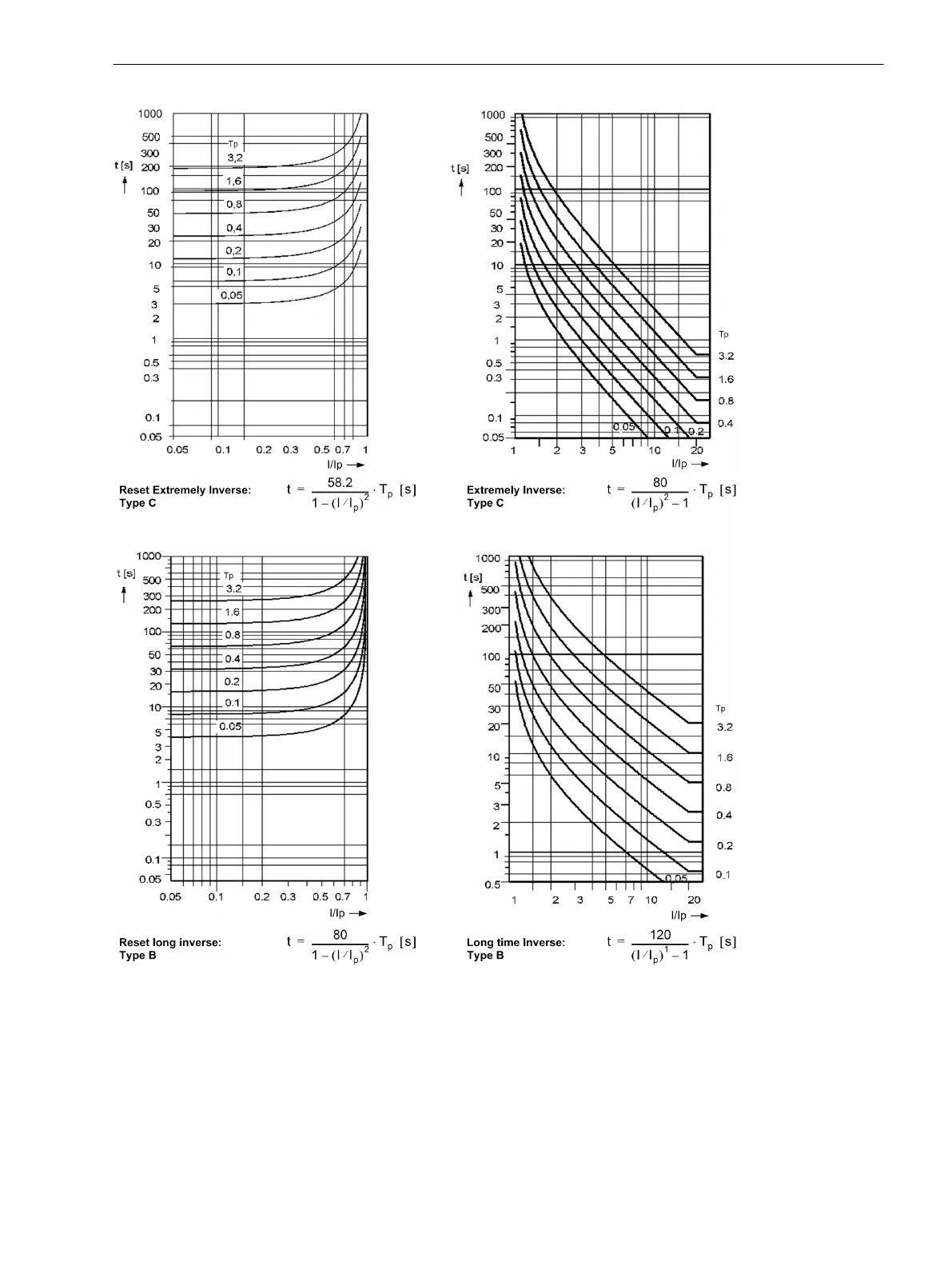

Figure 4-2
Dropout time and trip time curves of the inverse time overcurrent protection, acc. to IEC
Technical Data
4.3 Inverse-Time Overcurrent Protection
SIPROTEC Compact, 7SC80, Manual 515
E50417-G1140-C486-A8, Edition 07.2017
