Mounting and installation of fire terminal (Touch)
Installation in rear panel (FT2080) FHA2039
7
337 |
Building Technologies
Wiring the fire terminal (Touch)
When installing in a desktop that is thicker than 33 mm, the cables must be routed
through the rectangular openings of the rear panel (FT2080), and not through the
round cable breakthroughs.

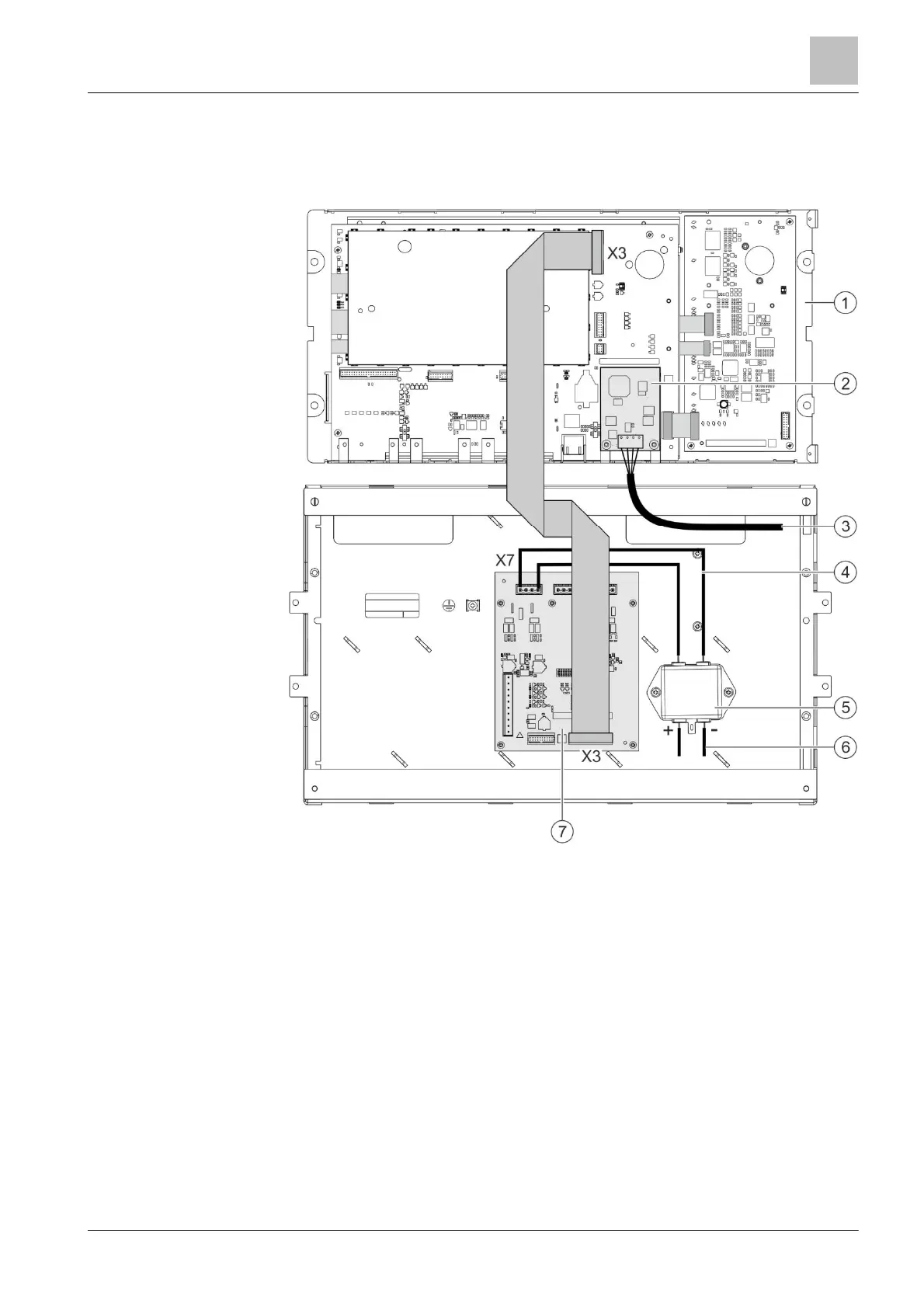

Figure 195: Wiring view of the fire terminal (Touch) in the rear cover (FT2080)
1 Fire terminal (Touch) FT2080
2 Network module (FCnet/SAFEDLINK) FN2001
3 FCnet connection cable
4 Prefabricated cable for supply connection to X7
5 EMC filter
6 Input for DC 24 V system supply to EMC filter
7 Fire terminal board FTI2001
