• Section3.3.4, “Viewing and Clearing Service Flow Statistics”
Section3.3.1
Viewing General Statistics
To view general statistics, navigate to Statistics. The General Statistics screen appears.

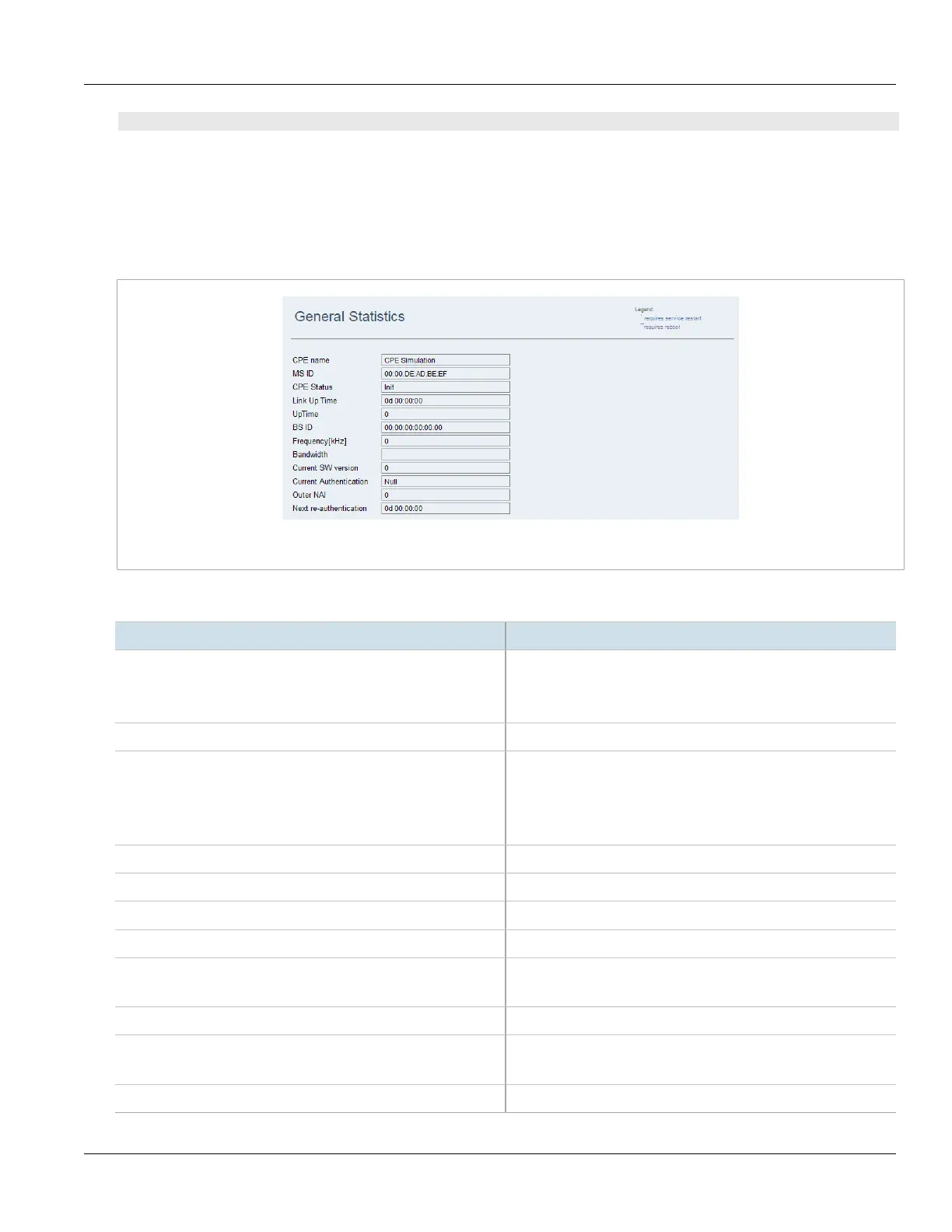

Figure12:General Statistics Screen
The table provides the following information:
Parameter Description
CPE Name Displays the name of the device. This name identifies the device on
the base station and in the base station management interface. The
name is set on the System Functions screen. For more information,
refer to Section4.1, “Configuring the Device Name” .
MS ID Displays the mobile station MAC address.
CPE Status Synopsis: { Init, DL Synchronization, Handover DL acquisition, UL
Acquisition, Ranging, Handover ranging, Capabilities negotiation,
Authorization, Registration, DHCP, TOD, TFTP, Operational, Sleep,
IDLE, Aborted }
Displays the device's current status.
Link Up Time Displays the time since the device became operational.
Up Time Displays the time since the last device start-up.
BS ID Displays the base station ID.
Frequency [kHz] Displays the device operating frequency, in kilohertz.
Bandwidth Synopsis: { 3.5MHz, 5MHz, 7MHz, 10MHz }
Displays device bandwidth setting.
Current SW version Displays the device's current software version number.
Current Authentication Synopsis: { Null, EAP-TTLS, EAP-TLS }
Displays the device's current authentication mode.
Outer NAI Displays the outer network access identifier.
