Viewing and Clearing Network Statistics 21
Parameter Description
Displays the downlink Modulation and Coding Scheme.
Distance from BS Displays the estimated distance of the SS from the base station, in meters.
Received bytes Displays the amount of data received by the SS, in bytes.
Received packets Displays the number of packets received by the SS.
Sent bytes Displays amount of data sent by the SS, in bytes.
Sent packets Displays the number of packets sent by the SS.
DL rate [Kb/sec] Displays the downlink rate, in kilobits per second.
UL rate [Kb/sec] Displays the uplink rate, in kilobits per second.
3. To clear the RF Statistics, click Clear statistics.
Section3.3.3
Viewing and Clearing Network Statistics
To view LAN and RF network information and statistics, and clear the network statistics, do the following:
1. Navigate to Statistics» Network. The Network screen appears.

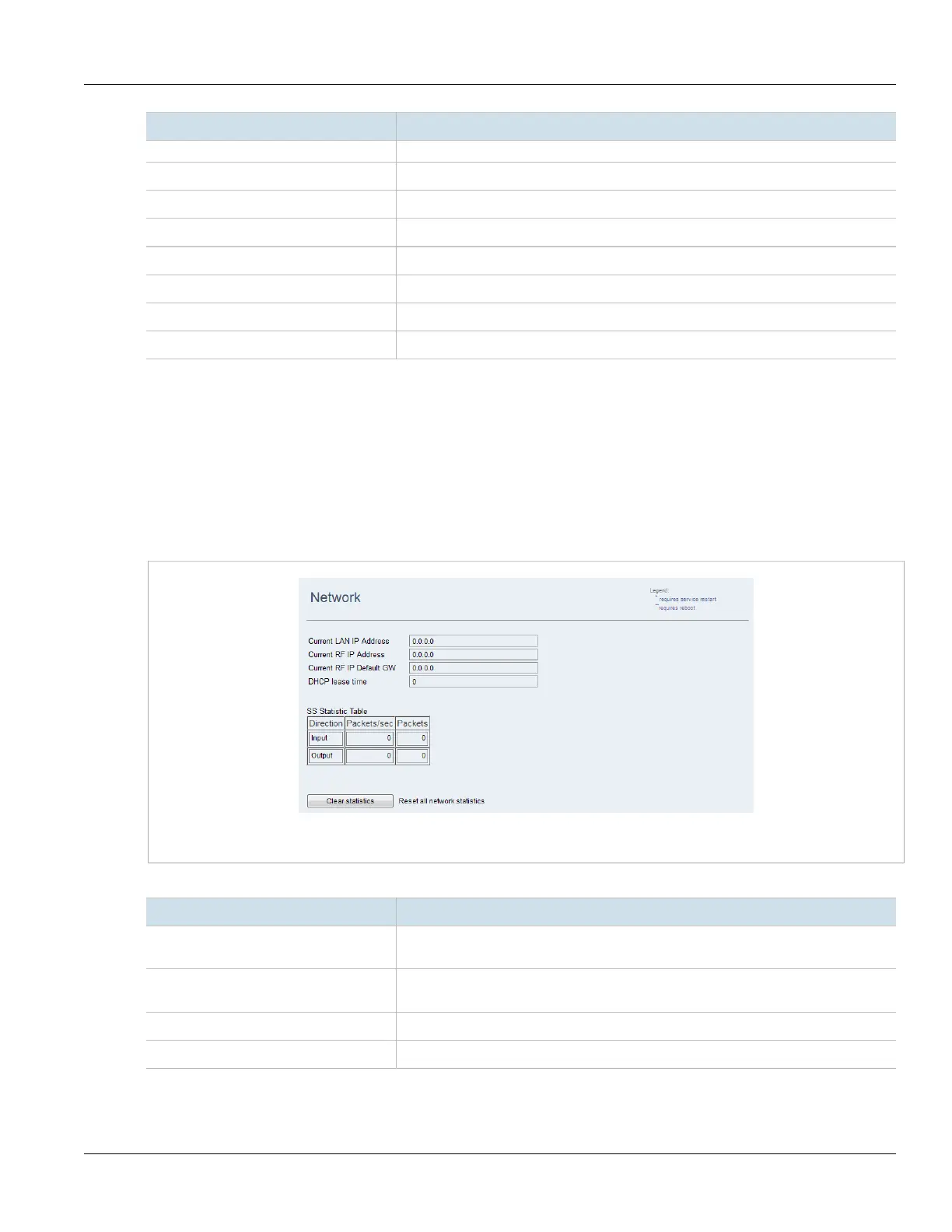

Figure14:Network Screen
2. View the LAN and RF network information:
Parameter Description
Current LAN IP Address Displays the current SS LAN IP address. Use the LAN IP address when you access the SS
through a direct connection to its physical Ethernet port.
Current RF IP Address Displays the current SS RF IP address. Use the RF IP address when you access the SS
through the RF network.
RF IP Default GW Displays the SS default gateway on the RF network.
DHCP Lease Time Displays the SS default DHCP lease time.
3. View the network statistics in the SS Statistic Table:
