86 Configuring the MAC Address Table

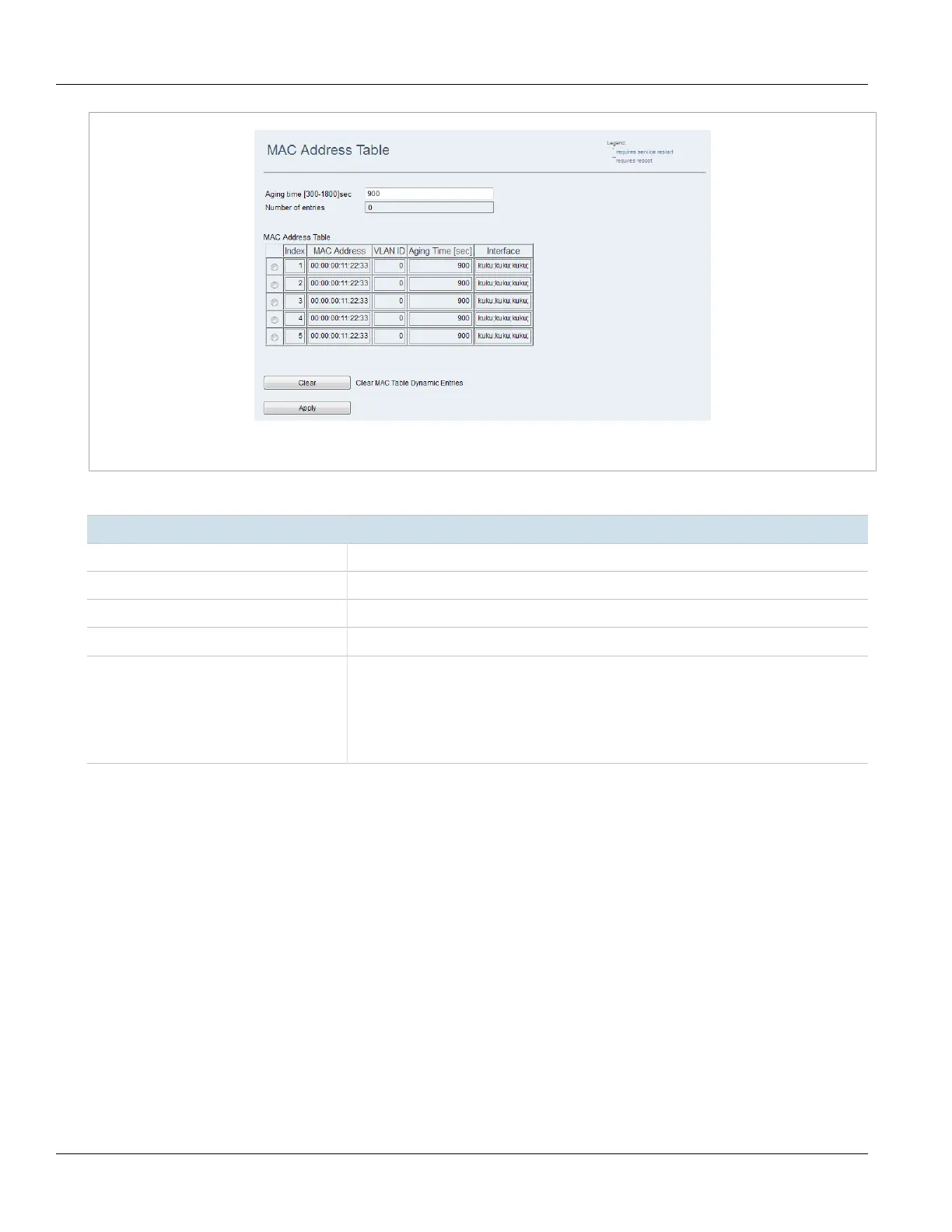

Figure81:MAC Address Table Screen
The table provides the following information:
Parameter Description
Index Displays a unique identifier for the table entry.
MAC Address Displays the MAC address of a local or remote node.
VLAN ID Displays the identifier for the Virtual LAN on which the node is active.
Aging Time [sec] Displays the time, in seconds, until the entry will be removed from the table.
Interface Displays the interface from which the SS learned the MAC address.
Possible values include:
• Network — the base station acquired the address from the Ethernet network interface
• RF — the base station acquired the address from the RF interface
• Local — indicates the MAC address of the base station itself
Section5.17.2
Configuring the MAC Address Table
The MAC Address Table displays the MAC addresses learned by the SS. To configure the MAC address aging time,
do the following:
1. Navigate to Network» Ethernet Settings» MAC Address Table. The MAC Address Table screen appears.
