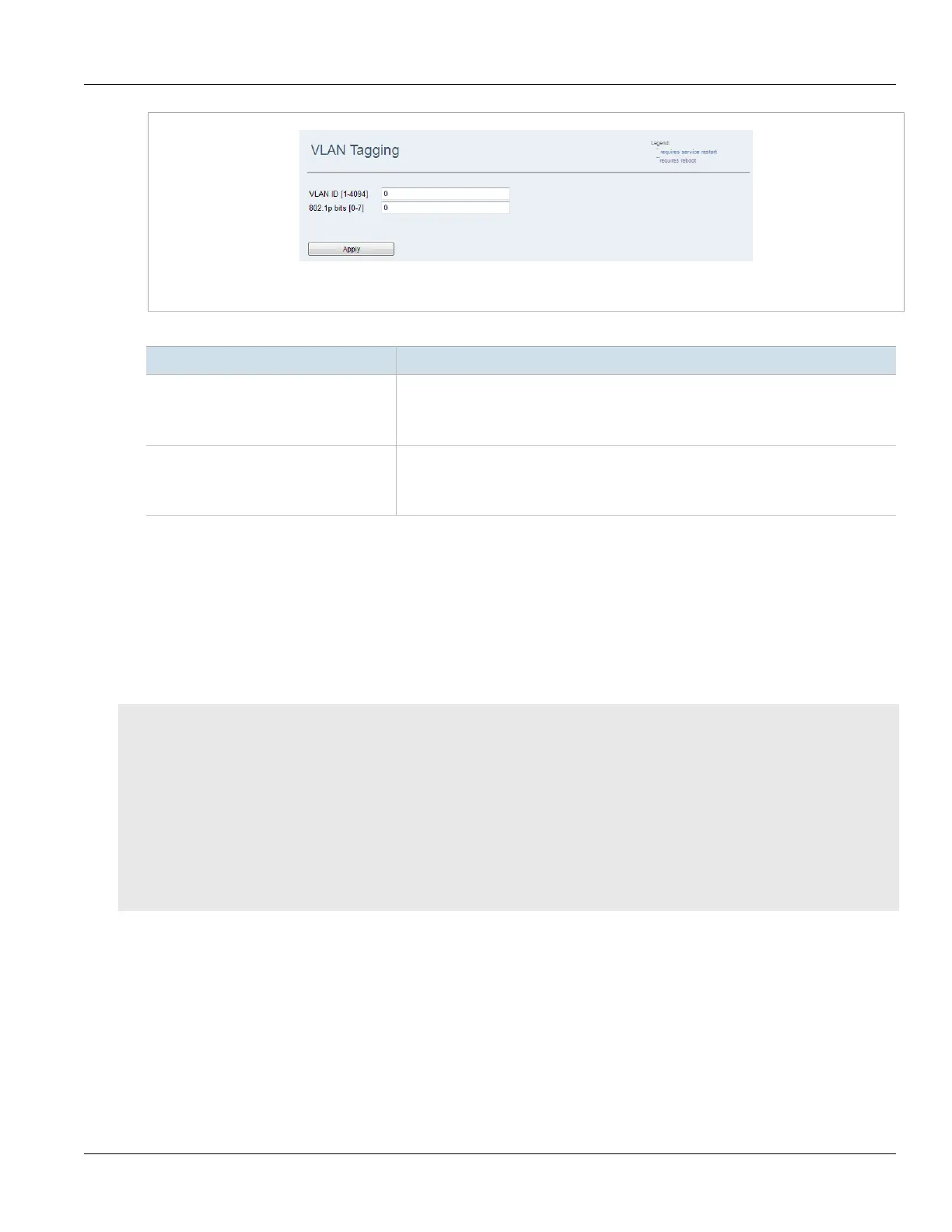

Figure80:VLAN Tagging Screen
2. Configure the following parameter(s) as required:
Parameter Description
VLAN ID [1-4094] Synopsis: { A number in the range of 1 to 4094 }
Displays an identifier for the VLAN.
Default: 0
802.1p bits [0-7] Synopsis: { A number in the range of 0 to 7 }
Sets the 802.1p priority value for the VLAN.
Default: 0
3. Click Apply.
Section5.17
Managing MAC Addresses
This section describes how to configure and manage MAC addresses.
CONTENTS
• Section5.17.1, “Viewing the MAC Address Table”
• Section5.17.2, “Configuring the MAC Address Table”
• Section5.17.3, “Clearing the MAC Address Table”
• Section5.17.4, “Enabling/Disabling Mini-Jumbo Frames”
• Section5.17.5, “Configuring the Access List”
• Section5.17.6, “Adding Entries to the Access List”
• Section5.17.7, “Deleting Entries from the Access List”
Section5.17.1
Viewing the MAC Address Table
The MAC Address Table displays the MAC addresses learned by the SS. To view the MAC Address Table, navigate to
Network» Ethernet Settings» MAC Address Table. The MAC Address Table screen appears.
To Next Page
