Configuring the Management VLAN 83

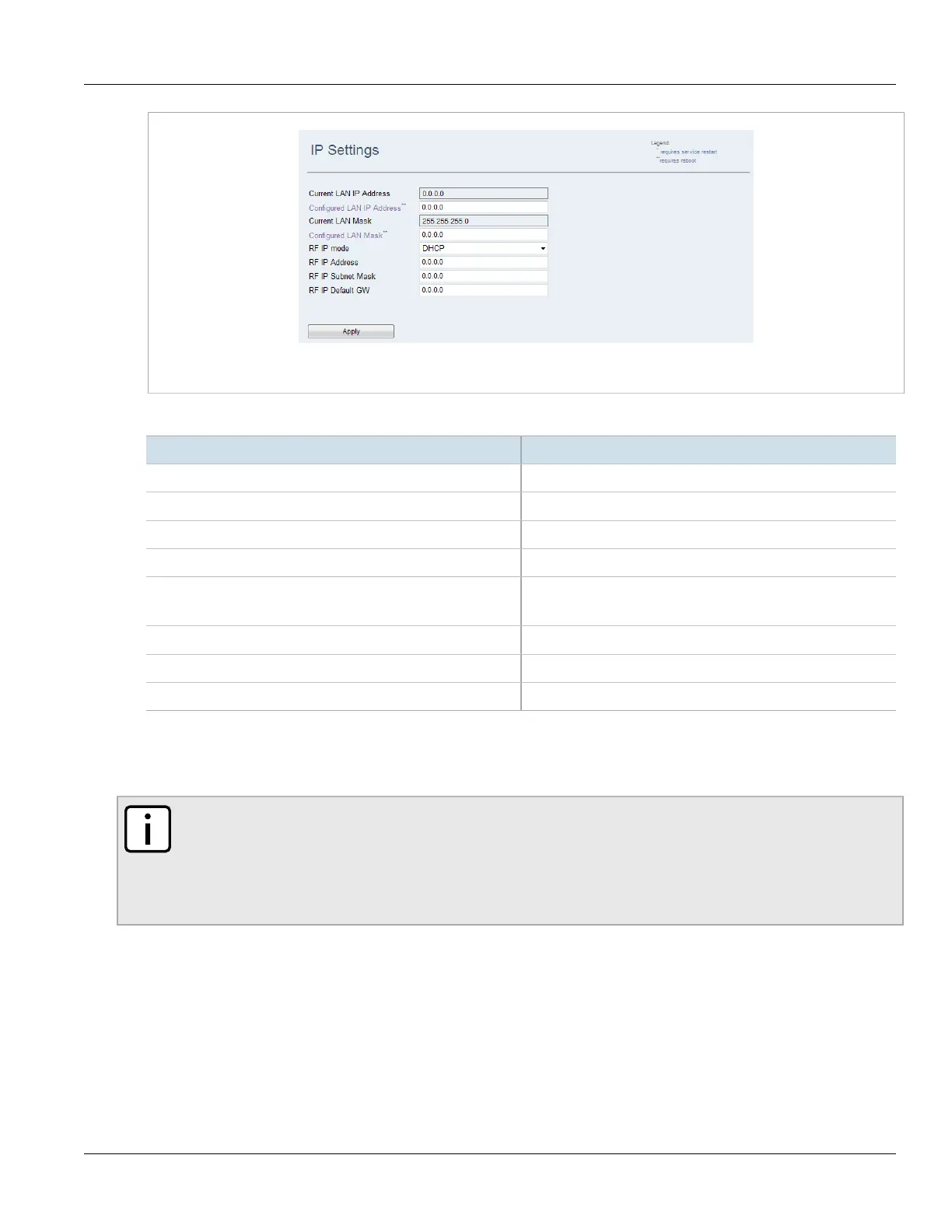

Figure78:IP Settings Screen
2. Configure the following parameter(s) as required:
Parameter Description
Current LAN IP Address Displays the currently configured SS LAN IP address.
Configured LAN IP Address The LAN IP address, an IPv4 address.
Current LAN Mask Displays the currently configured LAN netmask.
Configured LAN Mask The LAN mask, a dotted-decimal mask.
RF IP mode Synopsis: { Static, DHCP }
Displays the RF IP mode.
RF IP Address Displays the RF IP address.
RF IP Subnet Mask Displays the RF IP subnet mask.
RF IP Default GW Displays the RF default gateway.
3. Click Apply.
4. If you changed the value in the Configured LAN IP Address or Configured LAN Mask parameters, reboot the
device. For more information, refer to Section4.5, “Rebooting the Device” .
NOTE
The DHCP client within the device does not release its IP address when the lease time is expired and it
does not update itself with the new IP address allocated by the server. Instead, it keeps the previous
IP address. Using a pre-provisioned IP address is preferable as a pre-provisioned IP address does not
require renewing. If not using a pre-provisioned IP, de-register the SS from the base station to get the
new IP address configured at the DHCP server.
Section5.15
Configuring the Management VLAN
Management VLAN options include the VLAN number and the 802.1p priority value. Outgoing management
frames are tagged with the configured VLAN number and priority. Incoming management frames must be tagged
with the same values, or the SS drops the incoming frames.
