4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
140 System Manual, 09/2019, C79000-G8976-C242-10
4.5.4.2 Characteristics
SCALANCE TAP104 main features are as follows:
● 2x RJ45 ports with additional securing collar for connecting the IE FC RJ45 Plug 180
● 2x electrical TAP ports
● Device diagnostics at the device via LED: Power and data traffic at TAP port
● Cable length of 100 m between the two active network nodes
● Cable length max. 10 m at TAP ports
4.5.4.3 Interfaces
Device
Twisted pair
Network connections 10/100 Mbps
TAP connections
SCALANCE TAP104 2x RJ45 2x RJ45
4.5.4.4 Article numbers
Device
Description
Article number
SCALANCE TAP104 2 x RJ45 ports with securing collars,
10/100 Mbps
2x RJ45 TAP ports
6GK5104-0BA00-1SA2
4.5.5 SCALANCE X-000
4.5.5.1 Description

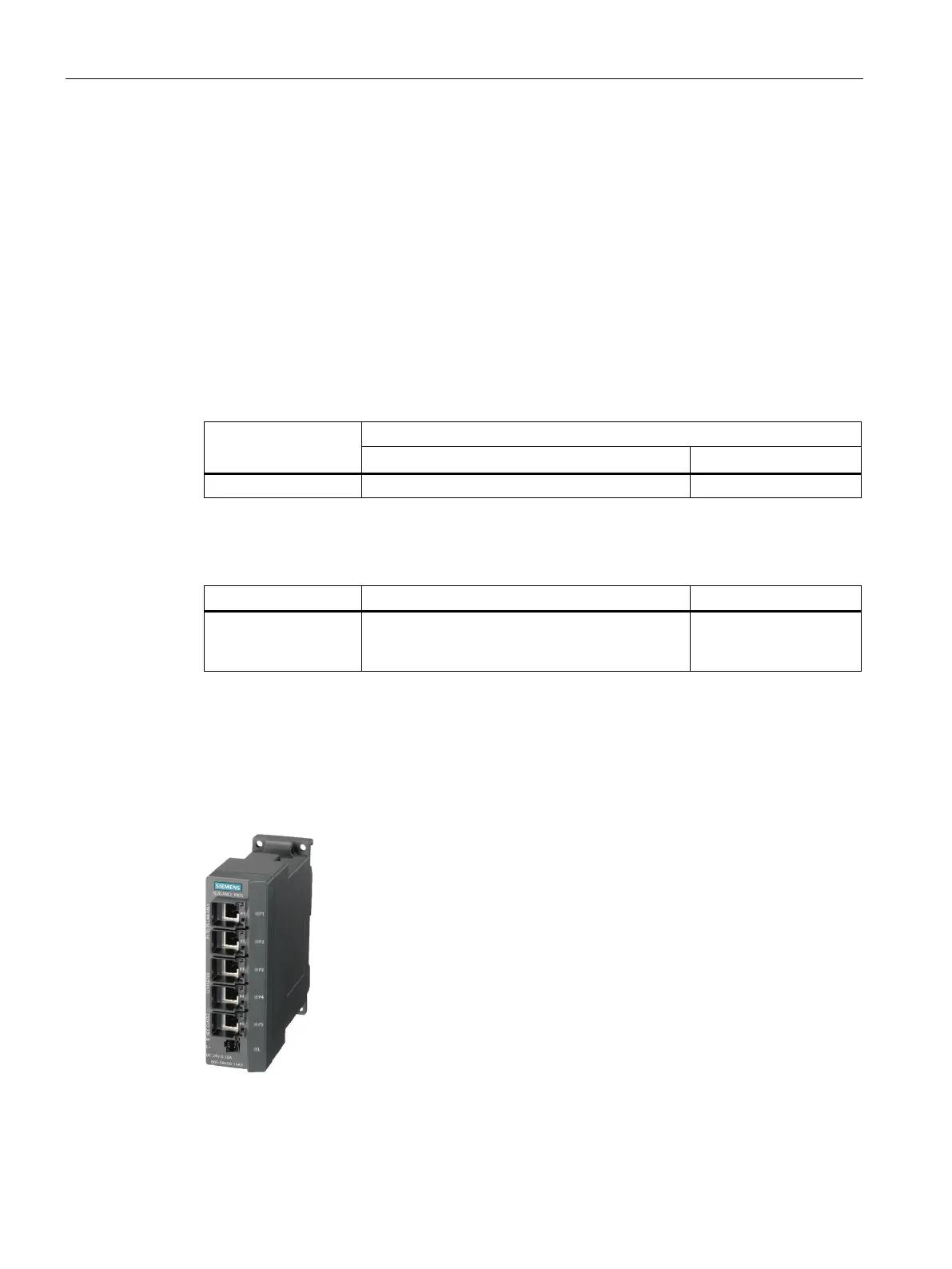

Figure 4-5 SCALANCE X005
