4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
227
Device
Description
Article number
SCALANCE W788-2 M12 Ethernet interface 1x M12 max. 1
Gbps, PoE
2x integral wireless cards
6x N-Connect female, antenna
connections
6GK5788-2GD00-0AA0
6GK5788-2GD00-0AB0
1)
SCALANCE W788-2 M12 EEC Ethernet interface 1x M12 max. 1
Gbps, PoE
2x integral wireless cards
6x N-Connect female, antenna
connections
6GK5788-2GD00-0TA0
6GK5788-2GD00-0TB0
1)
1)
US variant
2)
Israel variant
Clients
Device
Description
Article number
SCALANCE W748-1 RJ45 Ethernet interface 1x RJ45 max. 1
Gbps, PoE
3x R-SMA antenna connections
6GK5748-1FC00-0AA0
6GK5748-1FC00-0AB0
1)
SCALANCE W748-1 M12 Ethernet interface 1x M12 max. 1
Gbps, PoE
3x N-Connect female
6GK5748-1GD00-0AA0
6GK5748-1GD00-0AB0
1)
1)
US variant
4.6.11 SCALANCE W1788/W1748
4.6.11.1 Description

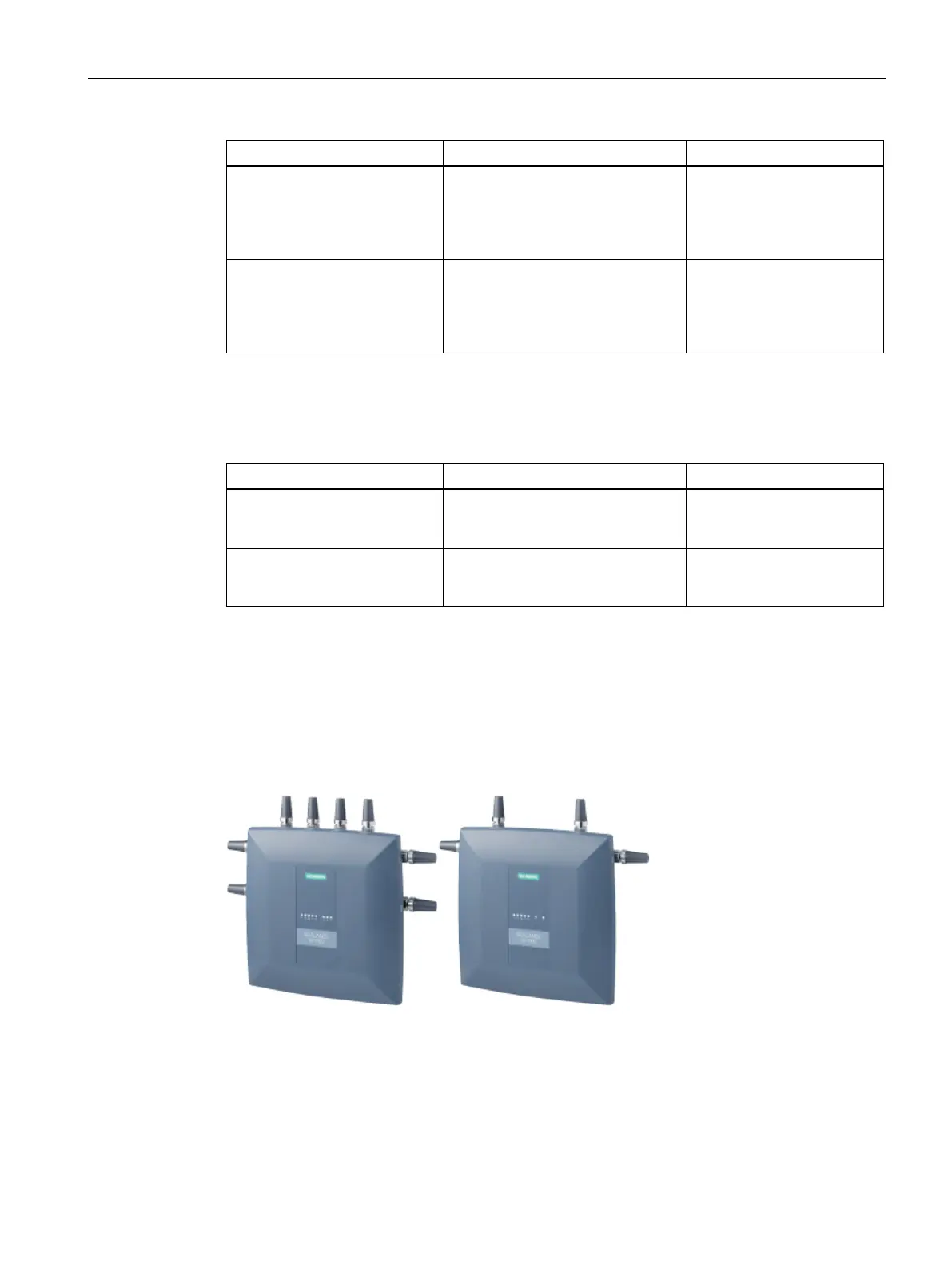

Figure 4-38 SCALANCE W1700
