Siemens SIMATIC NET - Scalance W1750 D; Description; Features and Functions

SCALANCE network components
4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
231
4.6.12 SCALANCE W1750D
4.6.12.1 Description

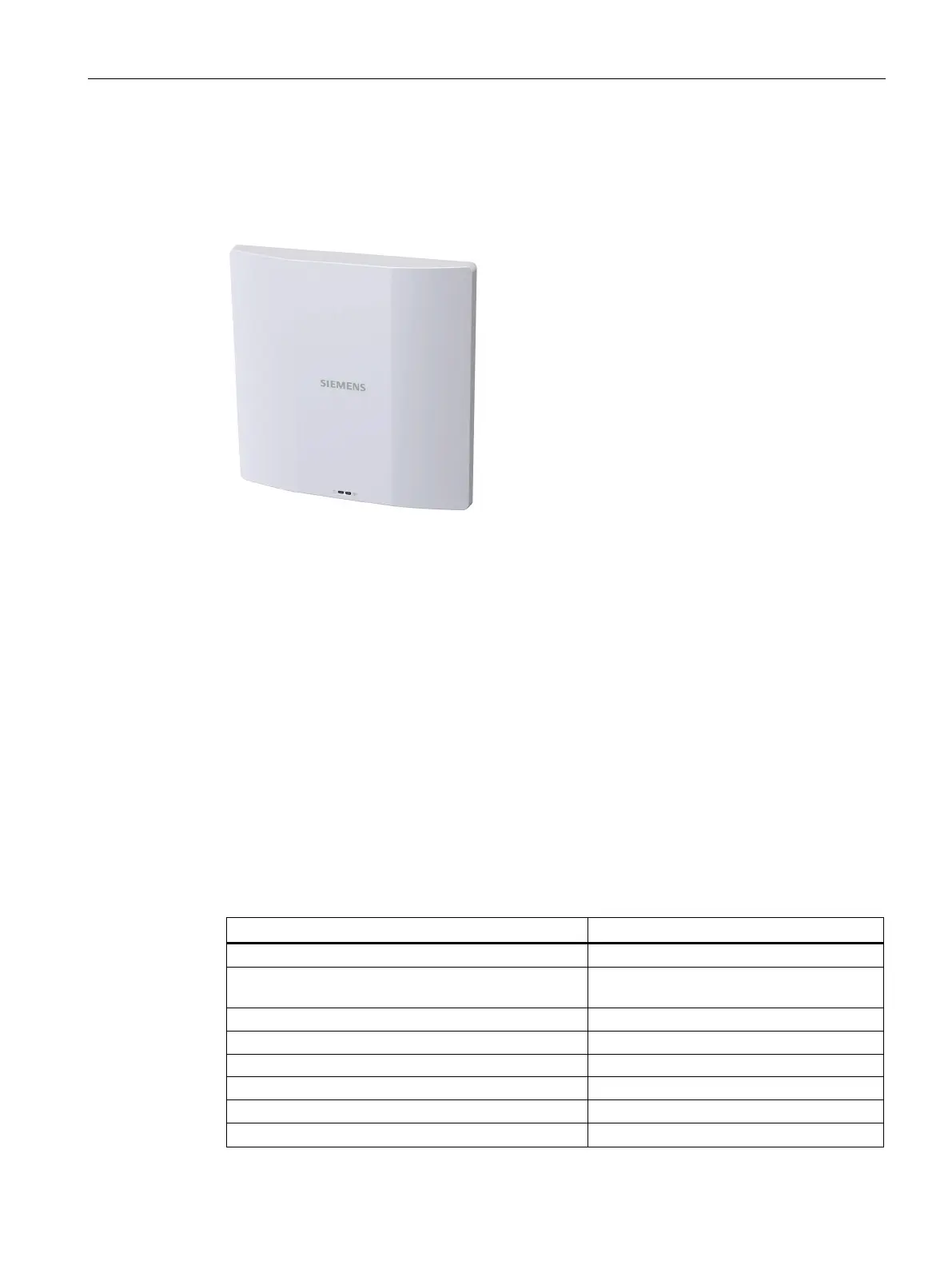

Figure 4-39 SCALANCE W1750D
The controller-based SCALANCE W1750D Direct Access Point supports the IEEE 802.11ac
Wave 2 standard. The device includes a virtual controller and is suitable for centralized
management of up to 128 access points. The device uses the 4 x 4 Multi-User MIMO
antenna technology that allows data transmission at speeds of up to 1733 Mbps (gross).
The device has two installed wireless cards and 8 internal antennas. It offers two Gigabit
Ethernet interfaces, one of them can be used with PoE.
The device can be installed to the wall or ceiling without any problems by using the included
bracket. Thanks to its discreet and unobtrusive design it can be optimally integrated into any
room concept.
4.6.12.2 Features and functions
Features
The device has the characteristics shown in the following table:
W1750D-2IA RJ45
Number of supported access points
128
PoE (Power-over-Ethernet) according to IEEE 802.3at
Type 1, previously IEEE 802.3af.
●
Redundant power supply
-
Digital input / digital output -
C-PLUG/KEY-PLUG slot
-
USB 2.0 Type A
●
IP degree of protection
IP20
Operating temperature minimum
0 °C
