SCALANCE network components
4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
206 System Manual, 09/2019, C79000-G8976-C242-10
Note
In the online help of the Web
-Based Management, you will find further information on the
n parameters of the particular SCALANCE W devices.
4.6.2 Type designations
The design and basic properties of a SCALANCE W device can be identified based on the
following type key:

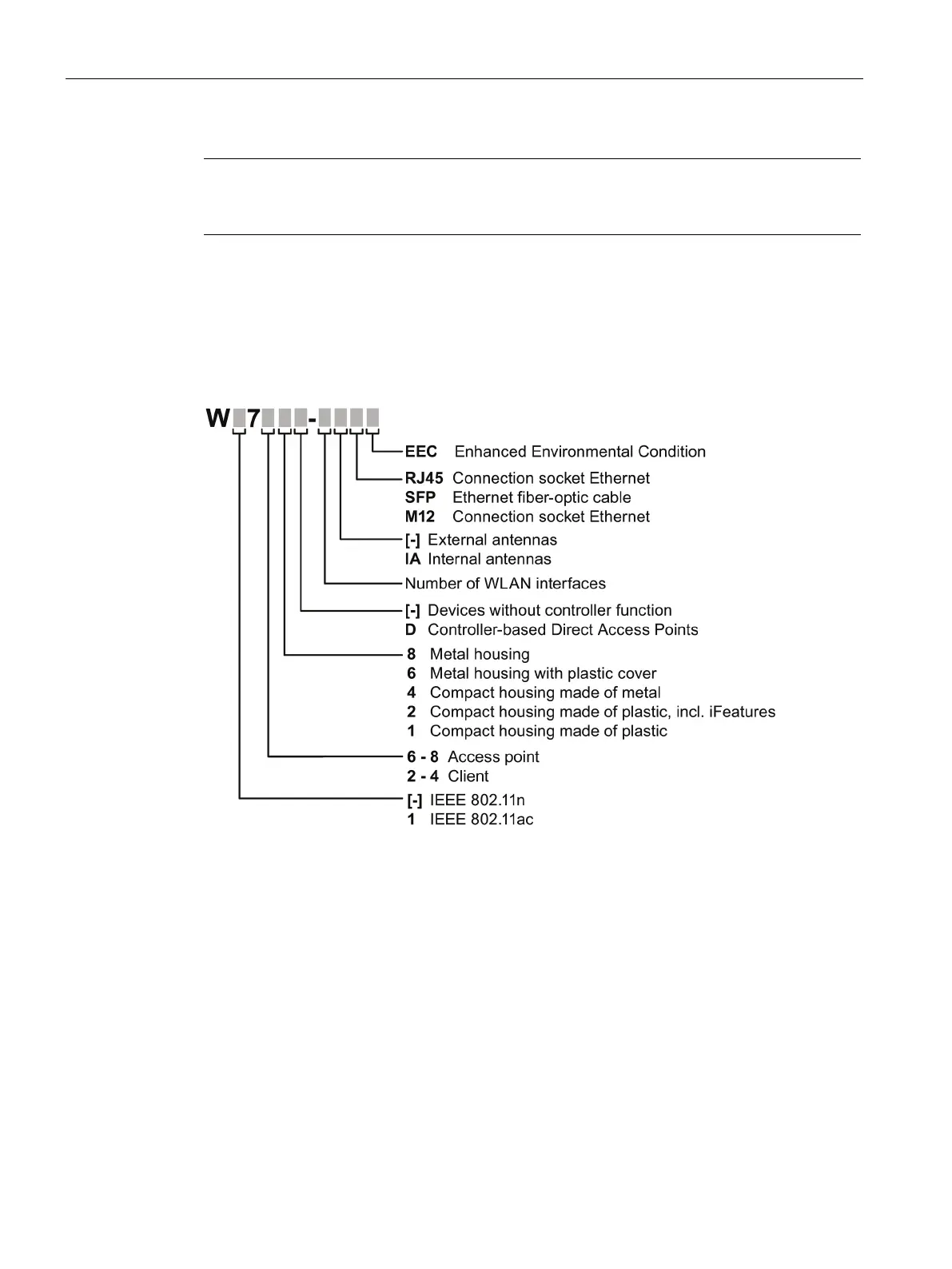

Figure 4-32 Type designations of the SCALANCE W devices complying with IEEE 802.11n/ac
4.6.3 IEEE 802.11r
During roaming, the WLAN client roams from one access point to the next. A delay time of
several 100 ms can come about at the connection transition.
The following steps can be executed during this time:
● Client searches for a new access point (scanning)
● Logon at a new access point (authentication and association)
● Allow a data connection via the new access point
