SCALANCE network components
4.7 SCALANCE M industry router
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
245

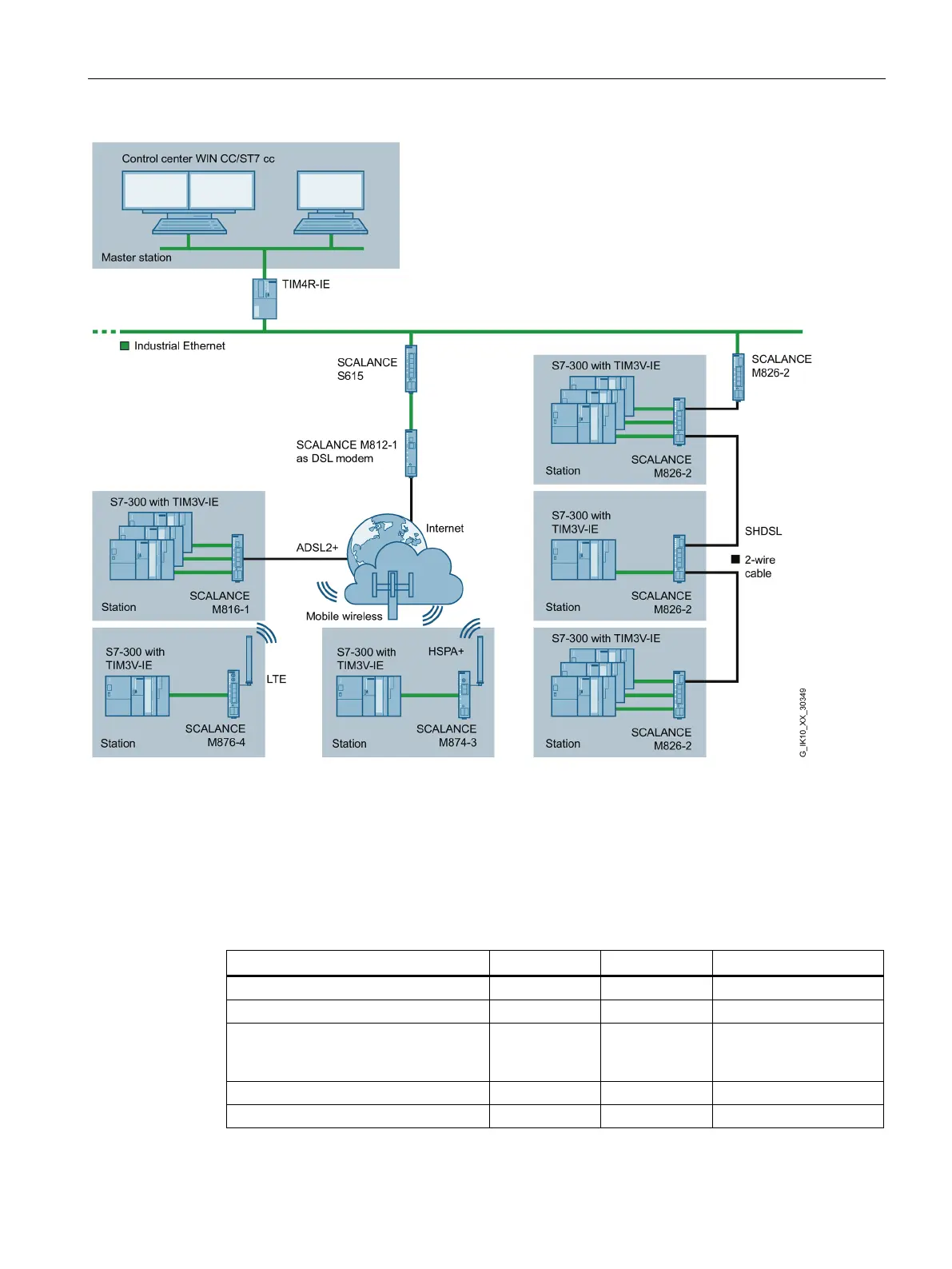

Figure 4-43 Example of a topology for using the devices SCALANCE M816-1 and M826-2
4.7.2.2 Features and functions
Features
The individual devices have the characteristics shown in the following table:
M812-1
M816-1
M826-2
Diagnostics LED
●
●
●
On site display (Set button)
●
●
●
Connectors ADSL
ADSL2
ADSL2+
ADSL
ADSL2
ADSL2+
SHDSL
Ethernet interface
1x RJ45
4x RJ45
4x RJ45
Transmission rate
10/100 Mbps
10/100 Mbps
10/100 Mbps
