4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
146 System Manual, 09/2019, C79000-G8976-C242-10
4.5.7.4 Article numbers
SCALANCE X108PoE 6x 10/100 Mbps RJ45 ports, electrical
2x 10/100 Mbps RJ45 PoE ports, electrical
6GK5108-0PA00-2AA3
4.5.8 SCALANCE XB-100
4.5.8.1 Description

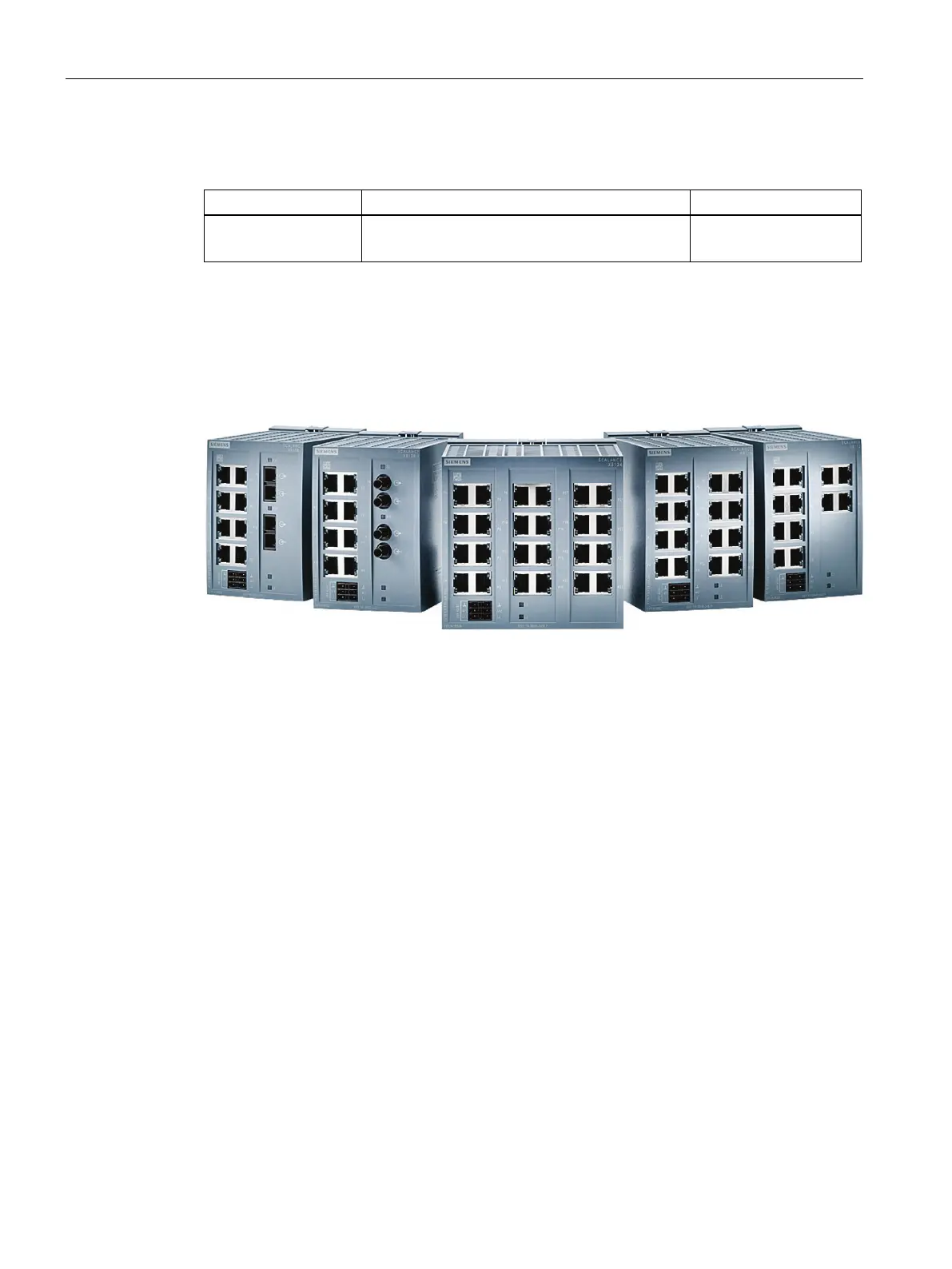

Figure 4-8 SCALANCE XB-100
The devices of the SCALANCE XB-100 product line are unmanaged Industrial Ethernet
switches for the setup of small Industrial Ethernet networks with transmission rates of
10/100 Mbps in linear or star structures. The SCALANCE XB-100 devices are suitable for
applications in industry and building automation for which management via CLI or WBM is
not required.
The space-saving plastic housing in IP20 degree of protection is suitable for DIN rail and wall
mounting and is intended for installation in a control cabinet. The redundant power supply
and a signaling contact with on-site operation ensure high operational safety. An LED display
provides information about supply voltage, port status and data traffic. All versions are
PROFINET CC-A compliant and can be used in hazardous areas of Zone 2
(ATEX, IECEx).
Different port configurations with up to 24 RJ45 ports are available. There are also two
models available with connections for multimode fiber-optic cables (ST/BFOC or SC
interface).
