SCALANCE network components
4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
158 System Manual, 09/2019, C79000-G8976-C242-10
4.5.13 SCALANCE XB-200
4.5.13.1 Description

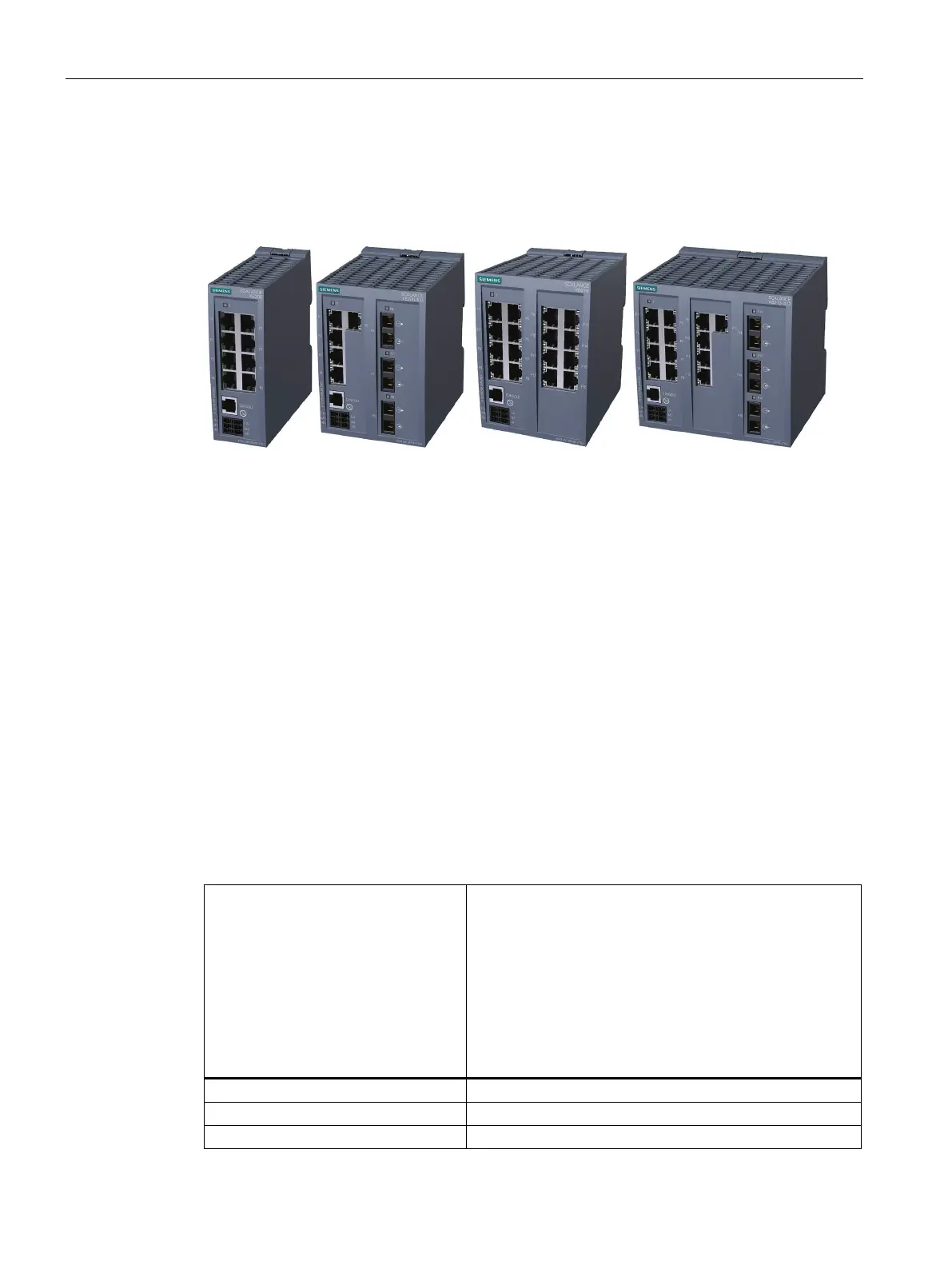

Figure 4-14 SCALANCE XB-200
The SCALANCE XB-200 series provides devices suitable for industry at aa favorable price.
They can be used anywhere where there are no high requirements regarding mechanical
load, degree of protection and equipment. The devices have a plastic housing in IP20
degree of protection and are intended for installation in the cabinet. They can be installed on
a DIN rail without tools. The devices can also be mounted directly on the wall.
They also have a separate console connector and a redundant power supply. There are
various port configurations for copper and fiber-optic cables with up to 13x RJ45 ports and
3x ST/BFOS or SC ports. All the designs are available in two variants that differ in the factory
settings (EtherNet/IP or PROFINET variant).
Through the integrated redundancy manager, redundant ring structures can also be set up
with these devices on the basis of High Speed Redundancy (HRP) or the Media
Redundancy Protocol (MRP).
4.5.13.2 Features and functions
Features
XB208
XB205-3 (SC)
XB205-3LD (SC)
XB205-3
XB216
XB213-3 (SC)
XB213-3LD (SC)
XB213-3
Diagnostics LED
Redundant power supply
Signaling contact
