SCALANCE network components
4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
154 System Manual, 09/2019, C79000-G8976-C242-10
4.5.11.4 Article numbers
4x 100 Mbps POF/PCF SC RJ ports
SCALANCE X201-3P IRT 1x 10/100 Mbps RJ45 port, 3x 100 Mbps
6GK5201-3BH00-2BA3
SCALANCE X201-3P IRT
PRO
1x 10/100 Mbps RJ45 port, 3x 100 Mbps
POF SC RJ ports, degree of protection
6GK5201-3JR00-2BA6
SCALANCE X202-2IRT 2x 10/100 Mbps RJ45 ports, 2x 100 Mbps
6GK5202-2BB00-2BA3
SCALANCE X202-2P IRT 2x 10/100 Mbps RJ45 ports, 2x 100 Mbps
6GK5202-2BH00-2BA3
SCALANCE X202-2P IRT
PRO
2x 10/100 Mbps RJ45 push-pull ports, 2x
100 Mbps push-pull SC RJ ports, degree of
6GK5202-2JR00-2BA6
4x 10/100 Mbps RJ45 ports
SCALANCE X204IRT PRO 4x 10/100 Mbps RJ45 push-pull ports,
degree of protection IP65/67
6GK5204-0JA00-2BA6
4.5.12 SCALANCE X-200RNA
4.5.12.1 Description

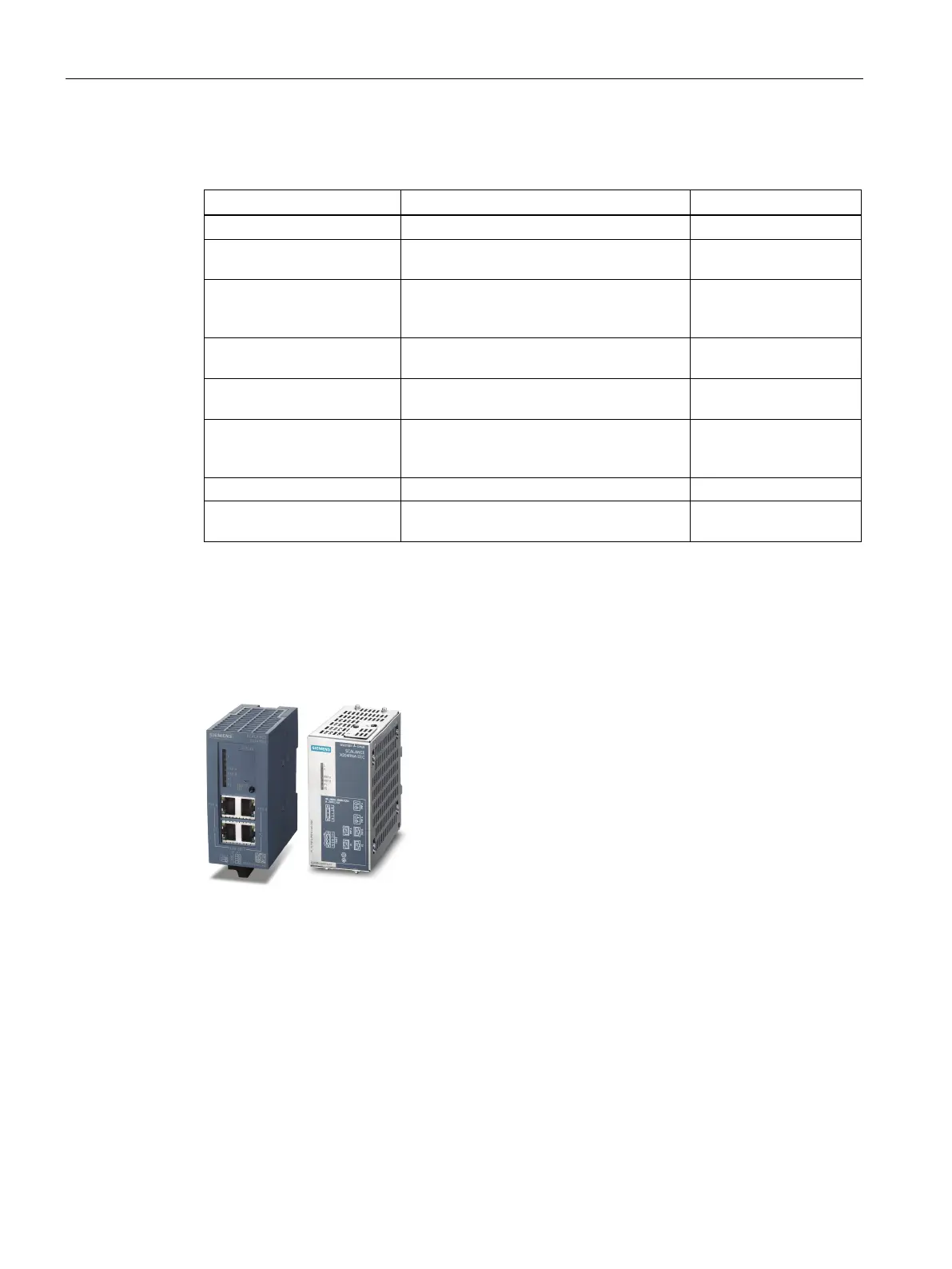

Figure 4-13 SCALANCE X-200RNA
With the devices of the SCALANCE X-200RNA product line, fault-tolerant communication
structures can be established that also ensure delay-free data transmission in case of a
failure. The abbreviation "RNA" stands for "Redundant Network Access". Depending on the
required network topology, the redundancy procedures PRP (Parallel Redundancy Protocol,
for line and star topology) or HSR (High-availability Seamless Redundancy Protocol, for ring
topology) are used. With the PRP redundancy procedure, a SCALANCE X-200RNA enables
the connection of up to two end devices or network segments to two parallel networks. The
operating principle of the HSR redundancy procedure consists of sending frames in ring
networks into two directions. The devices of the SCALANCE X-200RNA series are available
in two hardware versions. The X204RNA EEC variant has a metal housing and is suitable for
ambient temperatures of -40 °C to 70 °C.
