4.4 Web Based Management for configuring networks
Configuration over a Web interface
All SCALANCE devices that have management functions can be configured using "Web
Based Management" (WBM).
The devices have an integrated Web server that can be accessed by the configuration
engineer with a browser via every Ethernet connection. The server then provides a series of
Web pages. On these Web pages, the configuration engineer can make all important
settings and can also run diagnostics and report functions.

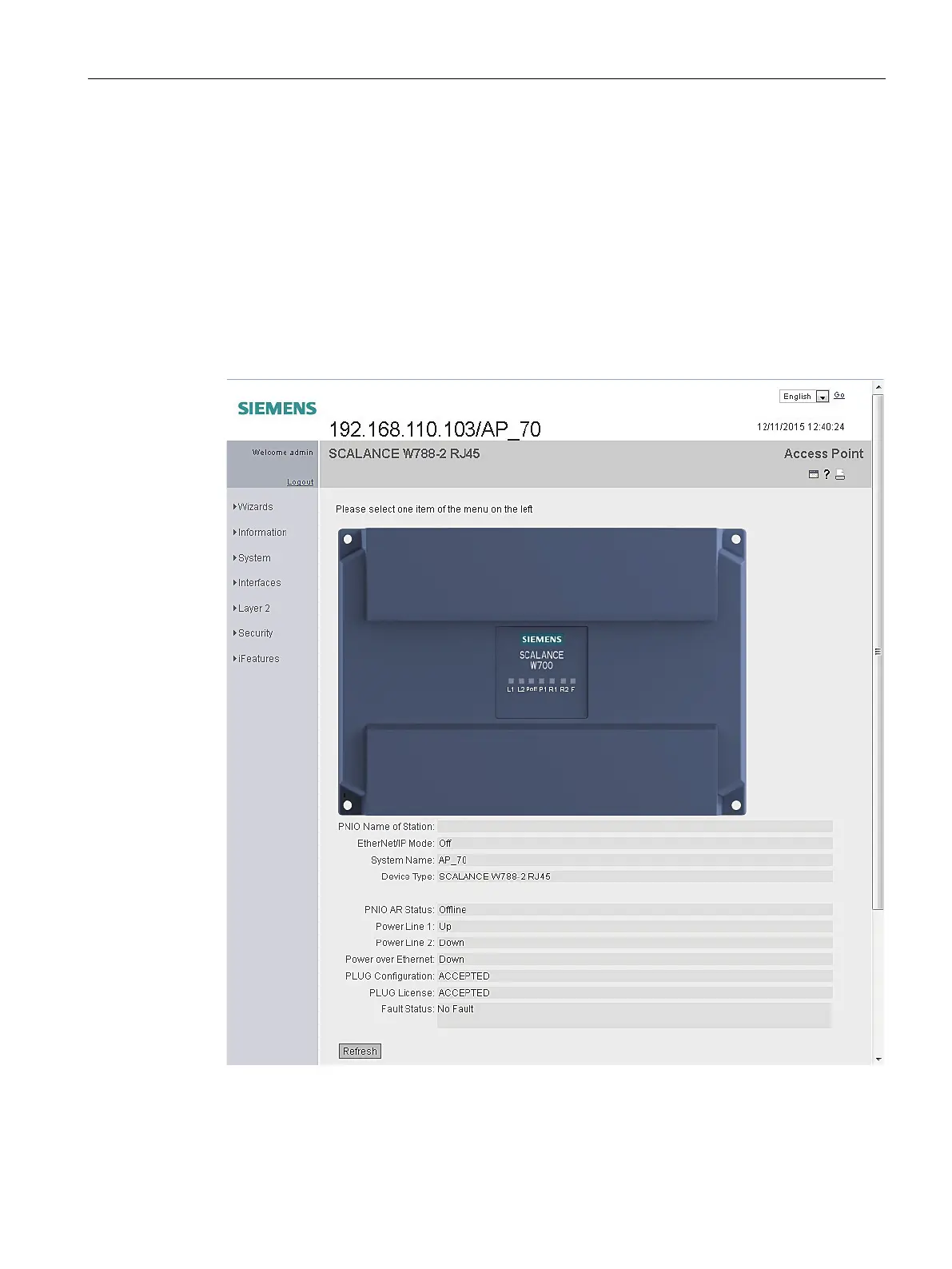

Figure 4-1 Web Based Management based on the example of configuring a W788 access point
