SCALANCE network components
4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
150 System Manual, 09/2019, C79000-G8976-C242-10
4.5.10 SCALANCE XR-100WG
4.5.10.1 Description

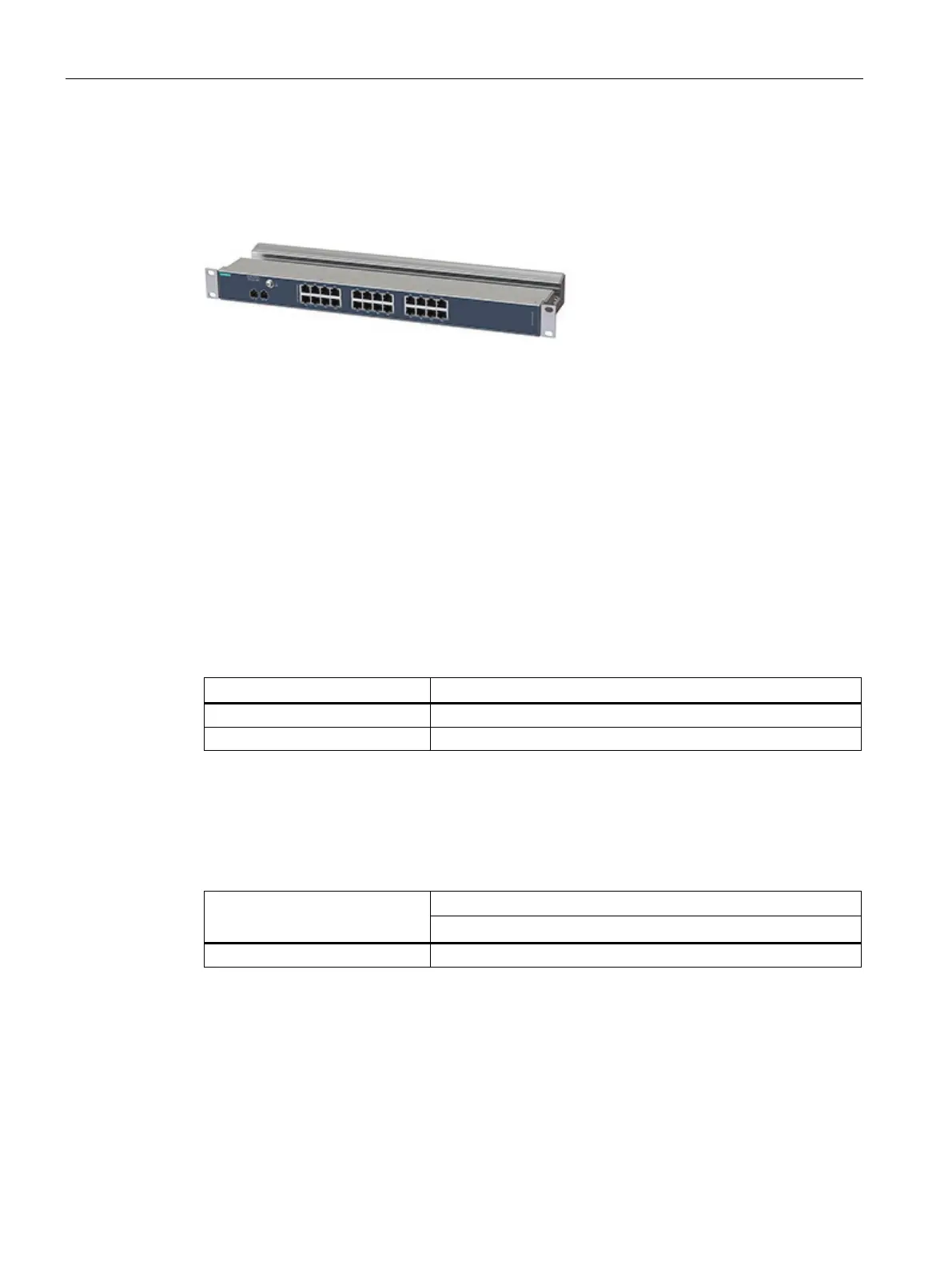

Figure 4-10 SCALANCE XR124WG
The SCALANCE XR-100WG (Work Group switches) are unmanaged Industrial Ethernet
switches for applications in the industry-oriented area. They are suitable for setting up
Industrial Ethernet networks with transmission rates of 10/100 Mbps in line and star
structure.
The devices have a rugged metal housing in IP30 degree of protection and are intended for
installation in 19" control cabinets. The devices offer 24 electrical RJ45 ports. The status
information for on-site diagnostics (link status, data traffic) is displayed via LEDs. There are
two device versions for a 24 V DC or 100-240 V AC power supply. A redundant voltage
supply is possible for devices with a 24 V DC supply voltage.
4.5.10.2 Features
The device has the characteristics shown in the following table:
1)
● Suitable / available or according to the specified standard
1)
Only for 24 V DC device variants
