SCALANCE network components
4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
185
4.5.19 SCALANCE XR-300WG
4.5.19.1 Description

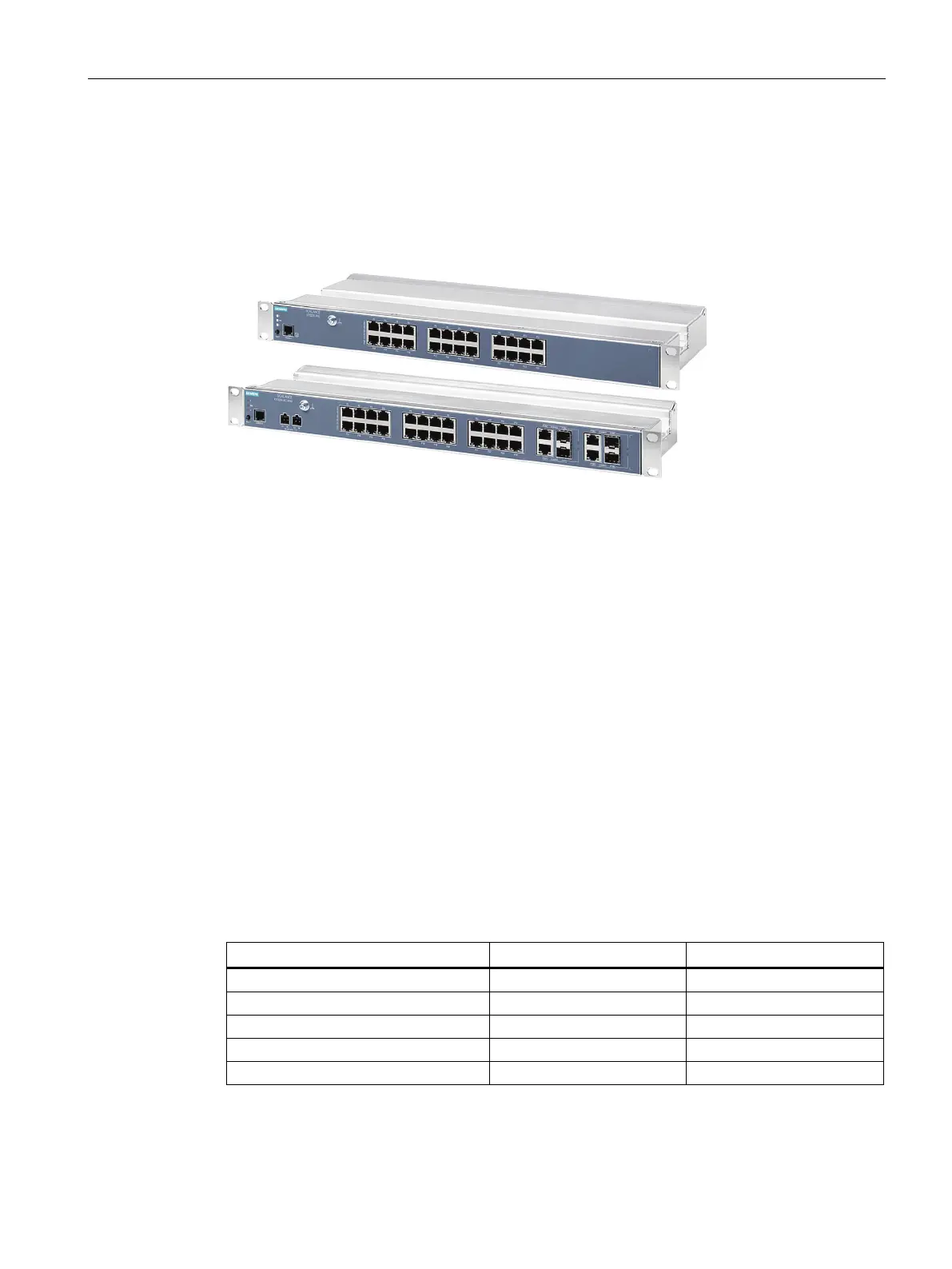

Figure 4-24 SCALANCE XR-300WG
The devices of the SCALANCE XR-300WG product line are managed Industrial Ethernet
switches for the setup of Industrial Ethernet networks with transmission rates of
10/100/1000 Mbps in linear, star or ring structures.
The devices have a robust metal housing in degree of protection IP30 and are intended for
installation in 19" cabinets (one 19" height unit). Two device versions with 24 V DC or 100-
240 V AC power supply are available. Apart from the 24 integrated RJ45 ports, the device
variants XR328-4C WG also have four combo ports. The combo ports can be optionally
equipped with pluggable transceivers for optical interfaces (SFP) or used as RJ45 ports. A
console port (serial interface) allows for easy on-site parameter assignment and diagnostics.
A redundancy manager for Gigabit Ethernet and Fast Ethernet is integrated. The devices
support standardized redundancy procedures (RSTP, MRP) for the redundant integration
into higher-level networks.
4.5.19.2 Features and functions
Features
The individual devices have the characteristics shown in the following table:
1)
1)
● Suitable / available or according to the
specified standard
1)
Only for 24 V DC device variants
