SCALANCE network components
4.8 SCALANCE S Industrial Security Appliance
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
265
4.8.3 Description
SCALANCE S615

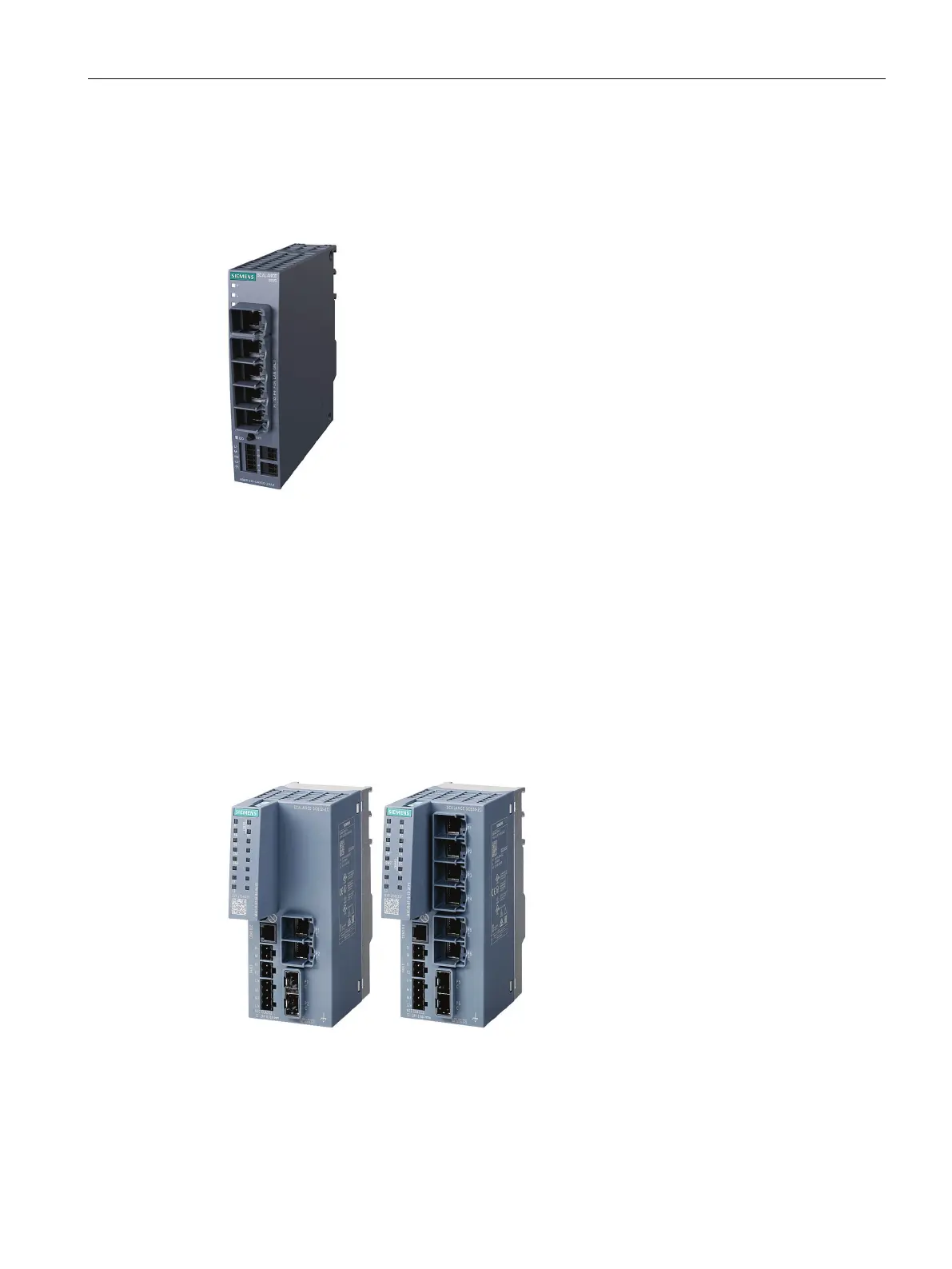

Figure 4-53 SCALANCE S615
The SCALANCE S615 protects from unauthorized access with a stateful inspection firewall.
In addition, the device supports IPsec and OpenVPN (as a client in SINEMA RC) with up to
20 VPN connections. Up to 5 variable security zones per port-based VLAN can be set up.
The firewall rules can be configured as required between the security zones. A key switch
function on the digital input allows the controlled establishment of a tunnel connection.
There is an auto configuration interface for the connection to SINEMA RC that is enabled
with the KEY-PLUG SINEMA RC. SINEMA RC then allows fast and efficient connection
configuration.
SCALANCE SC-600
Figure 4-54 SCALANCE SC632-2C and SCALANCE SC636-2C
