SCALANCE network components
4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
215
Clients
Device
Description
Article number
SCALANCE W721-1 RJ45 Ethernet interface RJ45,
1x R-SMA antenna connections
6GK5721-1FC00-0AA0
6GK5721-1FC00-0AB0
1)
SCALANCE W722-1 RJ45 Ethernet interface RJ45,
1x R-SMA antenna connections
6GK5722-1FC00-0AA0
6GK5722-1FC00-0AB0
1)
6GK5722-1FC00-0AC0
2)
1)
US variant
2)
Israel variant
4.6.7 SCALANCE W774/W734
4.6.7.1 Description

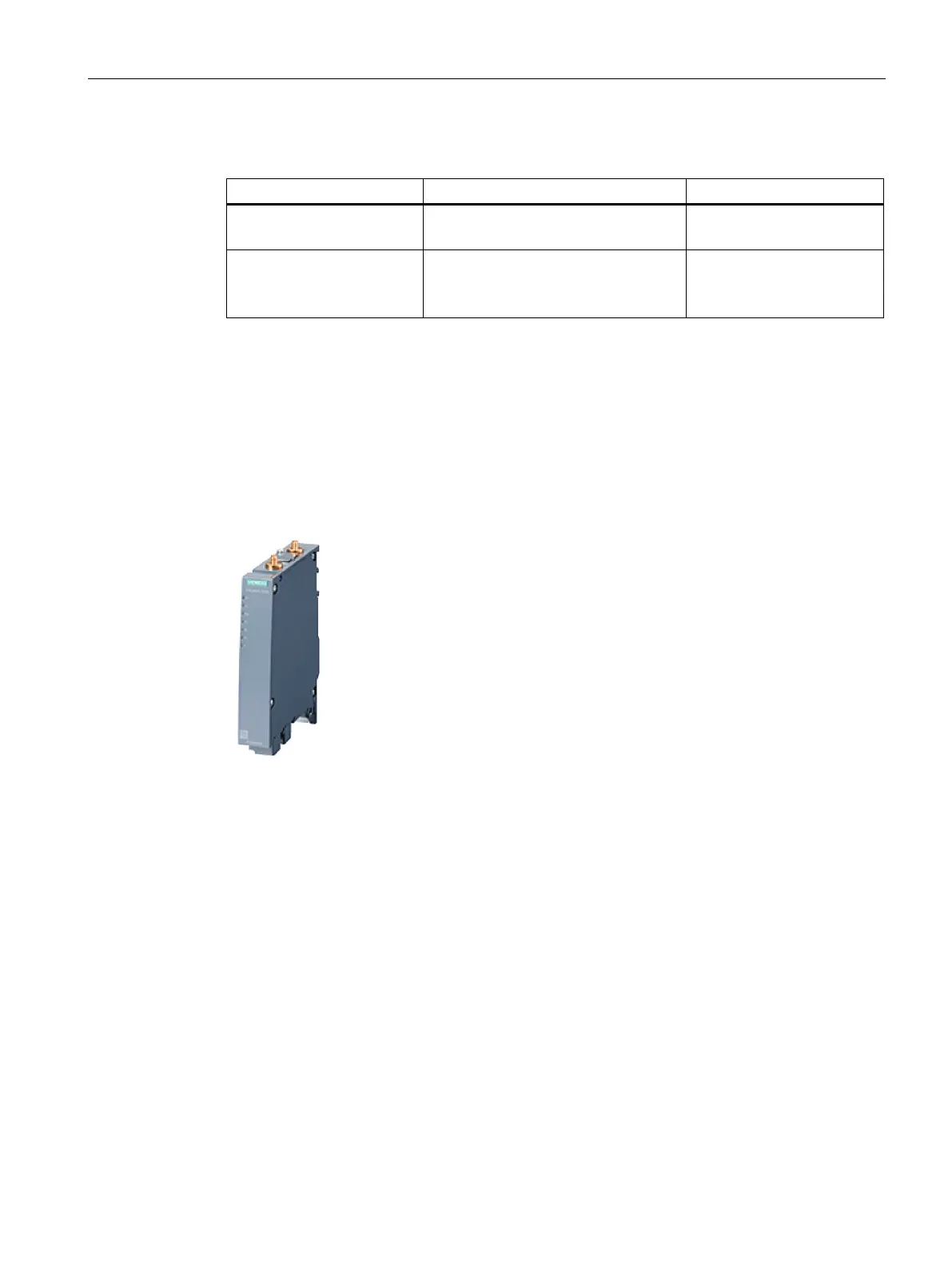

Figure 4-34 SCALANCE W774-1 M12 EEC
The SCALANCE W774/W734 devices have a metal housing in SIMATIC S7-1500 and ET
200MP design and are designed for installation in a cabinet. Since the devices support
MIMO 2x2 antenna technology, they are also suitable for applications with high requirements
for reliability. A redundant power supply is also possible as is Power over Ethernet. With the
optionally available KEY-PLUG, real-time data transfer is also possible.
The following variants exist:
SCALANCE W774-1 RJ-45
access point
SCALANCE W774-1 M12 EEC
access point with M12 connector sockets
SCALANCE W734-1 RJ45
Client module
