SCALANCE network components
4.5 SCALANCE X Industrial Ethernet Switches
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
175
4.5.16.4 Article numbers
4x 10/100 Mbps, 2x BusAdapter interface
SCALANCE XF204-2BA
4x 10/100 Mbps, 2x BusAdapter interface 6GK5204-2AA00-2YF2
4.5.17 SCALANCE XP-200
4.5.17.1 Description

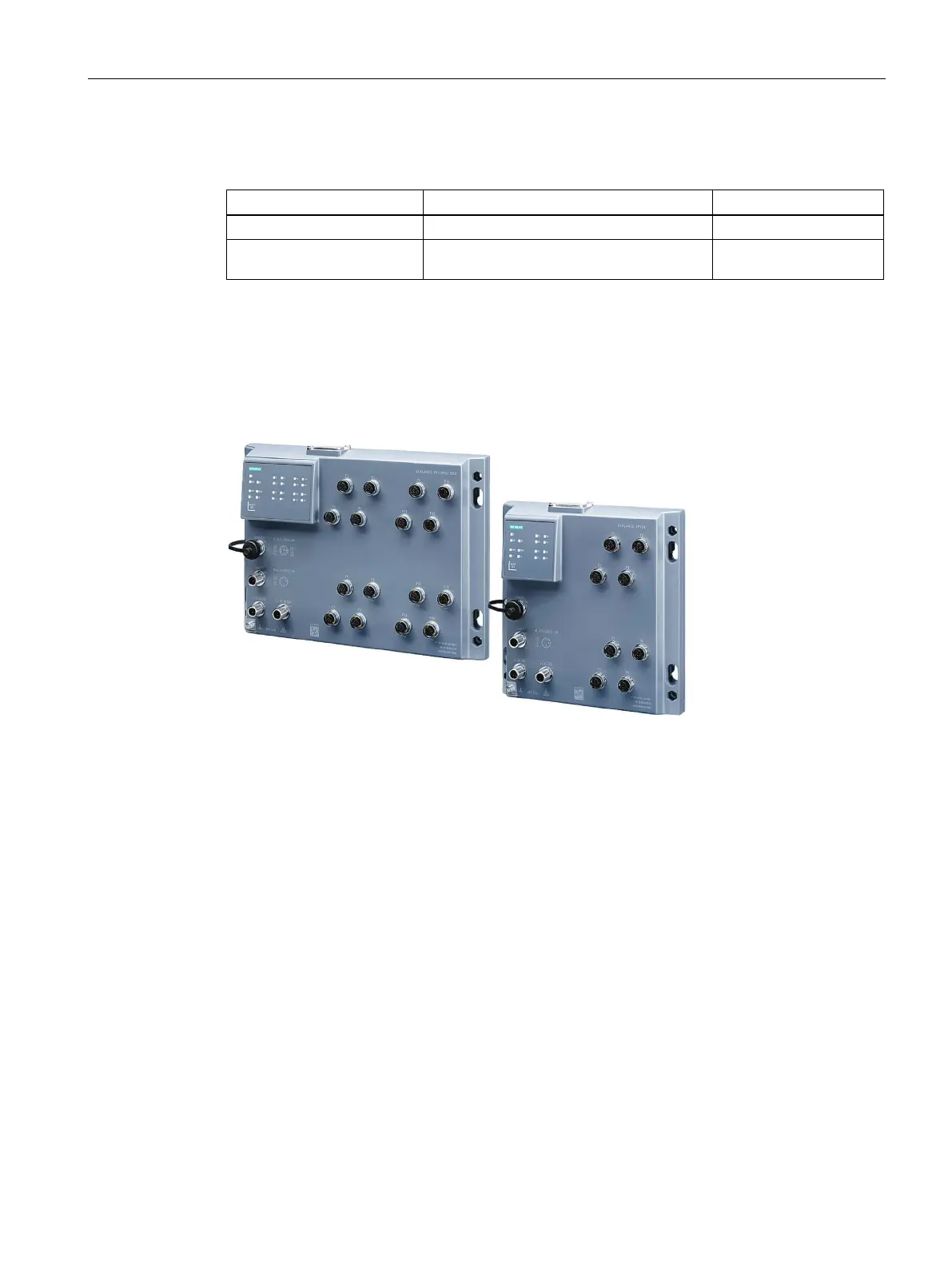

Figure 4-20 SCALANCE XP-200
The devices of the SCALANCE XP-200 product line are managed Industrial Ethernet
switches for the setup of Industrial Ethernet networks with transmission rates of 10/100/1000
Mbps in linear, star or ring structures. The devices support the redundancy procedures HRP
and MRP as well as the redundant coupling of rings via HRP standby and MRP
interconnection.
The SCALANCE XP-200 devices are designed for use cases with high mechanical load and
extreme ambient conditions (temperature, vibrations, shocks). The metal housing in IP65
degree of protection is suitable for operation outside of control cabinets and can be mounted
on an ET 200pro module rack, an ITEM profile or directly on a wall. The 8 or 16 Ethernet
ports as well as other interfaces (redundant power supply, fault signaling contact, console
port) are designed as M12 connections.
The devices are designed for the extended temperature range of -40 °C to +70 °C and for an
installation altitude of up to 4000 meters. The EEC variants are additionally equipped with
coated PCBs and are suitable railway applications (EN 50155, EN 45545). The immunity of
the devices corresponds to the NAMUR NE 21 standard. All EEC variants of the products
are also available in a version for Power over Ethernet according to IEEE 802.3at Type 2.
