10.4 PN/CAN link
Industrial Ethernet
358 System Manual, 09/2019, C79000-G8976-C242-10
Article numbers
SIMATIC
SIMATIC PN/BACnet LINK gateway from PROFINET
to BACnet/IP networks, device profile: B-GW, IP20
6BK1621-0AA00-0AA0
10.4 PN/CAN link
Description

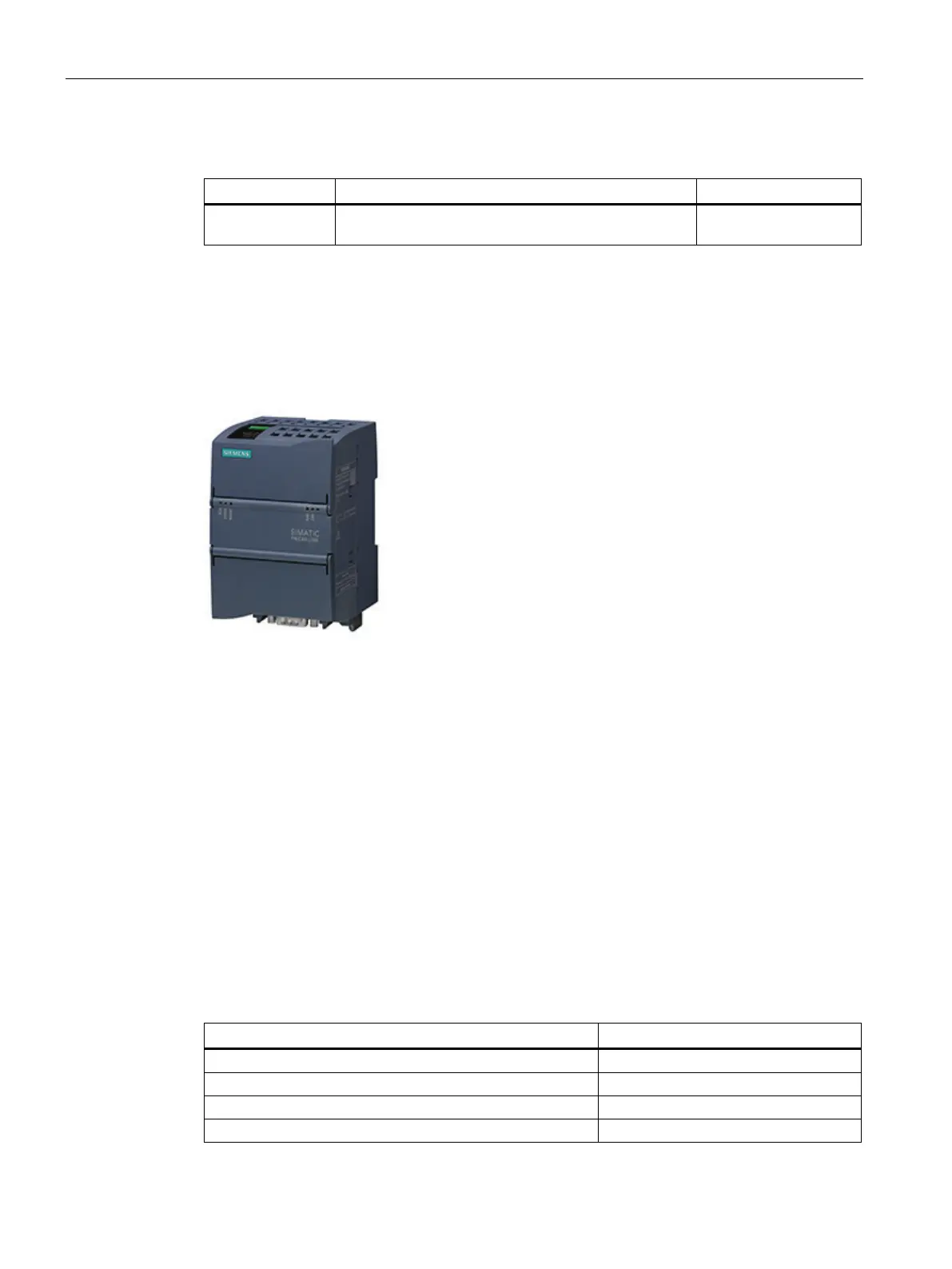

Figure 10-6 PN/CAN link
Gateway between PROFINET and CANopen Manager or Slave (according to CiA 301 &
302)
● Compact plastic housing in S7-1200 design, IP20 degree of protection
● Mounting on a DIN rail or a panel
● LEDs for visualization of operating states for BACnet, PROFINET and Ethernet ports
● Diagnostics alarms
● Configuration via STEP 7 TIA Portal as of V14 SP1 or higher
● Maximum permissible cable length of the CAN network of up to 1000 m (depending on
data transmission rate, cable cross-section, number of nodes)
● Supported controllers: S7-1200, S7-1500, ET 200SP, OpenController
Features
Connection PROFINET/Industrial Ethernet
1x D-sub connector (9-pin, socket)
Transmission rate - Industrial Ethernet 100 Mbps
