4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
205

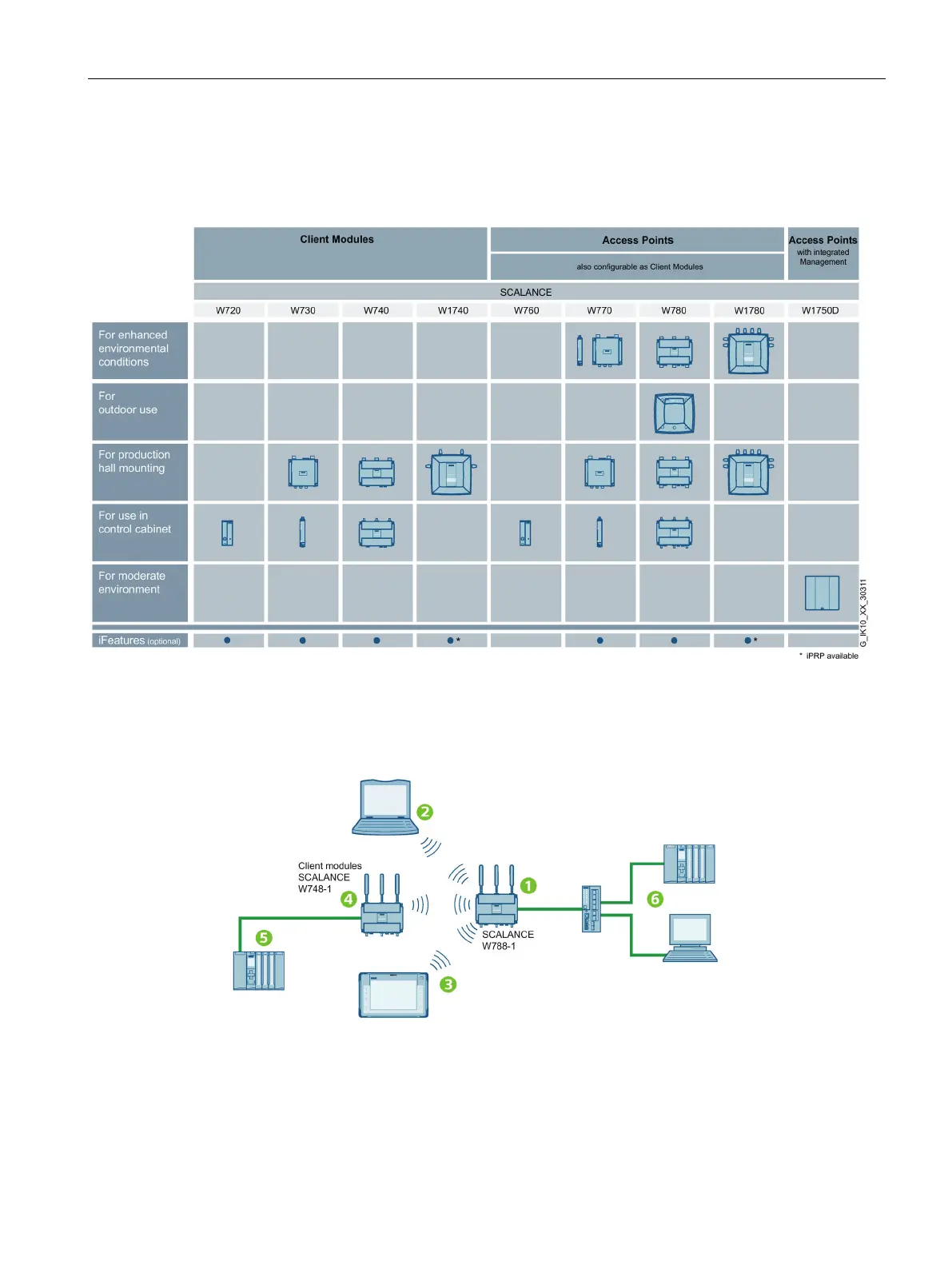

Overview of the performance classes of the SCALANCE W devices
The following overview table provides you with a summary of the performance classes
covered by the various SCALANCE W devices.
Figure 4-30 SCALANCE W access points and clients according to IEEE 802.11n/ac
Example of a topology
Figure 4-31 Example of an infrastructure network:
A SCALANCE W788 ① adopts the function of the access point. Mobile nodes such as
PC/PG with IWLAN card
②, IWLAN control panels ③ or WLAN clients ④ and their
nodes
⑤ can communicate with each other or exchange data with stationary nodes ⑥.
