Cloud Gateway
5.1 Description
Industrial Ethernet
288 System Manual, 09/2019, C79000-G8976-C242-10
The device has an industry-suitable housing in the SIMATIC S7-1500 format in the degree of
protection IP20 and is suitable for operating temperatures of -20 °C to +60 °C. It offers the
following installation options: SIMATIC S7-1500 and S7-300 standard rail, standard DIN rail,
on a base or wall mounting. The device is designed for usage in the control cabinet. The
RJ45 sockets with securing collar provide additional strain and bend relief for the use of
FastConnect connectors. The configuration data can be saved on the optionally available
exchangeable storage medium Configuration License PLUG (CLP), which makes a device
exchange easier.

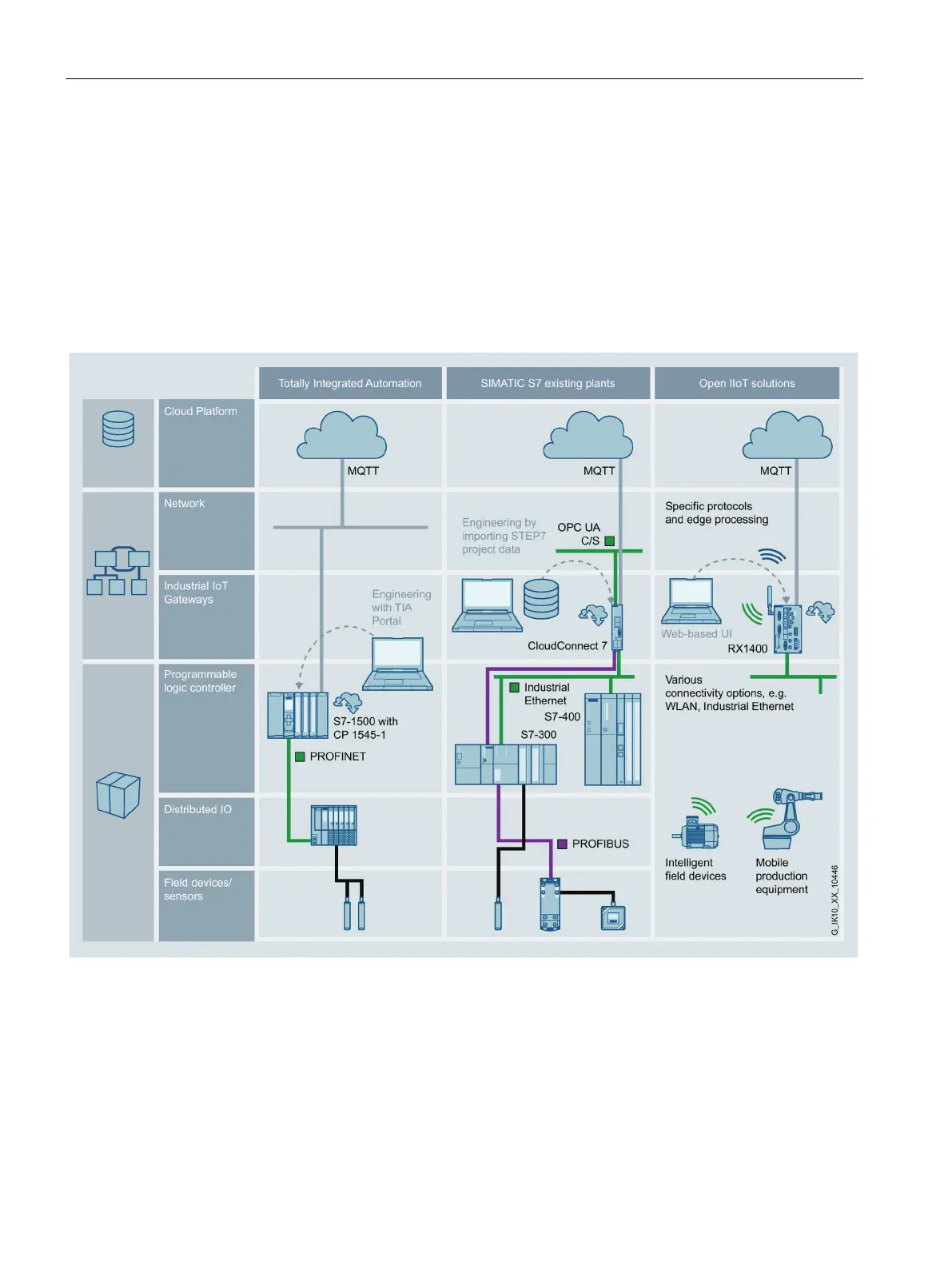

Example of a topology
Figure 5-2 Connection options for CloudConnect 7
See also
Configuration License PLUG (CLP) (Page 285)
