SIMATIC Instructions
9-119
S7-200 Programmable Controller System Manual
A5E00066097-02
Invert Example
LAD STL
LD I4.0
INVW AC0
I4.0
INV_W
EN
INAC0 OUT AC0
1101 0111 1001 0101AC0
complement
0010 1000 0110 1010AC0
Application
Invert Word
FBD
ENO
INV_W
EN
INAC0 OUT AC0
ENOI4.0

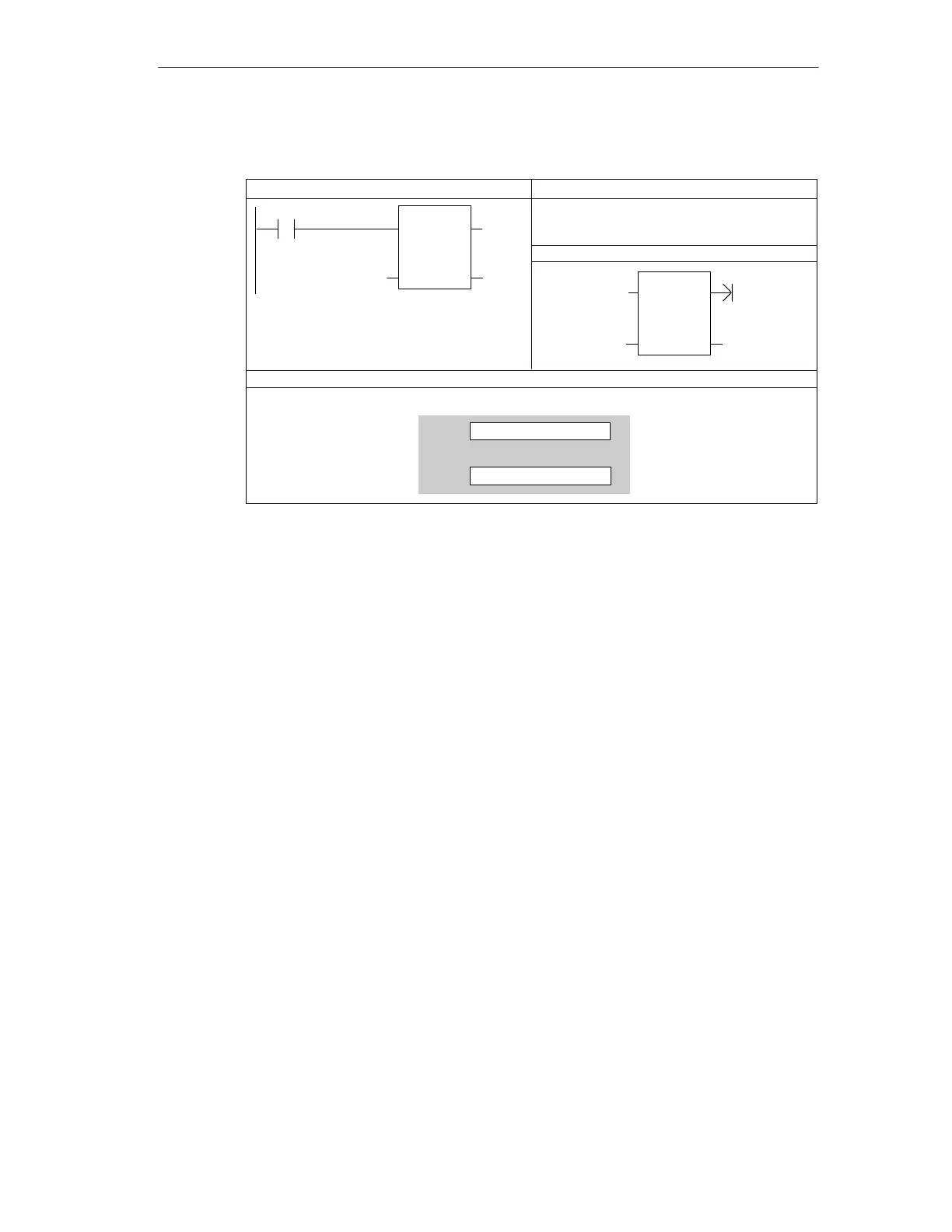

Figure 9-38 Example of Invert Instruction for SIMATIC LAD, STL, and FBD
