Siemens SIMATIC S7-200 - Compare Greater than; Compare Greater than or Equal

IEC 1131-3 Instructions
10-10
S7-200 Programmable Controller System Manual
A5E00066097-02

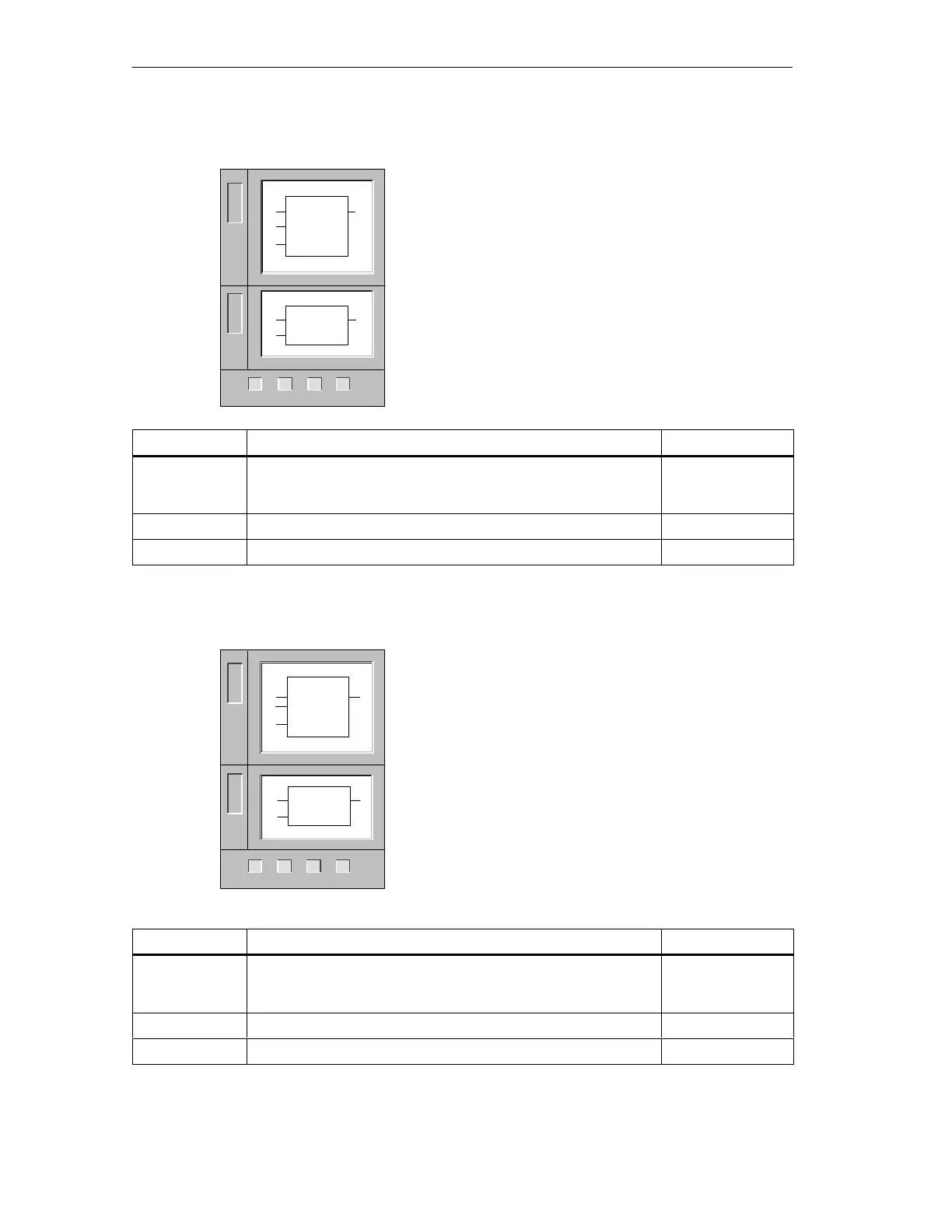

Compare Greater Than
The Compare Greater Than function compares IN1
greater than IN2 with the Boolean result placed in OUT.
The input and output data types can vary, but they must
be of the same type.
Byte comparisons are unsigned. Integer, double integer,
and real comparisons are signed. Time operations are
signed integers.
Inputs/Outputs Operands Data Types
Inputs
(LAD & FBD)
IB, QB, MB, SB, SMB, VB, LB, IW, QW, MW, SW, SMW, VW, LW,
T, C, AIW, ID, QD, MD, SD, SMD, VD, LD, HC, AC, Constant,
*VD, *AC, *LD
BYTE, INT, DINT,
REAL
OUT (LAD only) Power Flow BOOL
OUT (FBD only) I, Q, M, SM, V, S, L, Power Flow BOOL
Compare Greater Than or Equal
The Compare Greater Than or Equal function
compares IN1 greater than or equal to IN2 with the
Boolean result placed in OUT. The input and output data
types can vary, but they must be of the same type.
Byte comparisons are unsigned. Integer, double integer,
and real comparisons are signed.
Inputs/Outputs Operands Data Types
Inputs
(LAD & FBD)
IB, QB, MB, SB, SMB, VB, LB, IW, QW, MW, SW, SMW, VW, LW,
T, C, AIW, ID, QD, MD, SD, SMD, VD, LD, HC, AC, Constant,
*VD, *AC, *LD
BYTE, INT, DINT,
REAL
OUT (LAD only) Power Flow BOOL
OUT (FBD only) I, Q, M, SM, V, S, L, Power Flow BOOL
L
A
D
F
B
D
GT
IN1
IN2
OUT
222 224
✓✓✓
221
GT
EN
226
✓
L
A
D
F
B
D
GE
IN1
IN2
OUT
222 224
✓✓✓
221
GE
EN
226
✓
