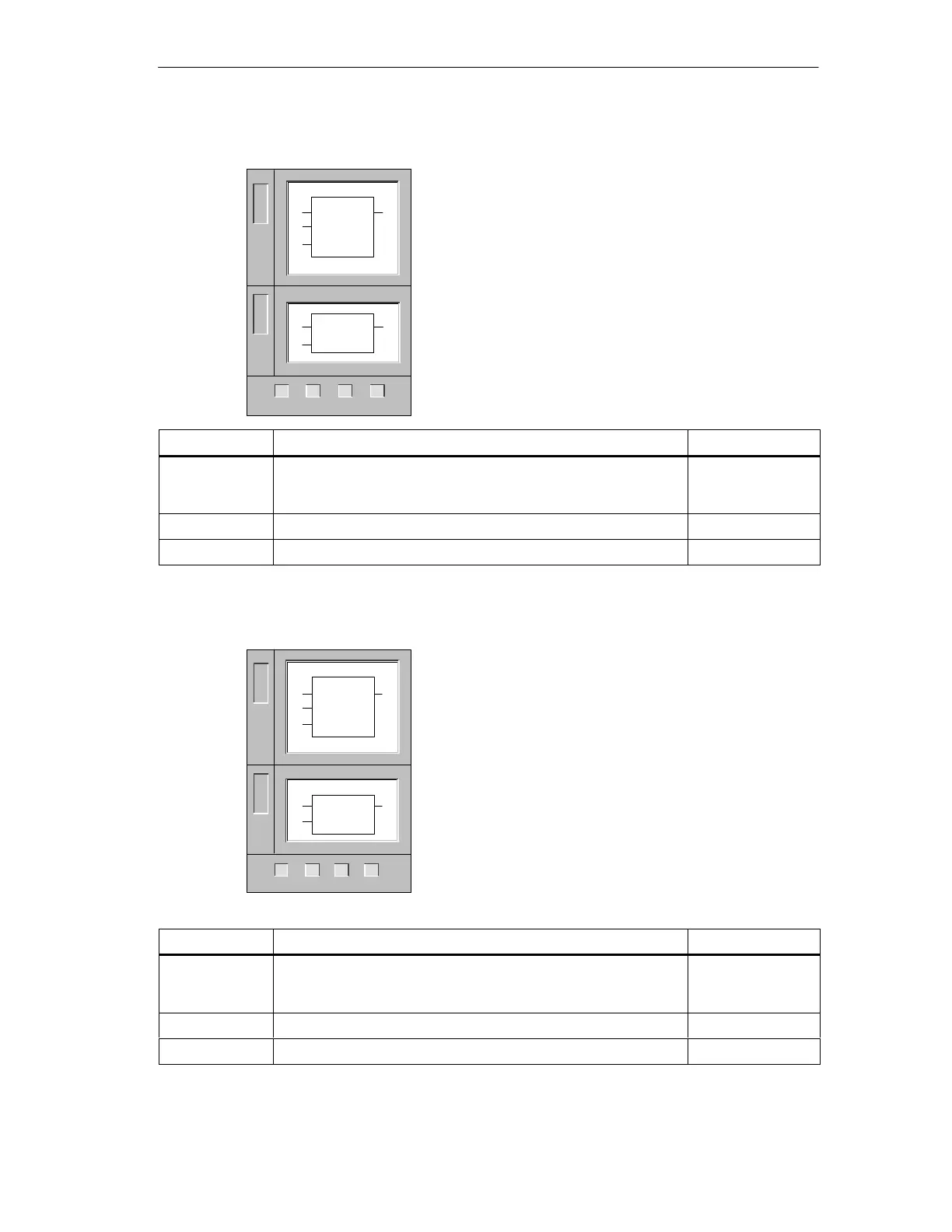

Compare Less Than
The Compare Less Than function compares IN1 less
than IN2 with the Boolean result placed in OUT. The
input and output data types can vary, but they must be of
the same type.
Byte comparisons are unsigned. Integer, double integer,
and real comparisons are signed. Time operations are
signed integers.
Inputs/Outputs Operands Data Types
Inputs
(LAD & FBD)
IB, QB, MB, SB, SMB, VB, LB, IW, QW, MW, SW, SMW, VW, LW,
T, C, AIW, ID, QD, MD, SD, SMD, VD, LD, HC, AC, Constant,
*VD, *AC, *LD
BYTE, INT, DINT,
REAL
OUT (LAD only) Power Flow BOOL
OUT (FBD only) I, Q, M, SM, V, S, L, Power Flow BOOL
Compare Less Than or Equal
The Compare Less Than or Equal function compares
IN1 less than or equal to IN2 with the Boolean result
placed in OUT. The input and output data types can vary,
but they must be of the same type.
Byte comparisons are unsigned. Integer, double integer,
and real comparisons are signed. Time operations are
signed integers.
Inputs/Outputs Operands Data Types
Inputs
(LAD & FBD)
IB, QB, MB, SB, SMB, VB, LB, IW, QW, MW, SW, SMW, VW, LW,
T, C, AIW, ID, QD, MD, SD, SMD, VD, LD, HC, AC, Constant,
*VD, *AC, *LD
BYTE, INT, DINT,
REAL
OUT (LAD only) Power Flow BOOL
OUT (FBD only) I, Q, M, SM, V, S, L, Power Flow BOOL
