A.16 I/O Expansion Cable
Order Number: 6ES7 290-6AA20-0XA0
General Features
Cable length 0.8 m (32 in.)
Weight 25 g (.88 lb.)
Connector type 10 pin ribbon
Typical Installation of the I/O Expansion Cable
Female Connector
Male Connector

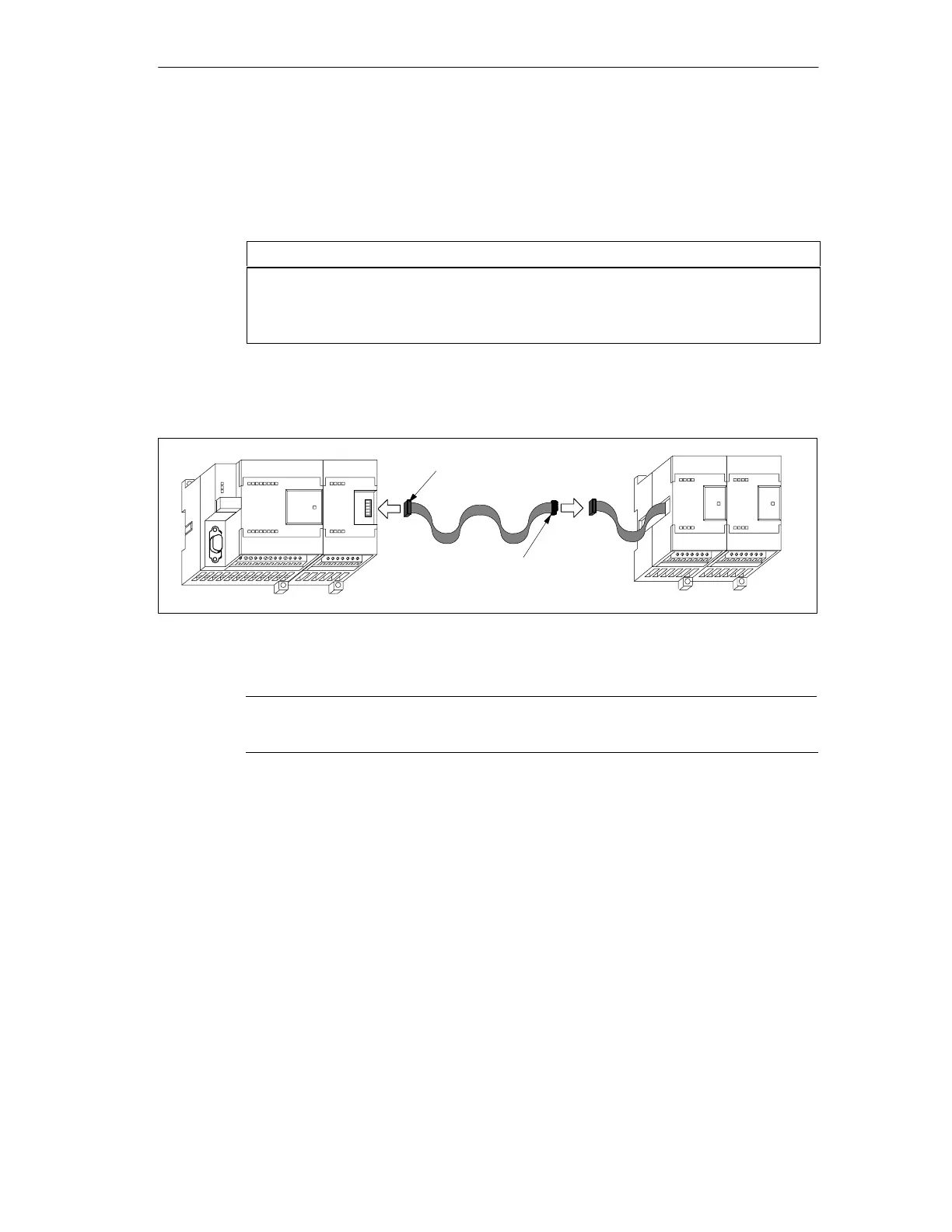

Figure A-41 Typical Installation of an I/O Expansion Cable
Note
Only one expansion cable should be included in a CPU/expansion module chain.
