S7-200 Specifications
A-93
S7-200 Programmable Controller System Manual
A5E00066097-02
A.18 Input Simulators
Table A-42 Specifications for Input Simulators
Order Number
8 Position Simulator
6ES7 274-1XF00-0XA0
14 Position Simulator
6ES7 274-1XH00-0XA0
24 Position Simulator
6ES7 274-1XK00-0XA0
Size
(L x W x D)
61 x 36 x 22 mm
(2.4 x 1.4 x 0.85 in.)
91 x 36 x 22 mm
(3.6 x 1.4 x 0.85 in.)
147 x 36 x 25 mm
(3.6 x 1.4 x 0.85 in.)
Weight 0.02 Kg (0.04 lb.) 0.03 Kg (0.06 lb.) 0.04 Kg (0.08 lb.)
Points 8 14 24
User Installation
1
0
DC 24V
INPUTS
DC
SENSOR
SUPPLY
23 mm
(0.9 in.)
1M 0.0 0.1 0.2 0.3 2M 0.4 0.5 M0.6 0.7 L+

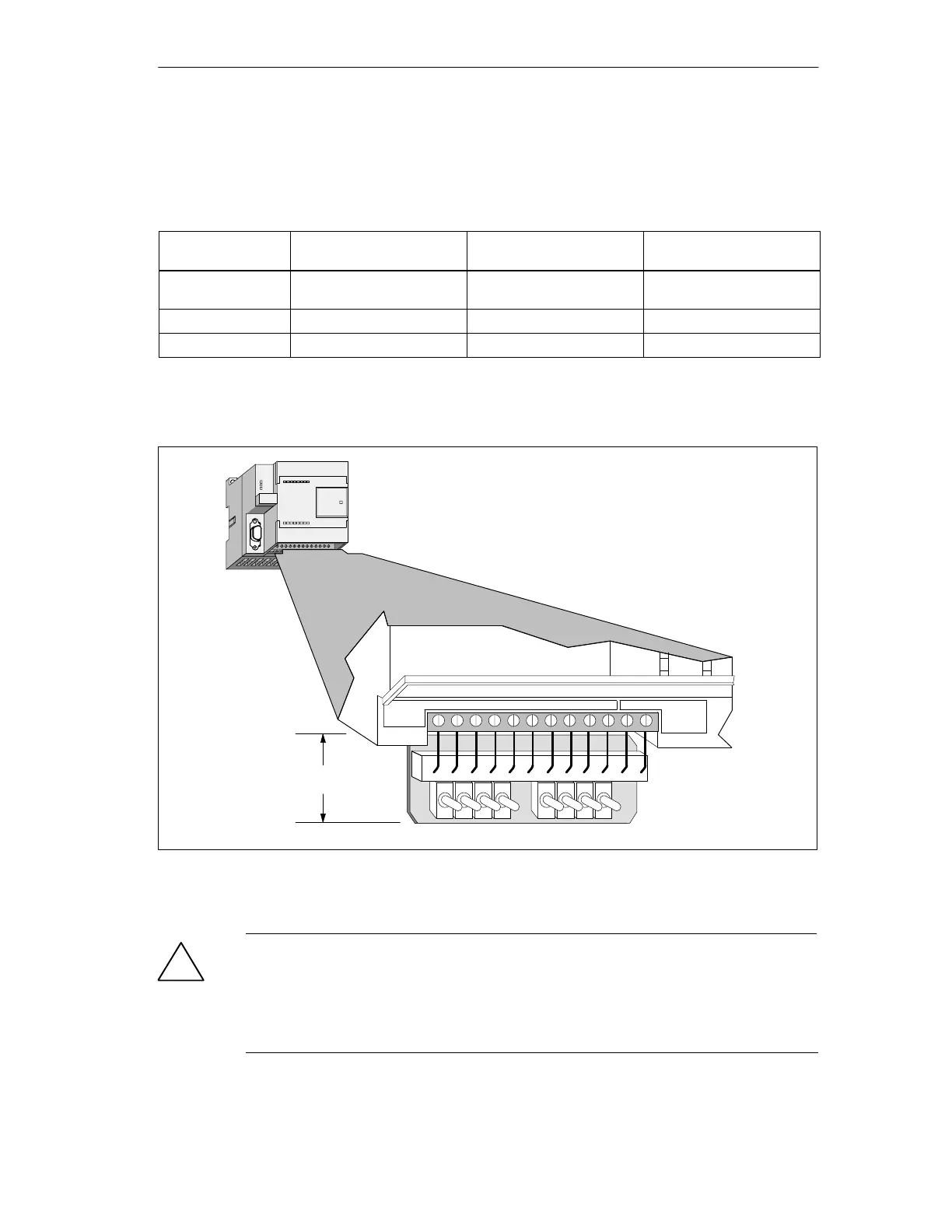

Figure A-43 Installation of the Input Simulator
!
Caution
These input simulators are not approved for use in Class I DIV 2 or Class I Zone 2
hazardous locations. The switches present a potential spark hazard.
Do not use input simulators in Class I DIV 2 or Class I Zone 2 hazardous
locations.
