A.14 CP 243-2 Communications Processor
Description
Order Number
CP 243-2 Communications Processor
6GK7 243-2AX00-0XA0
AS-Interface master profile M0/M1
Interfaces
- Allocation of address area in PLC
- Connection to AS-Interface
Corresponds to 2 I/O modules (DI/8 DO8 and AI/8/AQ8)
Terminal connection
Power consumption
- via AS-Interface
- via backplane bus
100 mA, max.
220 mA at DC 5 V, typically
Power loss 2 W, approximately
Permissible environmental conditions
- Operating temperature
horizontal mounting
vertical mounting
- Transport/storage temperature
- Relative humidity
0° C to +55° C
0° C to +45° C
-40° C to +70° C
95% at +25° C
Construction
- Module format
- Dimensions (W x H x D) in mm
- Weight
S7-22x expansion module
71.2 x 80 x 62
250 g, approximately
CPU243-2
SET
DISPLAY

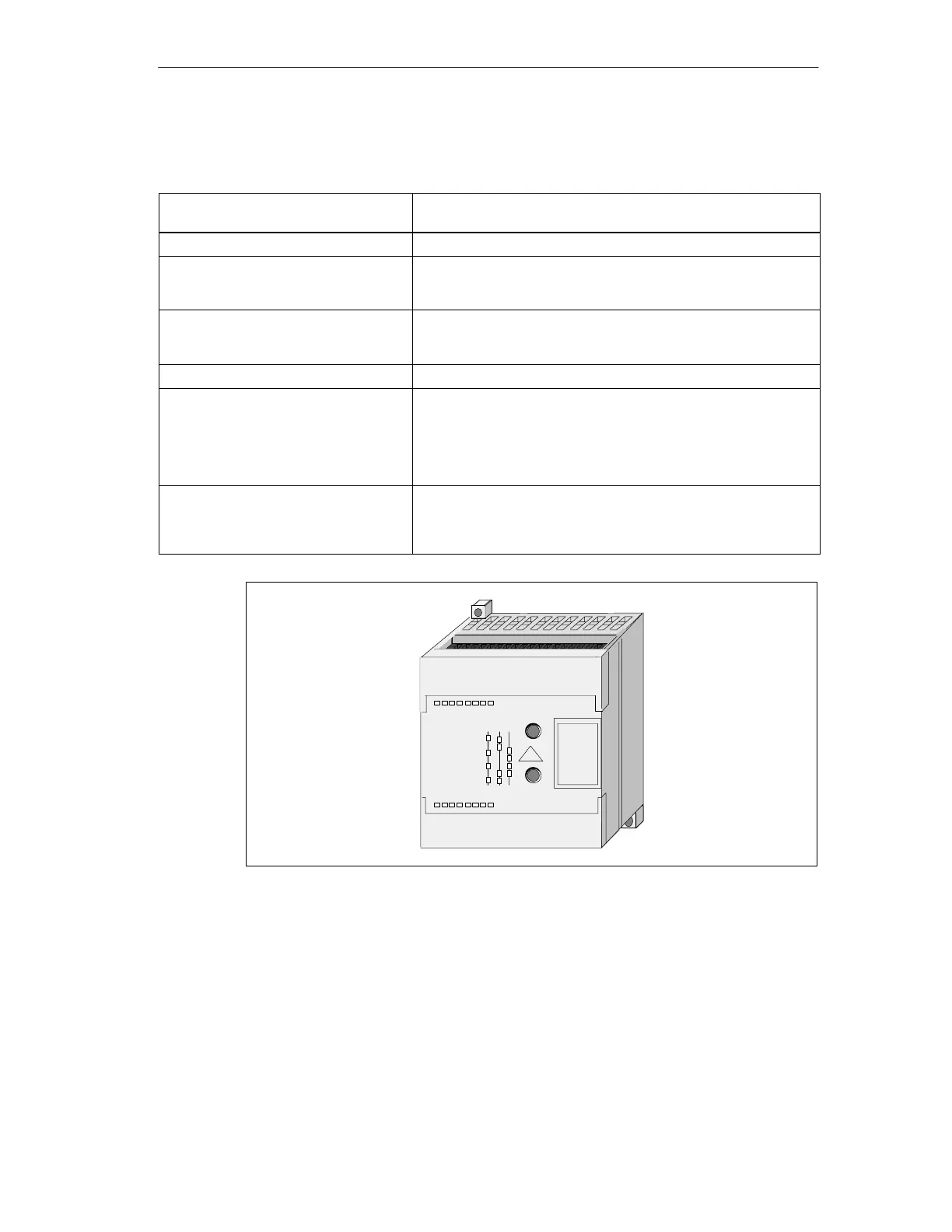

Figure A-40 CP 243-2 Communications Processor
