Siemens SIMATIC S7-200 - Temperature Ranges ( C) and Accuracy for Thermocouple Types

S7-200 Specifications
A-75
S7-200 Programmable Controller System Manual
A5E00066097-02

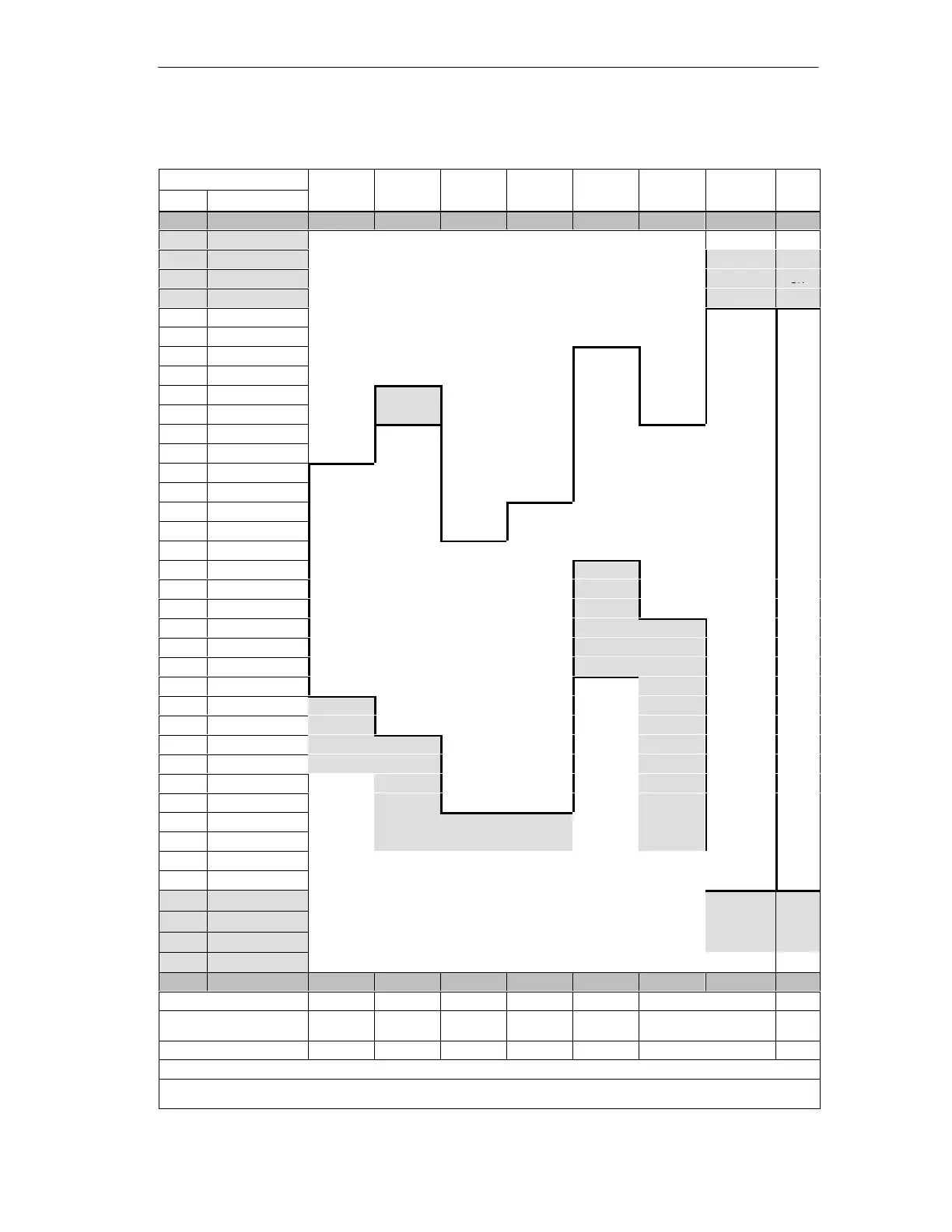

Table A-28 Temperature Ranges (°C) and Accuracy for Thermocouple Types
Data Word (1 digit = 0.1C)
Type J
Type K
Type T
Type E
Type R S
Type N
80mV
Dec Hex
Type J Type K Type T Type E Type R, S Type N 80mV
32767 7FFF >1200.0 C >1372.0 C >400.0 C >1000.0C >1768.0C >1300.0C >94.071mV OF
↑ ↑ ↑ ↑
32511 7EFF
94 071mV
: :
94.071mV
OR
27649 6C01
80.0029mV
OR
27648 6C00 ↑ 80mV
: :
17680 4510 ↑ 1768.0C
: :
NR
13720 3598 1372.0C ↑
NR
:
:
overrange
13000 32C8 ↑ 1300.0C 1300.0C
: :
12000 2EE0 1200.0C ↑
: :
10000 2710 ↑ 1000.0C
: :
4000 0FA0 400.0C 400.0C
: :
1 0001 0.1C 0.1C 0.1C 0.1C 0.1C 0.1C 0.0029mV
0 0000 0.0C 0.0C 0.0C 0.0C 0.0C 0.0C 0.0mV
-1 FFFF -0.1C -0.1C -0.1C -0.1C -0.1C -0.1C -0.0029mV
: : underrange
-500 FE0C -50.0C
-1500 FA24 -150.0C 
: :
-2000 F830 underrange -200.0C
: :
-2100 F7CC -210.0C
: : underrange
-2550 F60A -255.0C -255.0C
: : underrange underrange
-2700 F574  -270.0C -270.0C -270.0C -270.0C
: :
-27648 9400  -80.mV
-27649 93FF
-80.0029mV
: :
-32512 8100
-94.071mV
UR
   
-32768 8000 <-210.0C <-270.0C <-270.0C <-270.0C <-50.0C <-270.0C <-94.071mV UF
Accuracy over full span 0.1% 0.3% 0.6% 0.1% 0.6% 0.1% 0.1%
Accuracy (nominal range without
cold junction)
1.5C 1.7C 1.4C 1.3C 3.7C 1.6C 0.10%
Cold junction error 1.5C 1.5C 1.5C 1.5C 1.5C 1.5C N/A
*OF = Overflow; OR = Overrange; NR = Nominal range; UR = Underrange; UF = Underflow
↑ indicates that all analog values greater than this and below the open wire threshold report the overflow data value, 32767 (0x7FFF).
 indicates that all analog values less than this and greater than the open wire threshold report the underflow data value, -32768 (0x8000).
