Siemens SINUMERIK 802D sl Instruction Manual

10.1 Creating a drive project OFFLINE
Creating a Drive Project
10-130
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
Note
To call up this tutorial, choose Sinamics tutorial.
Once you have inserted the drive unit, the Preview window shows you how the comple-
ted project will appear in the STARTER project navigator (see Fig. 10-11).
5

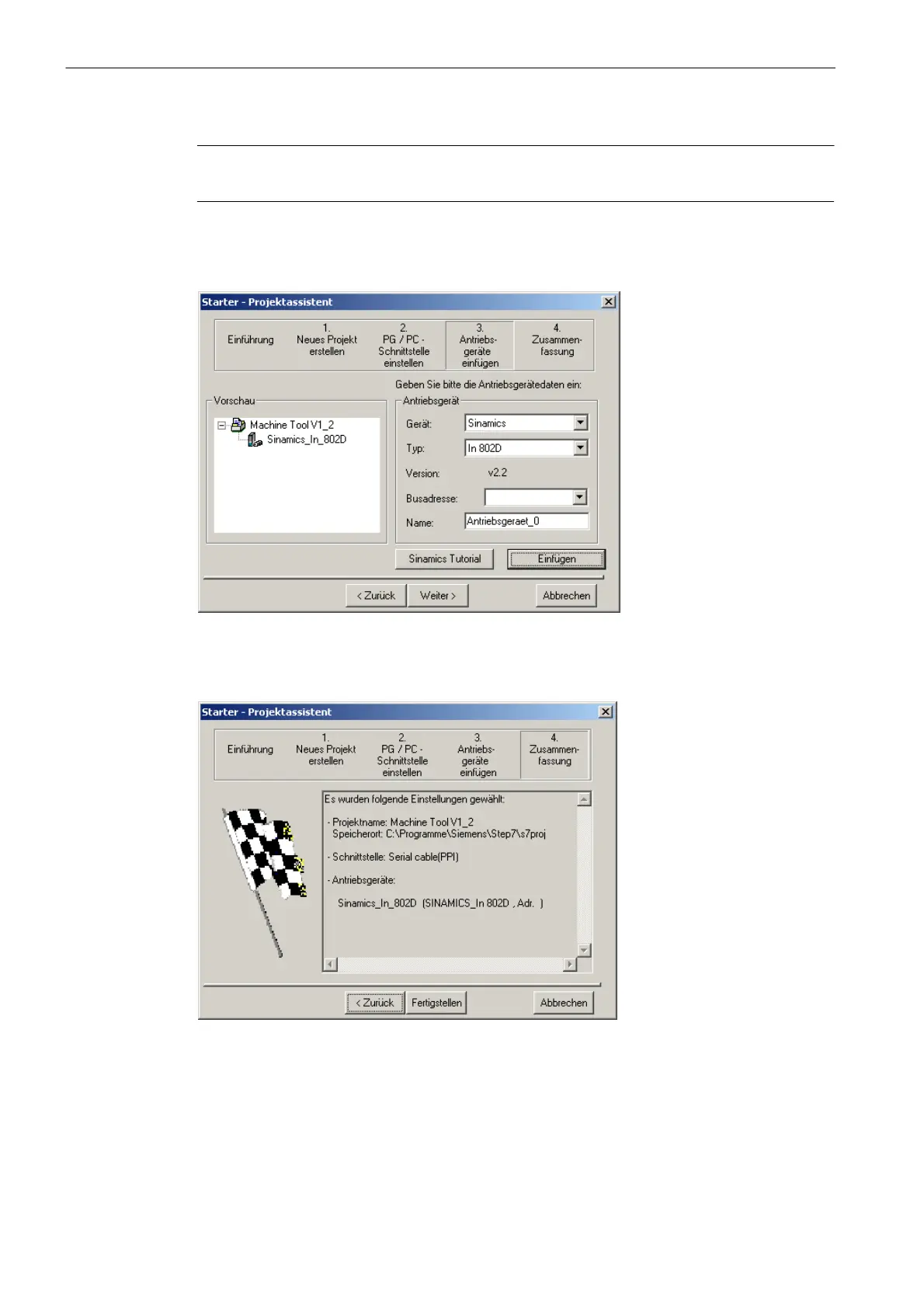

Fig. 10-11 “Machine Tool V1_2” preview
10.Click Continue >.
5
Fig. 10-12 Summary
11.To complete the process of creating a new project for a drive unit, choose Complete.
