Creating a Drive Project
10.1 Creating a drive project OFFLINE
10-129
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
5

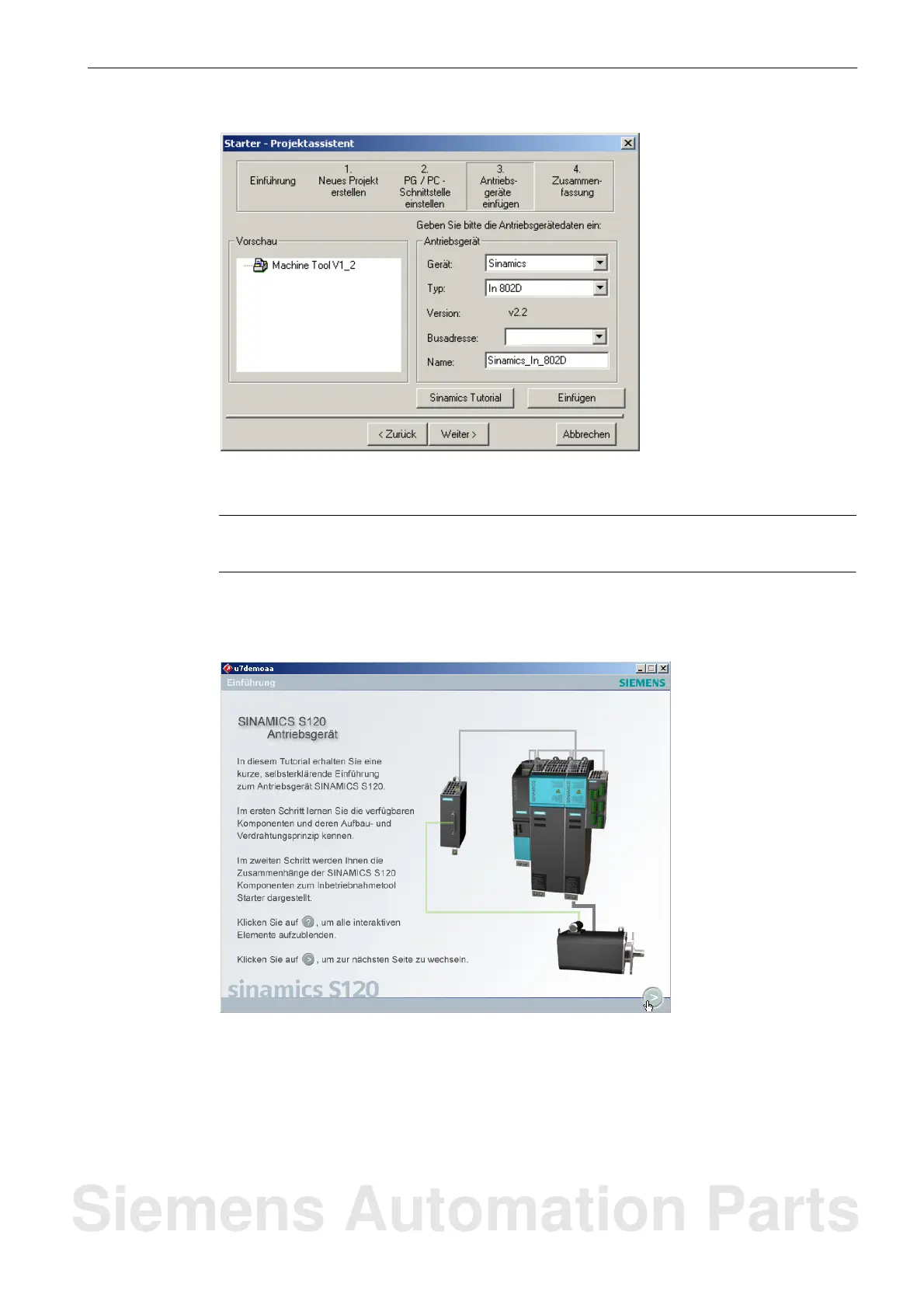

Fig. 10-9 Inserting the drive unit
Note
To insert other drives in the project, choose Insert.
The first time you choose Insert, the system displays a tutorial featuring an introduction
to the SINAMICS S120 drive unit (see Fig. 10-10).
Fig. 10-10 Introduction
9. Work your way through the introduction by choosing >, or exit by choosing X.
