Creating a Drive Project
10.1 Creating a drive project OFFLINE
10-133
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
Note
If you are using an uncontrolled SINAMICS infeed, click No and then Continue >.

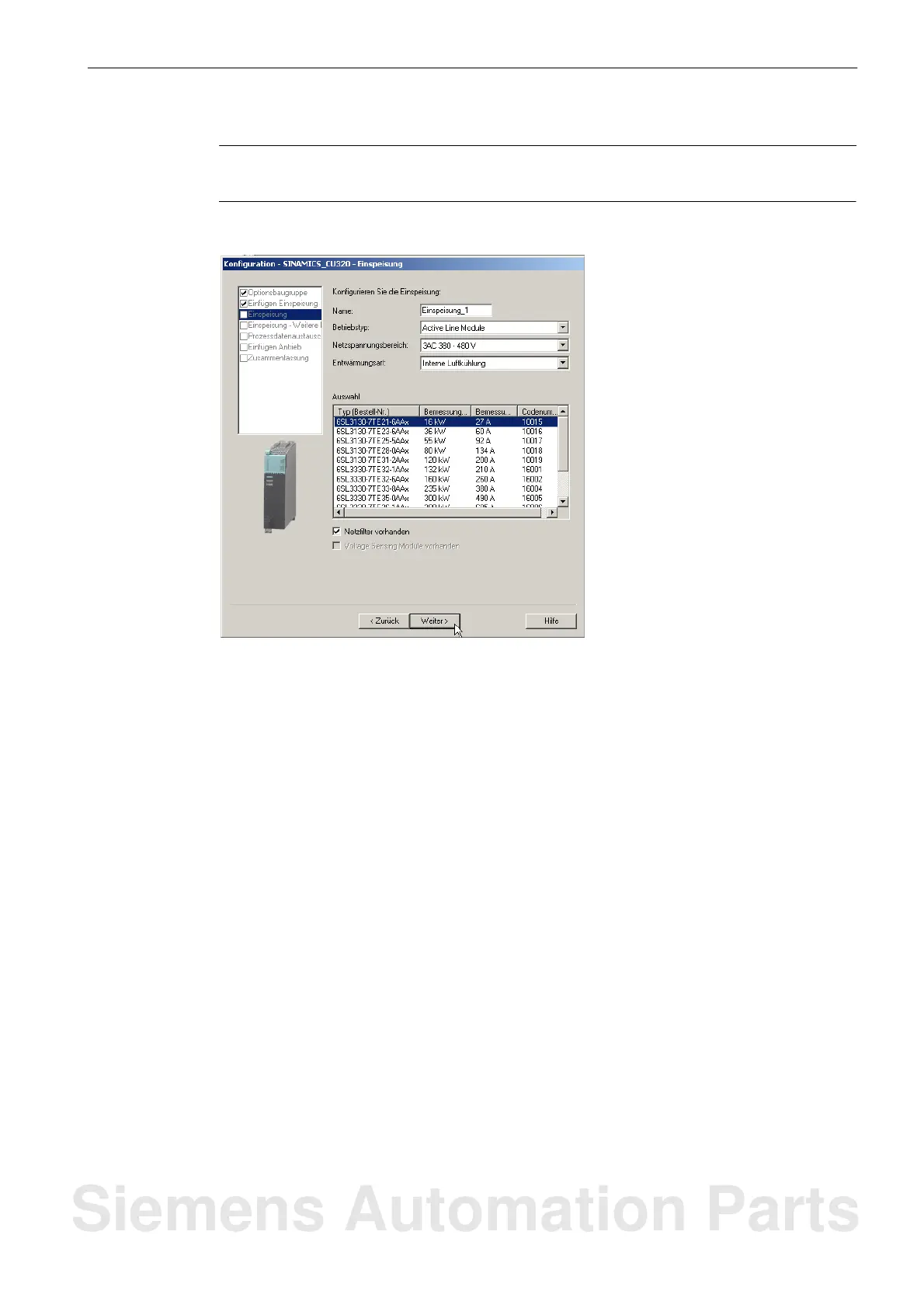

Fig. 10-16 SINAMICS_CU320 configuration for the Active Line Module
4. First choose the appropriate Active Line Module from the Selection listbox according to
type (order no.) (see rating plate), assign a name (Supply_1), and click the Line filter
available field.
5. Click Continue > to select further data for the Active Line Module (infeed)
(see Fig. 10-17).
