10.1 Creating a drive project OFFLINE
Creating a Drive Project
10-136
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0

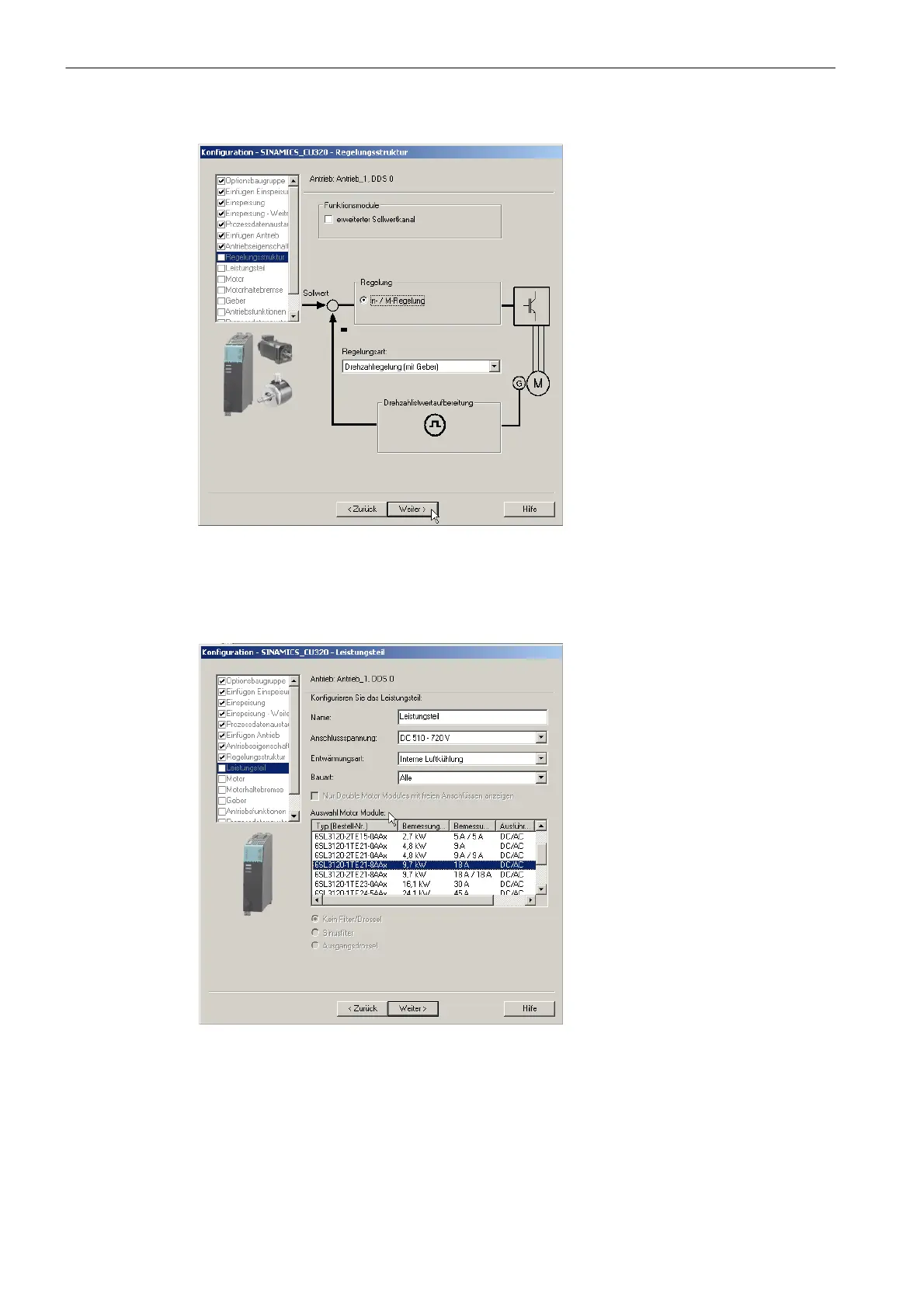

Fig. 10-21 Control structure
12.Choose the “Control type” as shown in Fig. 10-21 (the default setting can be left as it is)
and click Continue >.
Fig. 10-22 Configuring the motor module
13.Select the appropriate motor module from the Motor module selection list box accor-
ding to type (order no.) (see rating plate) and assign a name (Power unit).
