10.2 Operating the control panel in STARTER (with the motor rotating)
Creating a Drive Project
10-142
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
5. Differences were detected during the ONLINE/OFFLINE comparison again. Click Load
to PG ––> (see screenshot below).

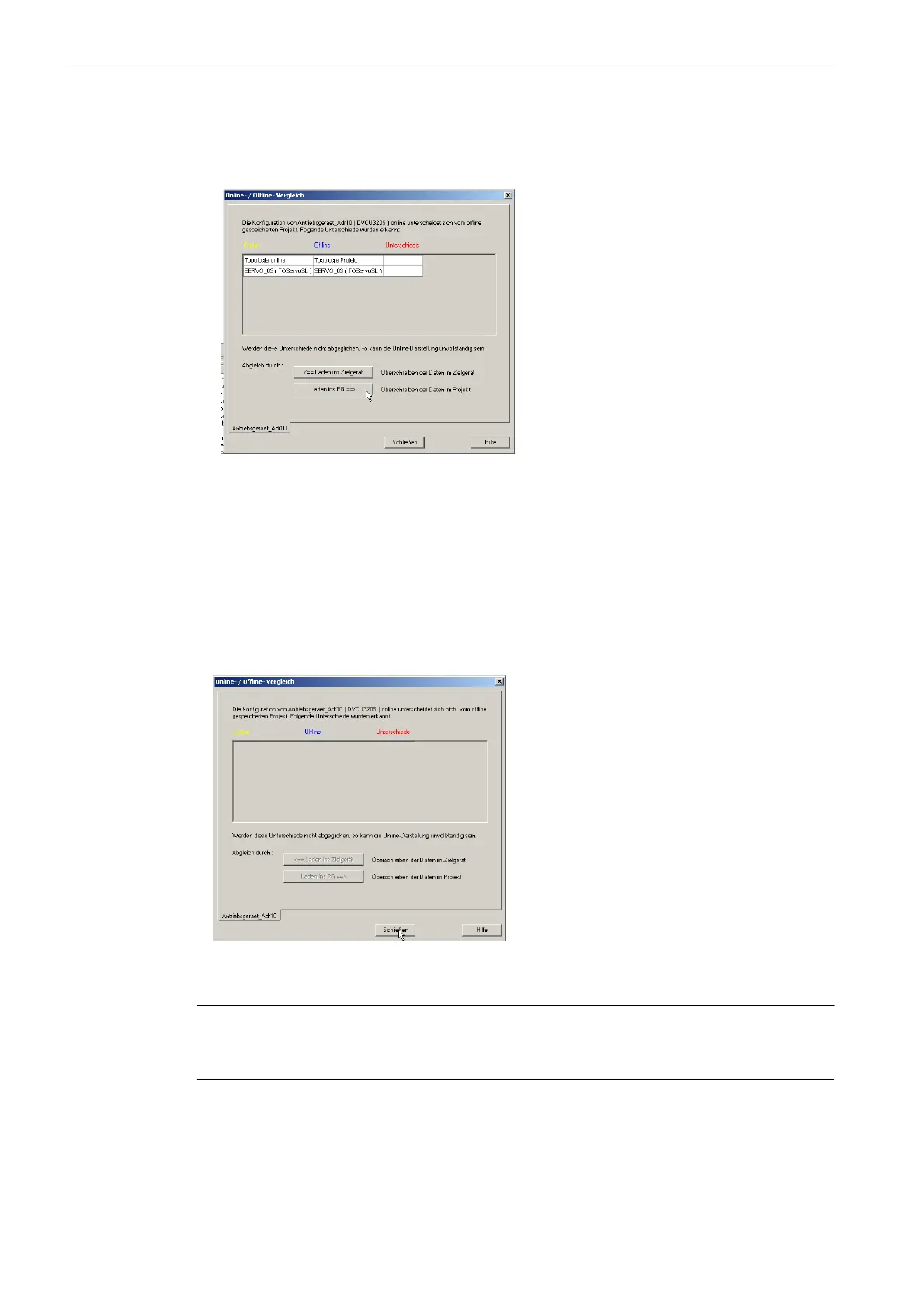

Fig. 10-30 ONLINE/OFFLINE comparison, loading into PG
6. You will load the newly created data from the drive unit into the PG. Click the following
menu items one after the other:
– When the system asks “Are you sure?”, click Yes. The system now starts loading the
data.
– When the system informs you that the data was successfully loaded into the PG, click
OK.
7. No further discrepancies are displayed in the ONLINE/OFFLINE comparison dialog box.
Click Close (see screenshot below).
Fig. 10-31 ONLINE/OFFLINE comparison, closing
Note
When loading, observe the LEDs on the control unit. The control unit is ready for operation
when the LED RDY is continuously lit (green).
The hardware configuration of the drive unit is completed. To operate the control panel in
STARTER, proceed as follows:
