10.3 Creating a drive project ONLINE
Creating a Drive Project
10-152
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
Note
The system searches for drive units or, more precisely, control units; in other words, if more
than one control unit exists in the system, more than one drive unit is found.
The I/O components of the drive units (control unit, Active Line Module etc.) are not
displayed here; these are displayed when performing the step “Load drive configuration into
PG/PC”.

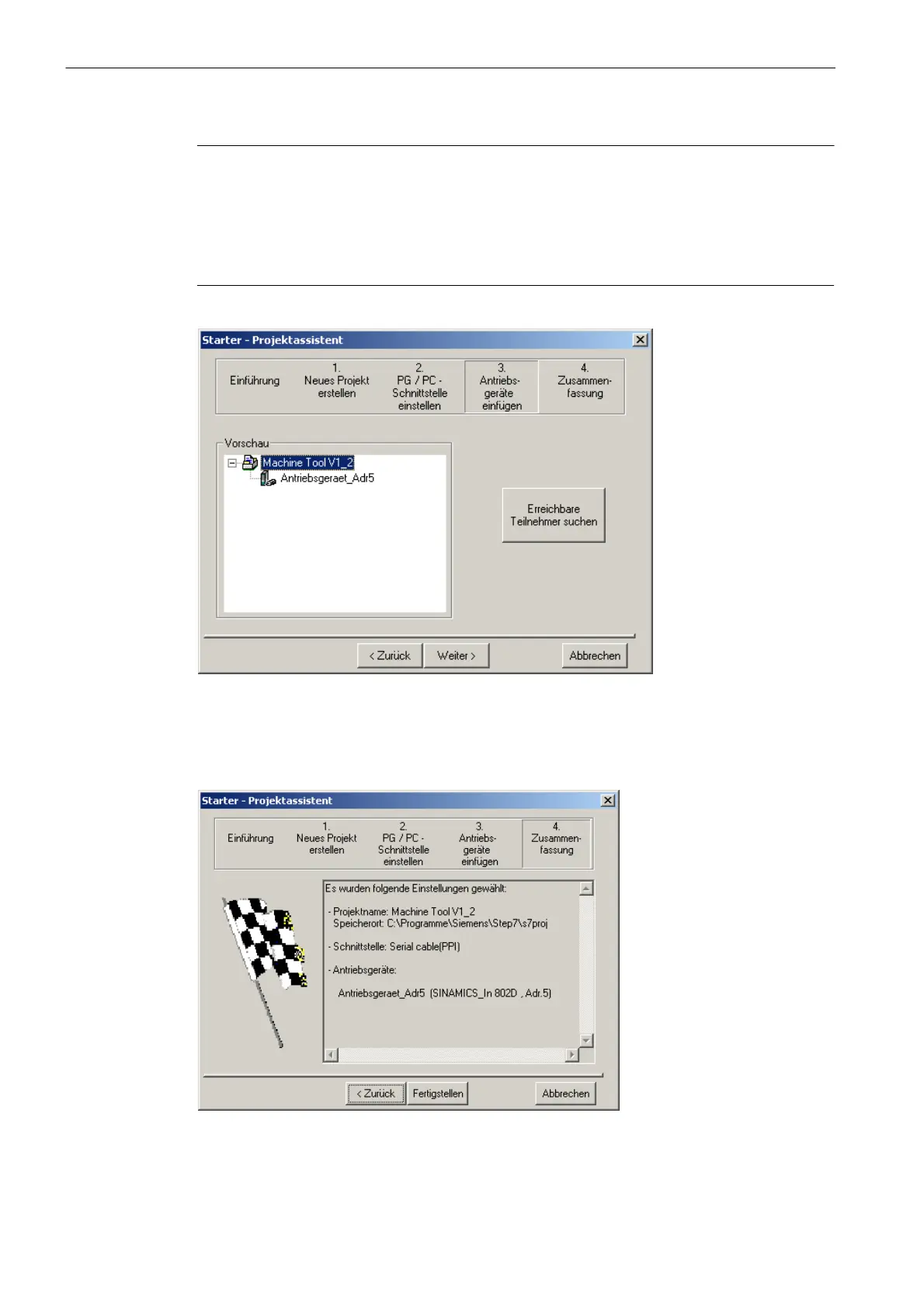

Fig. 10-47 Inserted drive unit
6. Click Continue >.
The Project Wizard will list a project summary (see Fig. 10-48)
Fig. 10-48 Summary
