Siemens SINUMERIK 802D sl Instruction Manual

Interfaces
4.2 MCPA module interfaces
4-31
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
Connector pin assignment (analog output to the drive)
Designation: X701
Type: 9-pin D-Sub terminal strip

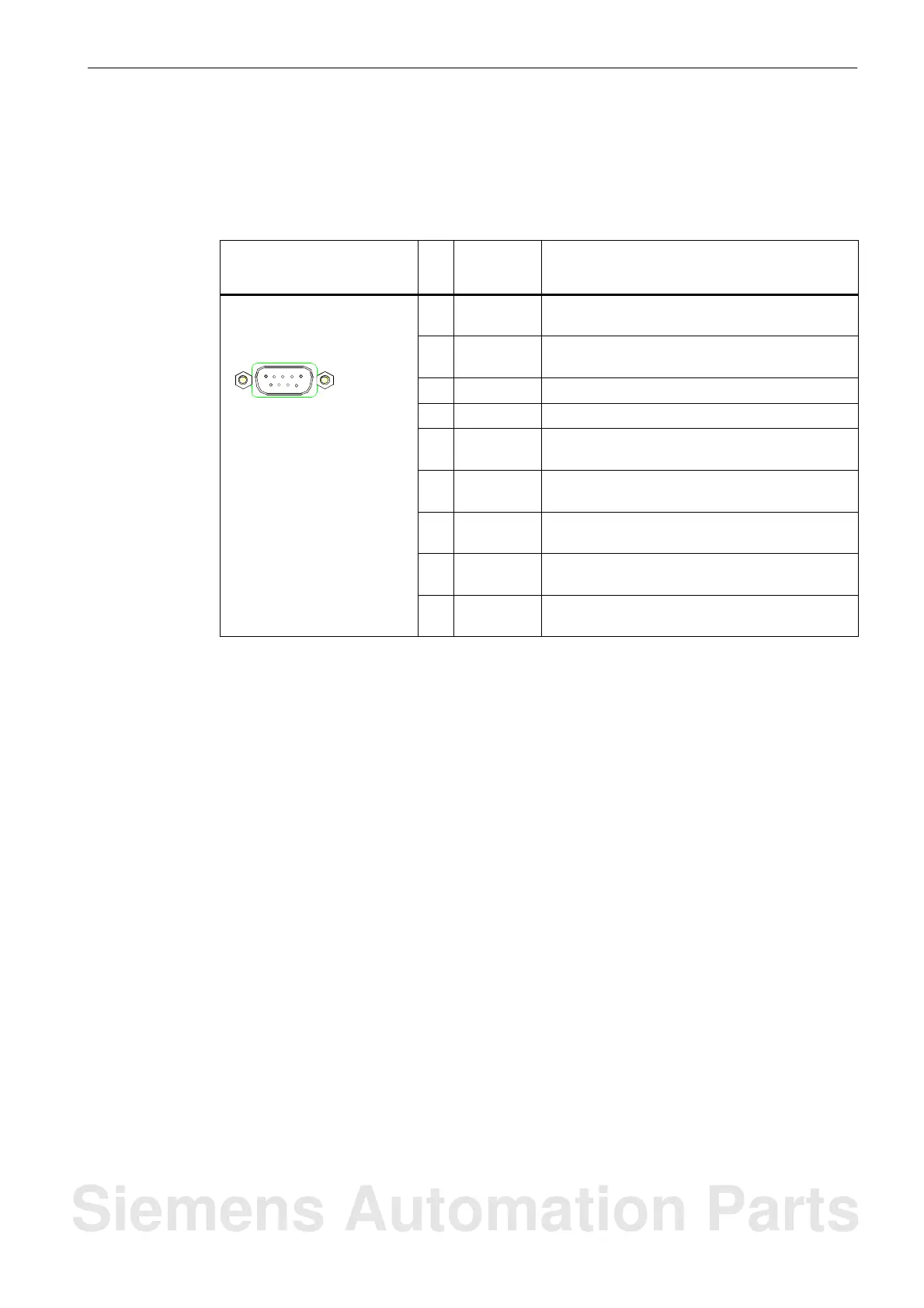

Table 4-10 Pin assignment of connector X701
Schematic view of the female
connector, mounting position
and labeling
Pin Name Description
X8
RS232
1 Analog
OUT
Analog output with signal level $10 V
X8
1
2 not
assigned
–
3 Uni-Dir2 Digital output for unipolar spindle +24 V
9
4 Uni-Dir2 Digital output for unipolar spindle +24 V
5 Enable 1 Analog drive enable (contact: electrically isolated
n.o. contact)
6 Analog
OUT
Analog output 0 V Reference signal
7 not
assigned
–
8 not
assigned
–
9 Enable 2 Analog drive enable (contact: electrically isolated
n.o. contact)
