Dimension Drawings

5.3 Dimension drawings and drilling patterns for the NC full keyboard

5-47

SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition

6FC5 397-0CP10-1BA0

Drilling pattern for the NC full keyboard (installed beneath the PCU)

290

76.5

M4 (6x)

153

158

0.5

5 (2x)

142.5

285

283.4

1.6

1) M4 rivet-down, insert nut or M4 extruded hole (8x)

2) Drill holes for fixing the position ∅ 5 mm (2x)

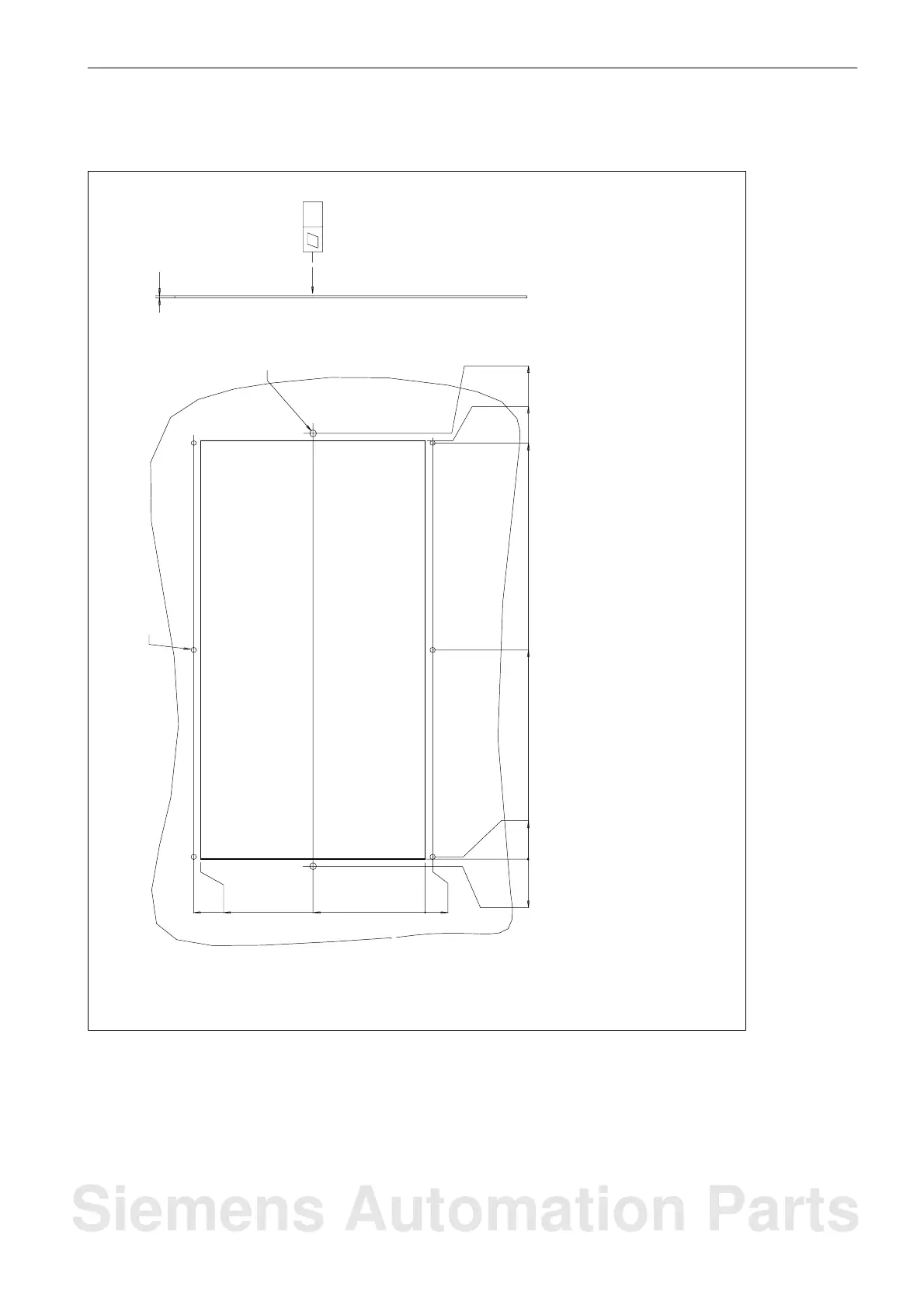

Fig. 5-8 Drilling pattern for the NC full keyboard (installed beneath the PCU)
