Siemens SINUMERIK 802D sl User Manual

Part programming
7.4 Free contour programming
Surface grinding
108 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
The sequence of individual actions required to program the contour are listed in the table
below.

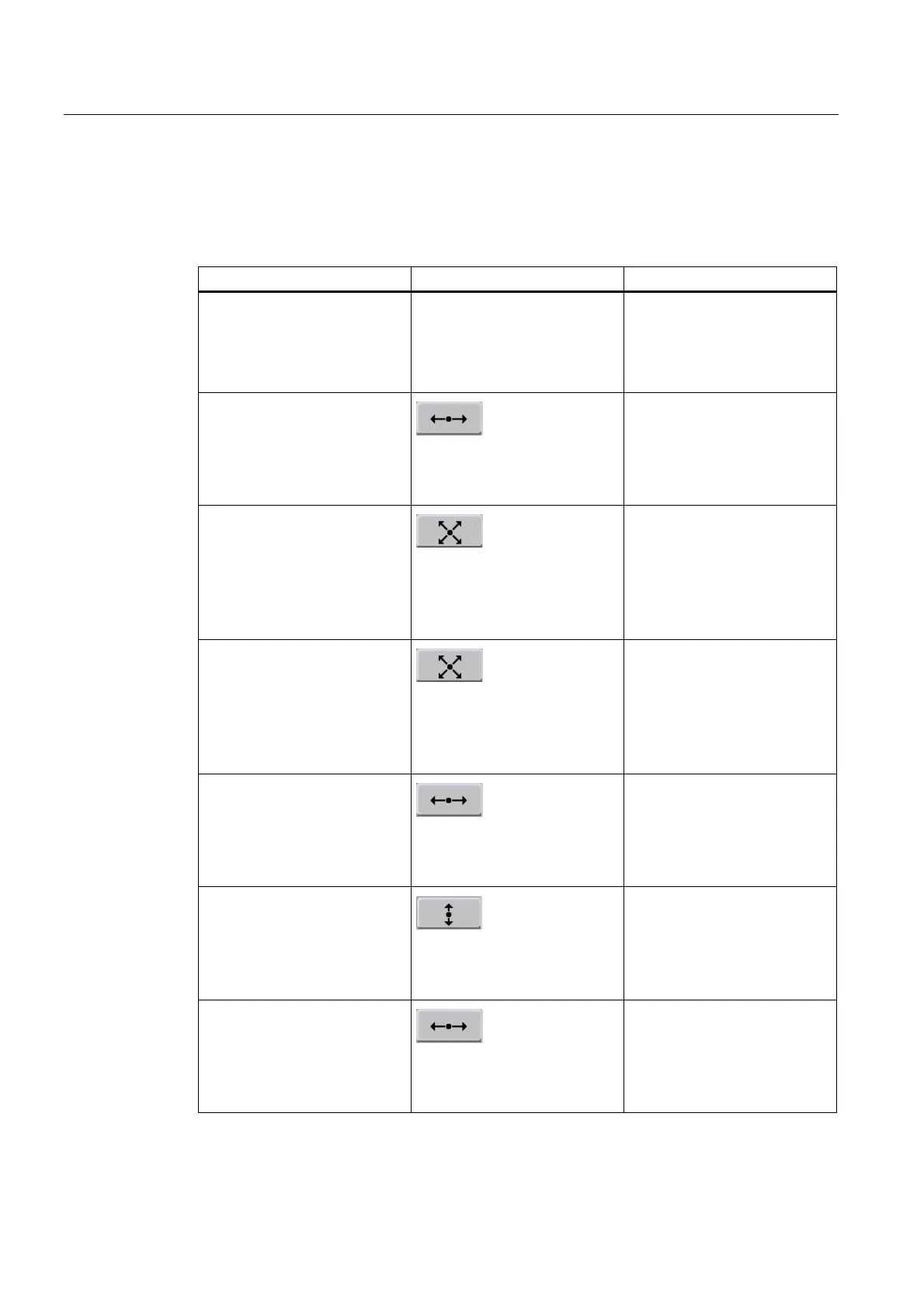

Table 7- 1 Programming example, surface grinding
Operating step Softkey Parameter
1 "Contour"
"Accept element"
Entering the start point:
Plane selection: G17
Start point:
X: 100
Y: 0
2
"Accept element"
Enter parameters for "Straight
horizontal line" element:
X: 0 abs
Transition to following element:
RND: 20
3
"Accept element"
Enter parameters for "Straight
line in any direction" element:
X: -100 abs
Y: 50 abs
Transition to following element:
RND: 30
3
"Accept element"
Enter parameters for "Straight
line in any direction" element:
X: -200 abs
Y: 0 abs
Transition to following element:
RND: 20
4
"Accept element"
Enter parameters for "Straight
horizontal line" element:
Z: 50 abs
Transition to following element:
RND: 5
5
"Accept element"
Enter parameters for "Straight
vertical line" element:
X: 0 abs
Transition to following element:
RND: 5
6
"Accept element"
"Accept"
Enter parameters for "Straight
horizontal line" element:
X: -300 abs
RND: 0
